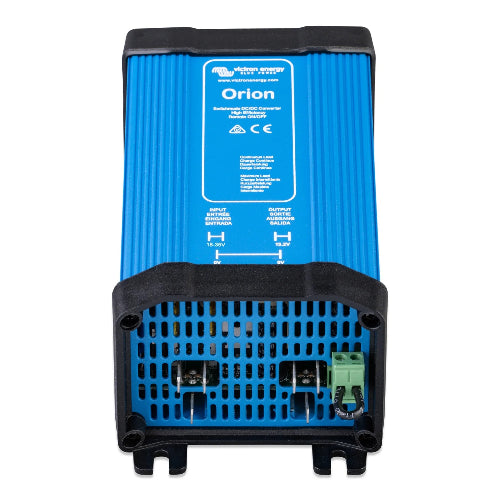

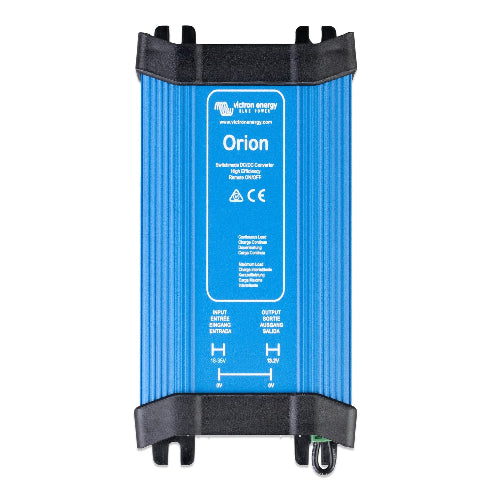

Victron Energy Orion 24/12-60 DC-DC Converter IP20  - ORI241260020

The Victron Energy ORI241260020 Orion 24/12-60 is a high-power, non-isolated DC-DC converter designed to supply regulated 12V DC power from a nominal 24V electrical system. It is well suited for installations that require substantial 12V auxiliary power while operating from a higher-voltage battery or DC supply.

The Orion 24/12-60 operates from an 18–35V DC input and provides a factory-set 13.2V output, with 60A continuous output current and up to 70A maximum output current. It also features temperature-controlled fan-assisted cooling and remote on/off functionality. Victron identifies ORI241260020 specifically as the Orion 24/12-60 model in its high-power non-isolated converter range.

Key Technology

• 24V-to-12V DC Conversion
  Designed to convert power from a nominal 24V DC electrical system into regulated 12V-class power for compatible auxiliary equipment and DC loads.

• High-Current Output
  Provides 60A continuous output capability for applications requiring substantial power from the lower-voltage DC circuit.

• Fixed Regulated Output
  The output is factory set to 13.2V, providing a regulated DC supply without requiring output-voltage adjustment.

• 95% Efficiency
  High conversion efficiency helps minimize energy losses while stepping down voltage from the input electrical system.

• Temperature-Controlled Fan Cooling
  Fan-assisted cooling automatically supports thermal management when operating under demanding electrical loads.

• Remote On/Off Control
  The remote on/off connection allows the converter to be controlled using a suitable low-power switch or engine run/stop signal without requiring a high-current switch in the primary input wiring.

• Non-Isolated Architecture
  The input and output are not galvanically isolated, making the converter appropriate for installations where electrical isolation between the two DC circuits is not required.

Best Uses

• 24V-to-12V Auxiliary Power Systems
  Ideal for supplying compatible 12V equipment from a nominal 24V battery bank or DC electrical system.

• High-Current 12V Loads
  Suitable for applications requiring significant current capacity for compatible electronics, controls, lighting, and other DC equipment.

• Vehicle & Mobile Electrical Systems
  Useful in appropriately designed DC systems where 12V auxiliary equipment must operate from an existing 24V electrical architecture.

• Remote-Controlled DC Equipment
  The remote on/off interface is useful when converter operation needs to follow an external low-power switch or compatible engine run/stop control.

• Continuous DC Power Conversion
  Suitable for systems requiring dependable regulated lower-voltage power from a higher-voltage DC source.

Product Specifications

High-Power 24V-to-12V DC Conversion

The Victron Energy ORI241260020 Orion 24/12-60 delivers high-current, regulated DC conversion with remote control and temperature-managed cooling. It provides a dependable solution for compatible systems that require substantial 12V-class auxiliary power from a nominal 24V DC source.
