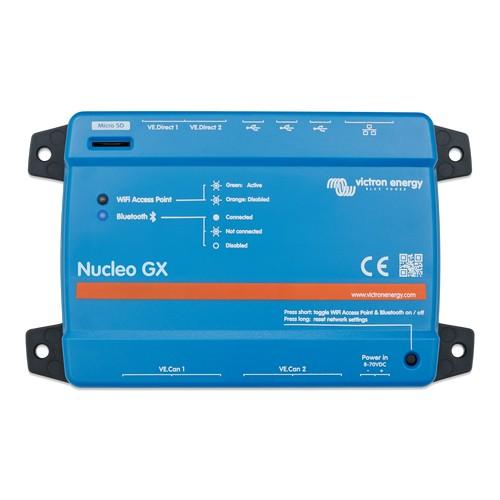

The Victron Energy Nucleo GX is a compact, high-performance communication centre designed for monitoring and controlling compatible Victron energy systems. It provides full GX functionality with remote access through VRM, LAN, or Wi-Fi and is particularly suited to VE.Can-based installations such as Victron RS systems.

The BPP900453100 operates from an 8–70V DC supply and provides isolated VE.Direct connectivity, isolated and non-isolated VE.Can interfaces, Ethernet, Wi-Fi, Bluetooth Smart, USB connectivity, and MicroSD support. A quad-core processor provides responsive system operation while supporting expansion through compatible USB accessories.

Key Technology

• High-Performance GX Platform
  Built around a quad-core processor to provide fast system response, reliable monitoring, and responsive control across compatible connected equipment.

• VE.Can System Integration
  Designed particularly for VE.Can-based installations and provides both an isolated VE.Can interface and a non-isolated VE.Can interface for compatible system equipment.

• VE.Direct Connectivity
  Provides two isolated VE.Direct ports and supports up to 25 connected VE.Direct devices in total when directly connected and USB-connected devices are considered together.

• VRM Remote Monitoring
  Supports Victron Remote Management for remote monitoring, control, configuration, alerts, diagnostics, and system-performance information.

• Built-In Ethernet & Wi-Fi
  Provides both Ethernet and Wi-Fi connectivity for local-network access and supported remote monitoring applications.

• Bluetooth Smart Configuration
  Built-in Bluetooth enables initial connection and networking configuration through the VictronConnect app. Bluetooth is intended for setup rather than direct connection to other Victron Smart products.

• USB Expansion
  Three USB-A host ports provide connectivity for supported accessories and allow additional functionality to be added to the Nucleo GX.

• MicroSD Support
  Includes a MicroSD card slot supporting SDHC cards up to 32GB.

• Flexible Local Access
  Remote Console can be accessed locally using an Android GX WiFi Display, the VictronConnect app, or a web browser.

Best Uses

• Victron RS Systems
  Well suited to VE.Can-based Victron installations, including compatible RS system equipment requiring centralized GX monitoring and control.

• Solar & Battery Storage Systems
  Provides centralized access to compatible battery state of charge, power consumption, PV production, generator information, mains information, and system-performance data.

• Off-Grid Energy Systems
  Suitable for installations requiring remote monitoring, configurable system control, alerts, diagnostics, and access to operating information.

• Remote Energy-System Management
  Ideal for installations where owners, installers, or service personnel require remote access through Victron VRM.

• Expandable GX Installations
  Useful where additional system functionality may be required through compatible USB accessories, including VE.Bus connectivity, relay and I/O expansion, or additional tank monitoring.

• Local Network Monitoring
  Supports local system access through LAN or the built-in Wi-Fi Access Point without requiring a dedicated integrated display.

Product Specifications

Compact GX Monitoring with High-Performance Connectivity

The Victron Energy Nucleo GX BPP900453100 provides a powerful communications platform for compatible Victron systems, combining quad-core processing, VE.Direct and VE.Can connectivity, Ethernet, Wi-Fi, Bluetooth, USB expansion, MicroSD support, and comprehensive VRM remote access. Its expandable architecture makes it a versatile choice for connected energy systems requiring centralized monitoring and control.
