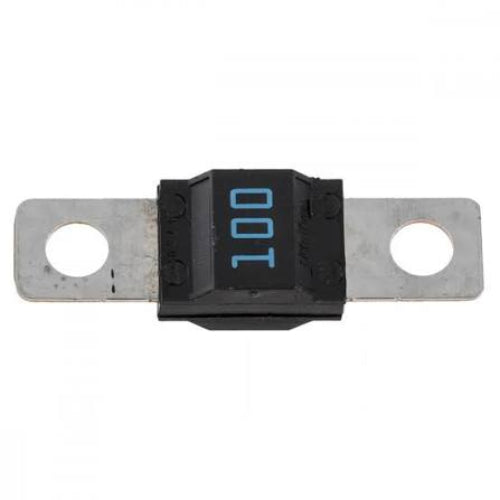

The Victron Energy CIP134100020 MIDI-Fuse is a compact 100A, 58V DC bolt-down fuse designed to provide overcurrent protection for compatible battery and DC electrical systems. Its MIDI-format construction offers a space-efficient circuit-protection solution for properly sized conductors and connected DC equipment.

Featuring an M6 bolt-down connection, the fuse is designed for secure installation in a compatible MIDI fuse holder. Its 58V DC rating supports appropriately designed low-voltage DC systems, including compatible nominal 12V, 24V, and 48V applications. Victron Energy identifies CIP134100020 as the 100A/58V-M6 model.

Package Quantity: Five (5) Victron Energy MIDI-Fuse 100A/58V-M6 fuses.

Key Technology

• 100A Current Rating
  Provides 100-amp overcurrent protection for compatible DC circuits when properly selected according to conductor ampacity, connected equipment, and system requirements.

• 58V DC Rating
  Rated for circuits operating at up to 58V DC, making it suitable for appropriately designed low-voltage battery and DC power systems.

• Compact MIDI Fuse Format
  Uses the MIDI bolt-down fuse format to provide high-current DC circuit protection in a compact form factor.

• M6 Bolt-Down Connection
  Features an M6 mounting interface for secure mechanical and electrical installation within a compatible MIDI fuse holder.

• Low Voltage Drop
  The 100A model is specified with an approximate 70 mV voltage drop, supporting efficient integration into properly designed DC circuits.

• Low Internal Resistance
  Specified with approximately 0.45 mΩ internal resistance, helping minimize resistive losses during normal operation.

• Replaceable Overcurrent Protection
  Provides a replaceable protective element designed to interrupt excessive current and help protect properly sized conductors and connected equipment.

• Compatible MIDI Fuse Holder Installation
  Designed for use with an appropriately rated MIDI fuse holder. Victron lists dedicated MIDI fuse-holder hardware within its DC distribution product range.

Best Uses

• Battery-Based DC Systems
  Suitable for overcurrent protection of properly sized conductors and connected equipment in compatible battery-powered electrical systems.

• Solar & Energy Storage Systems
  Can be incorporated into appropriately engineered solar charging, battery-storage, and DC distribution circuits where 100A protection is specified.

• 12V, 24V & Compatible 48V Systems
  The 58V DC rating supports a range of low-voltage DC applications provided the circuit's maximum voltage remains within the fuse rating.

• DC Distribution Systems
  Suitable for appropriately designed branch and distribution circuits where conductor sizing and connected equipment require a 100A fuse.

• Battery & Power Conversion Equipment
  Can provide appropriately sized protection for compatible battery, charging, inverter, converter, and other DC power circuits.

Product Specifications

Reliable 100A Protection for DC Power Systems

The Victron Energy CIP134100020 MIDI-Fuse 100A/58V-M6 provides compact, replaceable overcurrent protection for compatible DC electrical systems. Its 100A rating, 58V DC capability, M6 bolt-down connection, and low-resistance electrical characteristics make it a practical protection component for appropriately engineered battery, solar, charging, and DC distribution circuits.
