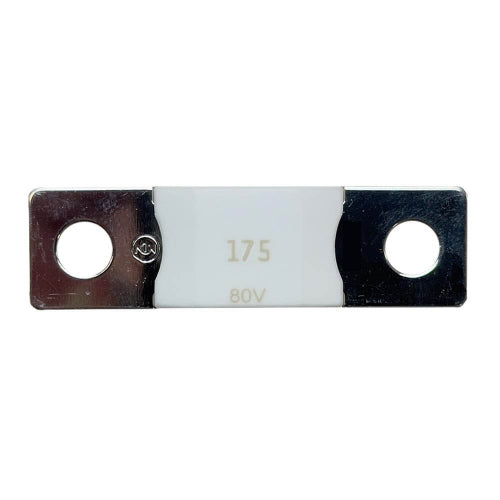

The Victron Energy CIP138175020 MEGA-Fuse is a high-current 175A, 80V DC bolt-down fuse designed to provide overcurrent protection for compatible battery and DC electrical systems. Its MEGA-format construction makes it suitable for higher-current DC circuits where robust, replaceable fuse protection is required.

Featuring M8 terminals, the fuse is designed for secure installation in a compatible MEGA fuse holder. The 80V DC rating supports appropriately designed low-voltage battery and DC power systems, including compatible 12V, 24V, and 48V applications. Victron Energy's current product documentation confirms CIP138175020 as the MEGA-fuse 175A/80V model.

Package Quantity: Five (5) Victron Energy MEGA-Fuse 175A/80V fuses.

Key Technology

• 175A Current Rating
  Provides 175-amp overcurrent protection for compatible high-current DC circuits when correctly selected according to conductor ampacity and connected equipment requirements.

• 80V DC Rating
  Rated for DC circuits operating at up to 80V DC, providing additional voltage capability for appropriately designed battery and DC power systems.

• MEGA Fuse Format
  Uses the high-current MEGA bolt-down fuse format commonly used for protecting battery cables and other high-current DC distribution circuits.

• M8 Bolt-Down Terminals
  Features M8 terminals for secure mechanical and electrical installation within a compatible MEGA fuse holder.

• 110mV Voltage Drop
  The 175A model is specified with an approximate 110mV voltage drop at its rated operating conditions.

• Low Electrical Impedance
  Specified with approximately 0.282mΩ impedance, supporting efficient integration into appropriately designed high-current DC circuits.

• Replaceable High-Current Protection
  Provides a replaceable overcurrent-protection element designed to interrupt excessive current and help protect properly sized conductors and connected DC equipment.

• MEGA Fuse Holder Compatibility
  Compatible with appropriately rated MEGA fuse holders, including Victron's MEGA fuse-holder options.

Best Uses

• Battery Bank Protection
  Suitable for protecting high-current battery cables in appropriately designed battery-based DC electrical systems.

• Solar & Energy Storage Systems
  Can be incorporated into compatible solar and battery-storage DC circuits where a 175A MEGA fuse is specified.

• 12V, 24V & 48V Systems
  The 80V DC rating supports properly designed nominal 12V, 24V, and 48V battery applications while providing sufficient voltage rating for compatible equipment.

• Inverter & Inverter/Charger Circuits
  Suitable for appropriately sized high-current DC connections associated with compatible inverters and inverter/chargers.

• DC Distribution Systems
  Provides overcurrent protection for compatible high-current DC distribution circuits where conductor sizing and equipment requirements call for a 175A fuse.

• Marine & Mobile DC Systems
  Suitable for appropriately engineered high-current battery circuits in compatible marine, RV, vehicle, and mobile-power electrical systems.

Product Specifications

Reliable 175A Protection for High-Current DC Systems

The Victron Energy CIP138175020 MEGA-Fuse 175A/80V provides robust, replaceable overcurrent protection for compatible high-current DC electrical systems. Its 175A current rating, 80V DC capability, M8 bolt-down terminals, and MEGA fuse design make it a practical protection component for appropriately engineered battery, solar, energy-storage, inverter, charging, and DC distribution circuits.
