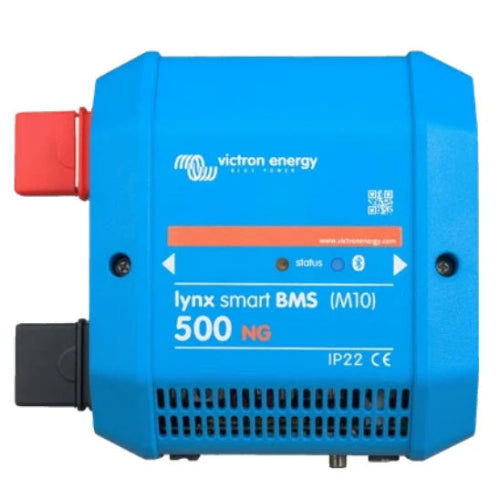

Victron Energy Lynx Smart BMS 500 NG (M10) - LYN034160310

The Victron Energy LYN034160310 Lynx Smart BMS NG 500A (M10) is a dedicated battery management system designed specifically for Victron Lithium NG LiFePO₄ batteries.

It combines a 500A main safety contactor, built-in pre-charge circuit, integrated battery monitoring, Bluetooth connectivity, VE.Can communication, DVCC control, programmable relay functionality, and Lynx Distributor fuse monitoring in a single M10-compatible module.

Designed for 12V, 24V, and 48V systems, the Lynx Smart BMS NG integrates with M10 products in the Victron Lynx Distribution System and supports up to 50 compatible Lithium NG batteries in a single system.

Battery data, including individual cell voltages and temperatures, can be monitored through VictronConnect or compatible GX equipment and the VRM portal.

Key Technology

• Designed for Victron Lithium NG
  Developed specifically for Victron Lithium NG batteries, providing dedicated battery management for compatible LiFePO₄ battery banks.

• 500A Main Safety Contactor
  The integrated contactor provides a secondary safety system if primary ATC, ATD, or DVCC controls fail to disable charging or loads when required. It can also function as a remotely controllable main system switch.

• Built-In Pre-Charge Circuit
  Limits high inrush current when connecting compatible capacitive loads such as inverters and eliminates the need for a separate external pre-charge device in supported installations.

• Integrated Battery Monitor
  Provides real-time state of charge, voltage, current, historical information, status data, and other battery information.

• Individual Cell Monitoring
  Supports readout of individual Lithium NG battery cell voltages and temperatures through compatible GX devices and the VRM portal.

• Bluetooth & VictronConnect
  Built-in Bluetooth enables local monitoring and control through VictronConnect, including Instant Readout for quick system diagnostics.

• VE.Can & GX Integration
  VE.Can communication provides integration with compatible GX equipment such as Cerbo GX and Ekrano GX for centralized system monitoring and control.

• DVCC Closed-Loop Control
  Compatible Victron inverter/chargers, solar charge controllers, and supported DC-DC charging equipment can be automatically controlled through a connected GX device and DVCC.

• Allow-to-Charge & Allow-to-Discharge Control
  Dedicated ATC and ATD connections can control other compatible chargers and loads equipped with suitable remote on/off interfaces.

• Lynx Distributor Fuse Monitoring
  Monitors fuse status for up to four connected Lynx Distributor modules and can report blown-fuse alarms through VictronConnect or compatible GX equipment.

Best Uses

• Victron Lithium NG Battery Systems
  Designed specifically for battery banks constructed from compatible Victron Lithium NG batteries.

• Victron Lynx Distribution Systems
  Ideal as the central battery-management component in a modular Lynx system using compatible M10 Lynx products.

• High-Current Battery Systems
  Provides integrated battery protection, monitoring, and switching for properly engineered battery systems requiring substantial DC current capability.

• GX-Integrated Energy Systems
  Well suited for installations using compatible GX devices for centralized monitoring, DVCC control, and access through the VRM portal.

• Systems with Multiple Lithium NG Batteries
  Supports large battery-bank configurations with multiple compatible batteries connected in series, parallel, or series-parallel arrangements.

• Redundant Battery Architectures
  Supports system designs using multiple Lynx Smart BMS NG units, with each BMS managing its own battery bank in supported parallel configurations.

Product Specifications

Advanced Battery Management for Victron Lithium NG Systems

The Victron Energy LYN034160310 Lynx Smart BMS NG 500A (M10) combines high-current battery protection, an integrated safety contactor, pre-charge circuitry, detailed Lithium NG battery monitoring, Bluetooth, VE.Can, DVCC control, programmable system interfaces, and Lynx Distributor fuse monitoring. Its direct integration with compatible M10 Lynx products makes it a central battery-management and monitoring component for properly designed Victron Lithium NG systems.
