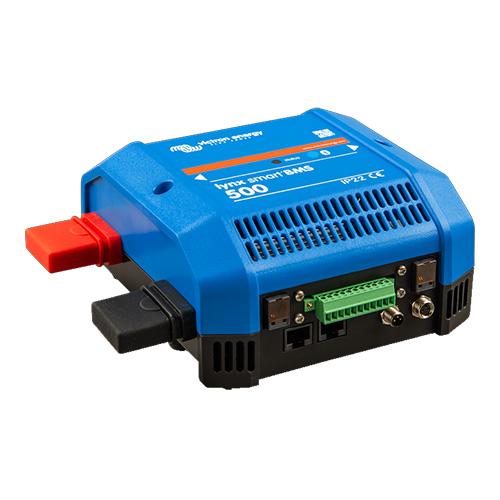

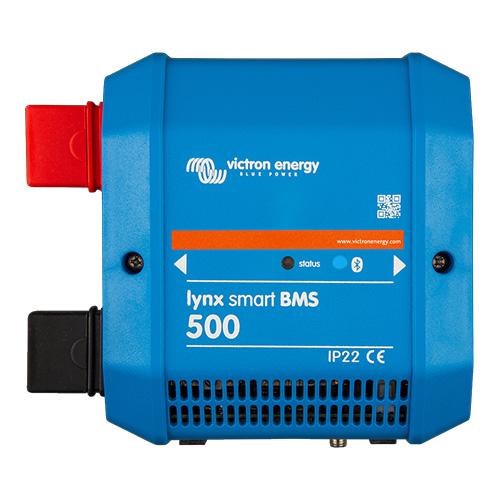

The Victron Energy LYN034160210 Lynx Smart BMS 500 (M10) is a feature-rich battery management system designed specifically for Victron Lithium Battery Smart LiFePO₄ batteries.

It combines a 500A main safety contactor, built-in battery monitoring, pre-charge circuitry, Bluetooth connectivity, VE.Can communication, programmable control functions, and Lynx Distributor fuse monitoring in a single integrated module.

Designed for 12V, 24V, and 48V battery systems, the Lynx Smart BMS integrates directly into the Victron Lynx Distribution System and supports monitoring and control through VictronConnect or a compatible GX device.

It can also coordinate compatible chargers and loads through DVCC and Allow-to-Charge/Allow-to-Discharge control while providing a secondary safety disconnect through its built-in contactor.

Key Technology

• 500A Main Safety Contactor
  The integrated contactor provides a secondary battery-protection mechanism if primary charge or discharge controls fail to disable connected equipment when required. It can also function as a remotely controllable main system switch.

• Built-In Pre-Charge Circuit
  Pre-charges compatible capacitive loads before the main contactor closes, reducing high inrush current when connecting equipment such as inverter/chargers and eliminating the need for a separate external pre-charge circuit in supported installations.

• Integrated Battery Monitor
  Provides real-time battery information including state of charge, voltage, current, historical data, system status, and additional diagnostic information.

• Bluetooth & VictronConnect
  Built-in Bluetooth enables local monitoring, configuration, and control through the VictronConnect app, including Instant Readout for quick access to key battery information.

• VE.Can & GX Integration
  VE.Can communication enables connection to compatible Victron GX devices for centralized monitoring, system control, and integration with the VRM ecosystem.

• DVCC Closed-Loop Control
  Compatible Victron inverter/chargers and solar chargers can be automatically controlled through a connected GX device using DVCC.

• Allow-to-Charge & Allow-to-Discharge Control
  Dedicated control connections can manage compatible chargers and loads equipped with suitable remote on/off inputs.

• Programmable Relay
  The integrated SPDT relay can operate as an alarm relay or participate in alternator-control applications using an external regulator.

• Lynx Distributor Fuse Monitoring
  Monitors fuse status for up to four connected Lynx Distributor modules and can report a blown fuse through VictronConnect or a compatible GX device.

• Parallel Redundant BMS Support
  Supports parallel redundant system architectures where multiple Lynx Smart BMS units, each with its own battery bank, operate together as a single redundant battery system.

Best Uses

• Victron Lithium Battery Smart Systems
  Designed specifically for battery banks constructed from compatible Victron Lithium Battery Smart LiFePO₄ batteries.

• Victron Lynx Distribution Systems
  Ideal as the central battery-management and monitoring component within a modular Lynx DC distribution architecture.

• High-Current Battery Systems
  Provides integrated battery protection and switching for properly engineered systems requiring substantial continuous DC current capability.

• GX-Integrated Energy Systems
  Well suited for installations using a Cerbo GX or another compatible GX device for centralized system monitoring and DVCC control.

• Systems with Inverter/Chargers & Solar Chargers
  Supports coordinated control of compatible Victron charging and inverter equipment through GX and DVCC integration.

• Redundant Battery Architectures
  Multiple BMS units can be paralleled, each managing its own battery bank, to create supported redundant battery-system configurations.

Product Specifications

Integrated Battery Management for High-Current Victron Lithium Systems

The Victron Energy LYN034160210 Lynx Smart BMS 500 (M10) combines battery management, a high-current safety contactor, pre-charge circuitry, precision battery monitoring, Bluetooth, VE.Can communication, DVCC integration, Lynx Distributor fuse monitoring, programmable control functions, and parallel redundancy support. It provides a centralized BMS and system-control solution for compatible Victron Lithium Battery Smart installations built around the Lynx Distribution System.
