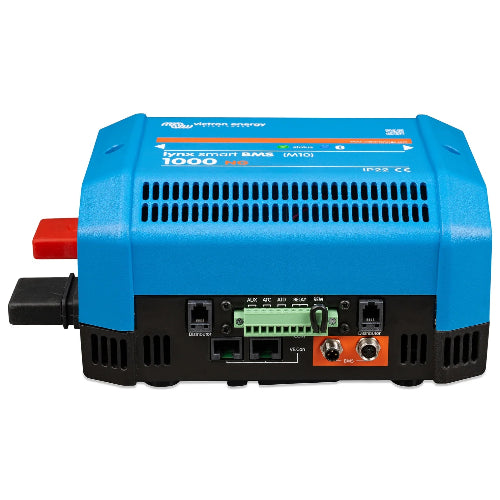

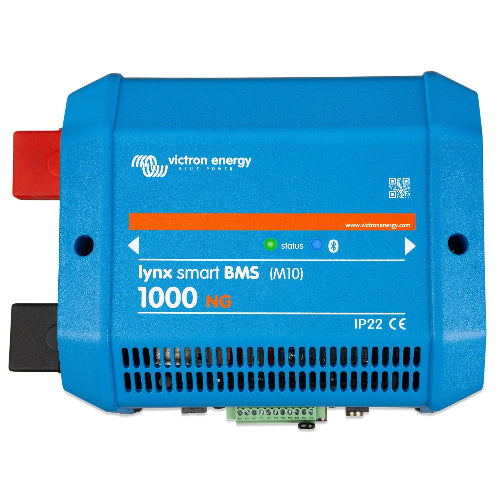

Victron Energy Lynx Smart BMS 1000 NG (M10) - LYN034170310

The Victron Energy LYN034170310 Lynx Smart BMS NG 1000A (M10) is a high-current battery management system designed specifically for Victron Lithium NG LiFePO₄ batteries.

It combines a 1000A main safety contactor, integrated pre-charge circuitry, built-in battery monitoring, Bluetooth connectivity, VE.Can communication, DVCC control, programmable relay functionality, and Lynx Distributor fuse monitoring in one M10-compatible module.

Designed for compatible 12V, 24V, and 48V systems, the Lynx Smart BMS NG supports up to 50 Lithium NG batteries in a single BMS system and integrates with other M10 products in the Victron Lynx Distribution System.

Battery information, including individual cell voltages and temperatures, can be monitored through VictronConnect or compatible GX equipment and the VRM portal.

Key Technology

• 1000A Main Safety Contactor
  The integrated high-current contactor acts as a secondary battery-protection system if primary ATC, ATD, or DVCC controls fail to disable connected loads or charging equipment when required. It can also function as a remotely controllable main system switch.

• Built-In Pre-Charge Circuit
  Limits high inrush current before connecting compatible capacitive loads such as inverters, eliminating the need for a separate external pre-charge device in supported system configurations.

• Dedicated Lithium NG Management
  Designed specifically for Victron Lithium NG batteries, providing battery-management functionality matched to the NG battery platform.

• Individual Cell Monitoring
  Supports monitoring of individual cell voltages and temperatures from connected Lithium NG batteries through compatible GX devices and the VRM portal.

• Integrated Battery Monitor
  Provides real-time information including state of charge, battery voltage, current, historical information, and operating status.

• Bluetooth & VictronConnect
  Built-in Bluetooth enables local configuration, monitoring, and control through VictronConnect, including Instant Readout for quick system diagnostics.

• VE.Can & GX Integration
  VE.Can connectivity enables communication with compatible GX devices such as Cerbo GX and Ekrano GX for centralized monitoring and system integration.

• DVCC Closed-Loop Control
  Compatible Victron inverter/chargers, supported DC-DC charging equipment, and solar charge controllers can be automatically coordinated through a connected GX device and DVCC.

• ATC & ATD Control
  Allow-to-Charge and Allow-to-Discharge contacts provide control of other compatible chargers and loads equipped with suitable remote on/off inputs.

• Lynx Distributor Fuse Monitoring
  Monitors fuse status for up to four connected Lynx Distributor modules and can provide an alarm when a monitored fuse is blown.

Best Uses

• Victron Lithium NG Battery Systems
  Designed specifically for compatible battery banks constructed from Victron Lithium NG LiFePO₄ batteries.

• High-Current Battery Systems
  Provides centralized battery protection, monitoring, and switching for properly engineered systems requiring substantial continuous DC current capability.

• M10 Lynx Distribution Systems
  Integrates with compatible M10 Lynx products for organized high-current DC distribution and battery management.

• Large Multi-Battery Banks
  Supports battery systems using multiple compatible Lithium NG batteries in supported series, parallel, or series-parallel configurations.

• GX-Integrated Energy Systems
  Well suited for systems using compatible GX devices for centralized monitoring, DVCC control, and remote system information through VRM.

• Redundant Battery Architectures
  Supports properly designed systems using multiple Lynx Smart BMS units, each managing its own battery bank as part of a redundant battery configuration.

Product Specifications

High-Current Battery Management for Victron Lithium NG Systems

The Victron Energy LYN034170310 Lynx Smart BMS NG 1000A (M10) combines high-current battery protection, a 1000A integrated safety contactor, pre-charge circuitry, detailed Lithium NG battery monitoring, Bluetooth, VE.Can, DVCC control, programmable system interfaces, Lynx Distributor fuse monitoring, and redundant BMS capability. It provides a centralized battery-management solution for compatible Victron Lithium NG systems requiring substantial DC current capacity and integration with the M10 Lynx Distribution System.
