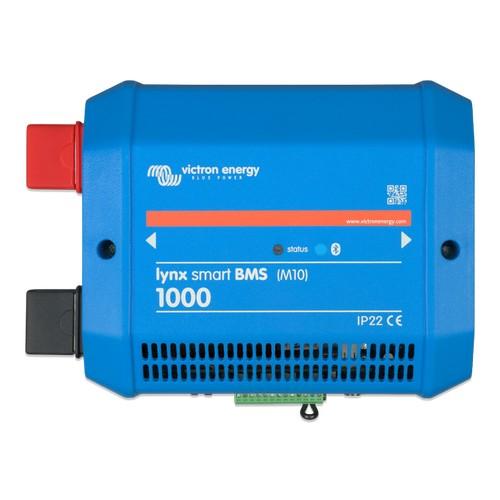

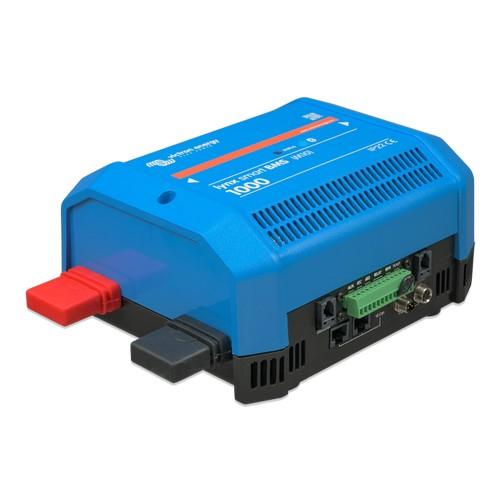

Victron Energy Lynx Smart BMS 1000A (M10) Battery Management System – LYN034170210

The Victron Energy LYN034170210 Lynx Smart BMS 1000A (M10) is a high-current battery management system designed specifically for Victron Lithium Battery Smart LiFePO₄ batteries.

It combines a 1000A main safety contactor, integrated pre-charge circuit, built-in battery monitoring, Bluetooth connectivity, VE.Can communication, DVCC control, programmable relay functionality, and Lynx Distributor fuse monitoring in a single M10-compatible module.

Designed for compatible 12V, 24V, and 48V battery systems, the Lynx Smart BMS integrates directly into the Victron Lynx Distribution System and supports up to 20 Lithium Battery Smart batteries in one BMS system.

It can be monitored and controlled through VictronConnect or a compatible GX device, while multiple Lynx Smart BMS units can be used in supported parallel redundant system architectures.

Key Technology

• 1000A Main Safety Contactor
  The integrated high-current contactor acts as a secondary battery-protection system if primary ATC, ATD, or DVCC controls fail to disable charging equipment or loads when required. It can also function as a remotely controllable main system switch.

• Built-In Pre-Charge Circuit
  Limits high inrush current when connecting compatible capacitive loads such as inverter/chargers and other inverters, eliminating the need for a separate external pre-charge device in supported installations.

• Integrated Battery Monitor
  Provides real-time battery information including state of charge, voltage, current, historical data, operating status, and other battery-monitoring information.

• Built-In Bluetooth
  Enables local monitoring and control through the VictronConnect app, including Instant Readout for convenient system diagnostics.

• VE.Can & GX Integration
  Provides VE.Can communication for connection to compatible Victron GX equipment, enabling centralized system monitoring and integration with the VRM platform.

• DVCC Closed-Loop Control
  Compatible Victron inverter/chargers and solar charge controllers can be automatically controlled through a connected GX device using DVCC.

• ATC & ATD Control
  Allow-to-Charge and Allow-to-Discharge contacts can control compatible chargers and loads equipped with appropriate remote on/off inputs.

• Programmable Relay
  The integrated relay can operate as an alarm relay with the pre-alarm function or control an alternator through an external regulator.

• Lynx Distributor Fuse Monitoring
  Monitors fuse status for up to four connected Lynx Distributor modules and provides fuse-failure information through VictronConnect or compatible GX equipment.

• Parallel Redundant BMS Support
  Multiple Lynx Smart BMS units can operate in supported parallel configurations, with each BMS managing its own battery bank to create a redundant battery system.

Best Uses

• Victron Lithium Battery Smart Systems
  Designed specifically for compatible Victron Lithium Battery Smart LiFePO₄ battery banks requiring centralized protection and monitoring.

• High-Current Battery Systems
  Suitable for properly engineered battery systems requiring substantial continuous DC current capability and integrated battery protection.

• Victron Lynx Distribution Systems
  Designed to integrate with compatible Lynx modules for organized high-current DC distribution, protection, and system monitoring.

• GX-Integrated Energy Systems
  Ideal for systems using compatible GX devices for centralized monitoring, DVCC control, and remote system information.

• Inverter/Charger & Solar Systems
  Supports coordinated control of compatible Victron inverter/chargers and solar charge controllers through GX and DVCC integration.

• Redundant Battery Architectures
  Suitable for supported installations where multiple independently managed battery banks are combined to provide battery-system redundancy.

Product Specifications

High-Current Battery Management for Victron Lithium Smart Systems

The Victron Energy LYN034170210 Lynx Smart BMS 1000A (M10) combines high-current battery protection, a 1000A integrated safety contactor, pre-charge circuitry, precision battery monitoring, Bluetooth, VE.Can, DVCC control, programmable system interfaces, Lynx Distributor fuse monitoring, and redundant BMS capability. It provides a centralized battery-management solution for compatible Victron Lithium Battery Smart systems requiring substantial DC current capacity and integration with the Lynx Distribution System.
