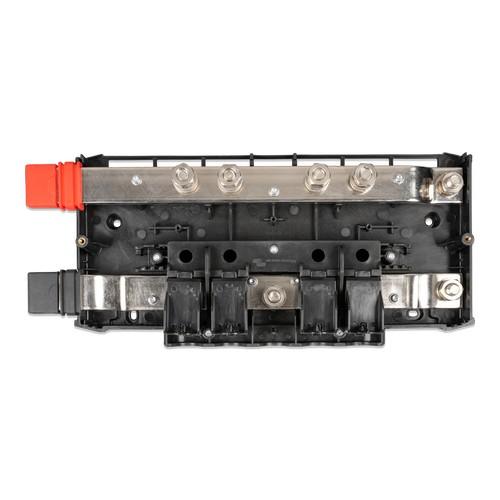

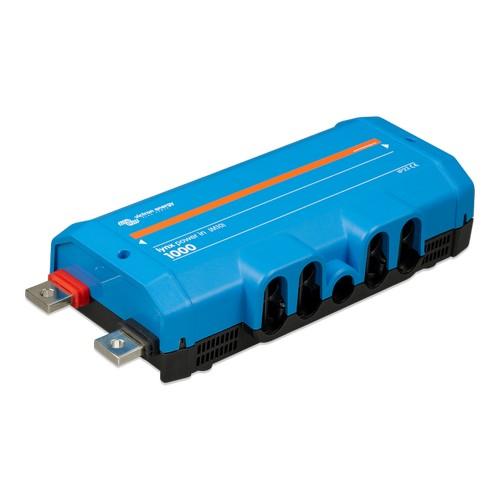

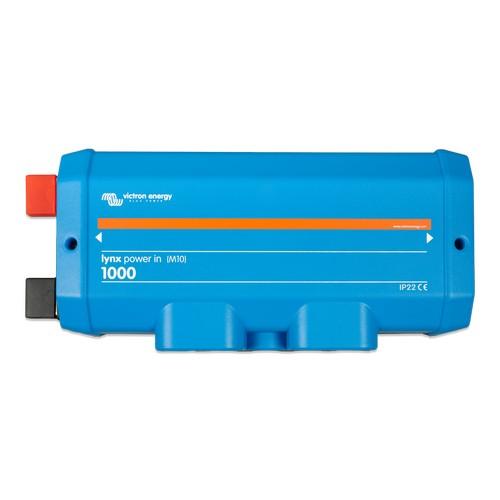

The Victron Energy LYN020102010 Lynx Power In M10 is a modular high-current DC busbar designed for connecting batteries, loads, and chargers within a Victron Lynx Distribution System. It contains separate positive and negative busbars with four connection points plus a dedicated ground connection, providing a centralized foundation for DC power distribution.

This version uses M10 busbar connection joints for interconnecting compatible Lynx modules. Importantly, the M10 designation applies to the module-to-module busbar joints; the individual cable connections remain M8. The Lynx Power In can operate as a standalone distribution busbar or be combined with compatible Lynx modules to build a larger DC distribution architecture.

Key Technology

• 1000A Continuous DC Busbar
  Designed for high-current DC distribution with a continuous current rating suitable for properly engineered 12V, 24V, and 48V battery systems.

• Positive & Negative Busbars
  Integrates separate positive and negative tinned-copper busbars to provide organized centralized DC connections within the Lynx system.

• Four DC Connection Points
  Provides four connection positions for batteries, loads, chargers, or other appropriately protected DC equipment.

• M10 Lynx Interconnection
  Uses M10 busbar joints for connecting this module to compatible M10 Lynx modules, creating a continuous positive and negative DC bus.

• M8 Equipment Connections
  The battery, load, and charger cable connections use M8 hardware even though this model uses M10 joints between Lynx modules.

• Modular Lynx Architecture
  Can be interconnected with compatible Lynx Power In, Lynx Distributor, Lynx Shunt VE.Can, and Lynx Smart BMS equipment to create a customized DC distribution system.

• Tinned Copper Busbars
  Uses tinned-copper busbars designed for dependable high-current DC distribution.

• Standalone Operation
  The Lynx Power In can also be used without a Lynx Shunt VE.Can or Lynx Smart BMS when battery monitoring or battery-management functionality is not required.

Best Uses

• Battery Bank Connections
  Provides a centralized connection point for appropriately configured battery banks feeding a common DC distribution system.

• High-Current DC Distribution
  Suitable for battery-based electrical systems requiring organized distribution of substantial DC current between batteries, charging equipment, and loads.

• Victron Lynx Distribution Systems
  Designed to integrate mechanically and electrically with compatible Lynx modules to create a modular DC distribution architecture.

• Multiple Battery Connections
  Useful for systems where multiple properly configured battery connections need to feed a common positive and negative busbar.

• Expandable DC Systems
  Multiple compatible Lynx modules can be interconnected when additional connection points, fused distribution, battery monitoring, or battery-management functions are required.

Product Specifications

Modular High-Current DC Distribution for Victron Lynx Systems

The Victron Energy LYN020102010 Lynx Power In M10 provides a robust foundation for centralized DC distribution with positive and negative tinned-copper busbars, multiple DC connection points, dedicated grounding, and modular M10 Lynx interconnection. It can operate independently or form part of a larger Lynx architecture incorporating fused distribution, battery monitoring, and compatible battery-management equipment.
