The Victron Energy PIN241500500 Inverter 24/500 VE.Direct converts power from a 24V DC battery system into 120V AC power for compatible loads. This model provides 460W continuous output at 25°C and up to 750W peak power, making it a compact solution for battery-based systems requiring dependable AC power.

Built around Victron's proven full-bridge and toroidal-transformer topology, the inverter combines configurable low-battery protection, high startup capability, ECO mode, remote on/off functionality, and VE.Direct communication. The VE.Direct interface supports monitoring and configuration through compatible Victron interfaces and optional communication accessories.

Key Technology

• VE.Direct Communication

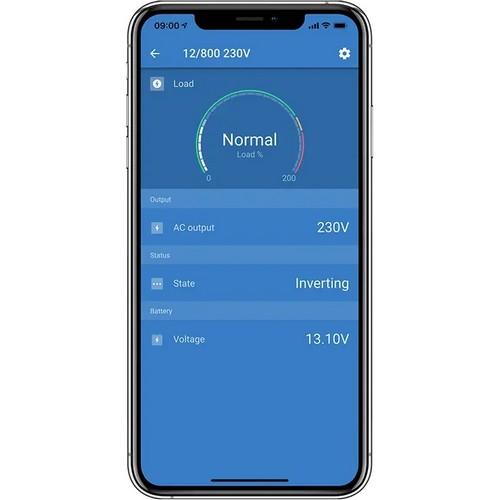

  The integrated VE.Direct port provides access to inverter monitoring and configuration. A compatible VE.Direct-to-USB interface can be used with a computer, while mobile-device connectivity is available with a compatible VE.Direct Bluetooth Smart dongle.

• Configurable Battery Protection
  Low-battery alarm and reset levels, shutdown and restart thresholds, and dynamic load-dependent cutoff behavior can be configured for the requirements of the connected battery system.

• High Start-Up Power
  Provides additional short-duration output capability for compatible loads that require more power during startup than during normal operation.

• ECO Mode
  ECO mode reduces standby consumption by placing the inverter into standby when the connected AC load drops below the configured threshold. The inverter periodically checks for a load and automatically resumes operation when required.

• Full-Bridge Toroidal Transformer Topology
  Victron uses a full-bridge design with a toroidal transformer, a topology selected for dependable inverter operation and proven reliability.

• Remote On/Off
  A compatible external switch can be connected to the inverter's remote terminals for convenient system control from another location.

• Integrated Protection
  Built-in protection covers output short circuit, overload, excessive battery voltage, low battery voltage, excessive temperature, and excessive DC ripple.

• Adjustable Output Parameters
  Supported output-voltage, frequency, ECO-mode, and battery-protection parameters can be configured through the VE.Direct interface.

Best Uses

• 24V Battery Systems
  Designed for compatible 24V DC battery banks requiring 120V AC power for connected equipment.

• Off-Grid Power Systems
  Suitable for battery-based systems where AC equipment must operate without a continuously available grid connection.

• Backup AC Power
  Provides AC power from a compatible battery bank for supported loads during backup-power operation.

• Mobile Power Systems
  Suitable for properly designed vehicle and mobile battery systems requiring conversion from 24V DC to 120V AC.

• Intermittent AC Loads
  ECO mode helps reduce unnecessary battery consumption when connected AC equipment operates only periodically.

• Victron Monitoring Systems
  VE.Direct communication makes the inverter suitable for installations where operating information and configurable parameters need to be accessed through compatible Victron interfaces.

Product Specifications

Reliable 24V DC to 120V AC Power Conversion

The Victron Energy PIN241500500 Inverter 24/500 VE.Direct combines dependable AC power conversion with strong startup capability, configurable battery protection, energy-saving ECO operation, remote control, and VE.Direct connectivity. It provides a practical inverter solution for properly designed 24V battery systems requiring reliable 120V AC power.
