The Victron Energy Cerbo GX MK2 BPP900455150 is a central communication and monitoring device for Victron energy systems, providing a single interface for monitoring, control, configuration, and remote system access. Through the Victron Remote Management (VRM) portal, users can remotely monitor and manage compatible system equipment, while local access is available through compatible GX Touch displays, multifunction displays, network connections, and VictronConnect.

Designed as the communication hub of a connected Victron installation, Cerbo GX provides extensive connectivity through VE.Direct, VE.Bus, VE.Can, Ethernet, Wi-Fi, Bluetooth, USB, digital inputs, tank-level inputs, temperature inputs, and programmable relays. It supports detailed monitoring of batteries, PV production, power consumption, generators, mains power, tank levels, and temperature measurements.

Key Technology

• Central System Communication
  Acts as the communication centre for compatible Victron equipment, consolidating system information and controls into a unified monitoring platform.

• Victron Remote Management (VRM)
  Provides remote monitoring, control, and configuration through the VRM portal, allowing users to access their energy system over the internet.

• Three VE.Direct Ports
  Provides three isolated VE.Direct ports and supports up to 15 total VE.Direct devices when direct and USB-connected devices are considered together.

• Dual VE.Can Interfaces
  Provides an isolated VE.Can 1 interface and a non-isolated VE.Can 2 interface for integration with compatible system equipment.

• VE.Bus Connectivity
  Features two paralleled isolated RJ45 VE.Bus sockets for compatible Victron inverter/charger system communication.

• Ethernet & Built-In Wi-Fi
  Supports wired 10/100 Ethernet and built-in Wi-Fi for local network and internet connectivity.

• Bluetooth Configuration
  Bluetooth provides convenient initial connection and network configuration through VictronConnect. Victron specifies that this Bluetooth functionality is not intended for directly connecting other Victron Bluetooth products such as SmartSolar charge controllers.

• Extensive I/O Capability
  Provides four resistive tank-level inputs, four temperature-sense inputs, four digital inputs, and two programmable relays for system monitoring and control.

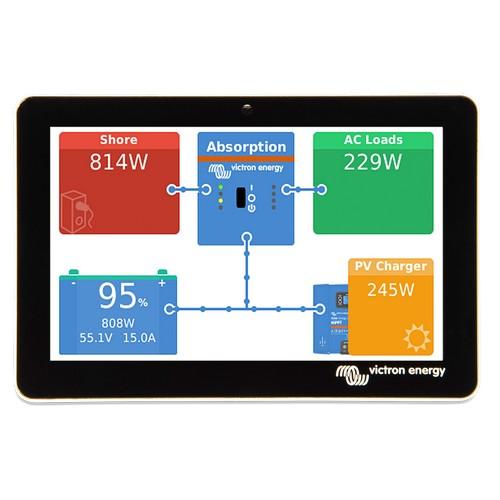

• GX Touch Compatibility
  Supports compatible GX Touch displays for a dedicated local touchscreen interface with instant system overview and settings access.

• Remote Console
  Remote Console provides access through VRM over the internet and can also be used through the local LAN or the Cerbo GX Wi-Fi access point.

Best Uses

• Victron Energy Storage Systems
  Provides centralized monitoring and control for compatible Victron battery, inverter/charger, solar, and system equipment.

• Solar & Battery Monitoring
  Allows users to monitor battery state of charge, power consumption, PV harvest, mains power, and other connected energy-system information.

• Off-Grid Power Systems
  Ideal for connected off-grid systems requiring centralized monitoring, generator control, diagnostics, and remote access.

• Marine & Mobile Energy Systems
  Suitable for appropriately designed boats, RVs, vehicles, and other mobile power systems built around compatible Victron equipment.

• Generator Monitoring & Control
  Supports system configurations that use compatible generator monitoring and automatic start/stop functionality.

• Remote System Management
  Ideal for installations where system owners or technicians need remote access to operating information, alerts, diagnostics, and configuration.

Product Specifications

Advanced Communication & Control for Connected Victron Systems

The Victron Energy Cerbo GX MK2 BPP900455150 provides centralized monitoring, extensive device connectivity, remote VRM access, flexible I/O, and compatible touchscreen integration for sophisticated Victron energy systems. Its broad communication capabilities make it a powerful system hub for monitoring, automation, diagnostics, and remote management.
