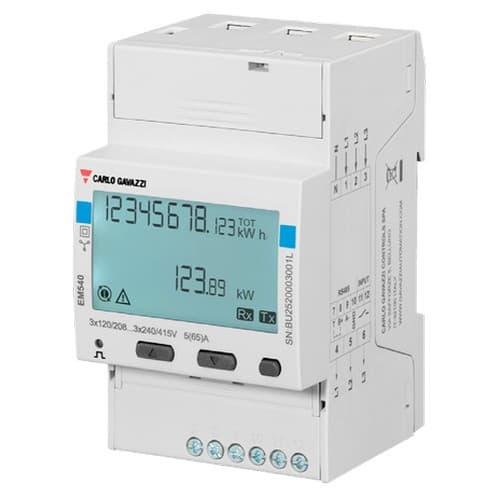

Victron Energy EM540 3-Phase max 65A Energy Meter REL200100100

The Victron Energy REL200100100 EM540 is a three-phase AC energy meter designed for integration with compatible Victron GX systems. It provides direct/shunt measurement of up to 65A per phase and communicates with the GX device through RS485, allowing measured energy information to be displayed through the GX interface and Victron Remote Management (VRM) portal.

Within a Victron system, energy meters can be used to measure the output of a PV inverter, AC generator, grid connection in an ESS installation, or AC loads. The EM540 is a three-phase meter with an integrated LCD and fast register refresh rate, making it suitable for applications requiring direct three-phase energy measurement.

Key Technology

• Three-Phase Energy Measurement
  Designed to measure three-phase AC electrical systems, making it suitable for compatible three-phase grid, PV inverter, generator, and load-monitoring applications.

• 65A Per Phase Direct Measurement
  Supports direct/shunt measurement up to 65A per phase, eliminating the need for external current transformers when the measured circuit remains within the meter's current rating.

• RS485 Communication
  Connects to compatible Victron GX equipment through RS485. Victron supports wired connection using an appropriate RS485-to-USB interface for compatible energy meters.

• GX & VRM Integration
  Measurement information from the energy meter can be made available through the connected GX device and the Victron Remote Management portal, providing centralized energy-system visibility.

• 100ms Register Refresh Rate
  The EM540 provides new measurement values in its registers at a 100ms refresh rate, supporting responsive energy monitoring within compatible installations.

• Integrated LCD Display
  Features a built-in LCD for convenient local viewing of meter information directly at the installation.

• Vector Energy Registration
  The EM540 uses vector registration for energy counting, the method Victron identifies as preferred in countries including Germany and Austria and in many other markets.

Best Uses

• ESS Grid Metering
  Can be used as the grid meter in a compatible Victron Energy Storage System to provide the GX system with three-phase grid measurement data.

• Three-Phase PV Inverter Measurement
  Suitable for measuring the AC output of a three-phase PV inverter when separate energy-meter measurement is required by the system design.

• AC Generator Measurement
  Can be integrated into compatible GX systems to measure the AC output of a three-phase generator.

• Three-Phase AC Load Monitoring
  Useful for monitoring compatible three-phase AC loads and making their measured energy information available to the GX system.

• GX & VRM Monitoring Systems
  Ideal where energy measurements need to be incorporated into Victron's GX monitoring environment and displayed remotely through VRM.

Product Specifications

Three-Phase Energy Measurement for Victron GX Systems

The Victron Energy REL200100100 EM540 provides three-phase direct measurement up to 65A per phase, RS485 communication, an integrated LCD, 100ms register refresh, and GX/VRM integration. It is a practical metering solution for compatible Victron installations requiring measurement of grid connections, PV inverter output, AC generator output, or three-phase AC loads.
