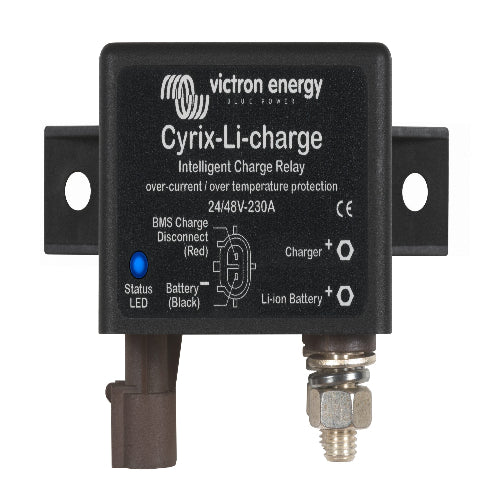

Victron Energy Cyrix-Li-Charge 24/48V 230A Intelligent Charge Relay CYR020230430

The Victron Energy CYR020230430 Cyrix-Li-Charge 24/48-230 is a high-current intelligent relay designed to connect and disconnect a battery charger in compatible 24V and 48V LiFePO4 battery systems. It works with the control signal from a compatible battery management system to stop charging when battery conditions require protection from cell overvoltage or excessive temperature.

The Cyrix-Li-Charge is rated for 230A continuous current and provides an 80A breaking capacity at 48V. It includes LED status indication, a control cable, low open-state current consumption, and an IP54 enclosure for integration into compatible lithium battery charging systems.

Key Technology

• Designed for LiFePO4 Charge Control
  The Cyrix-Li-Charge is designed to connect or disconnect a compatible battery charger according to the battery-management control signal, providing an additional protection interface for lithium battery charging systems.

• 230A Continuous Current Capacity
  Provides a 230A continuous current rating for compatible high-current 24V and 48V charging applications.

• 48V Breaking Capacity
  The 24/48V Cyrix-Li-Charge has a specified 80A breaking capacity at 48V, an important distinction from its continuous-current rating.

• BMS-Controlled Operation
  The Cyrix engages when its control input is high and disengages when the control input becomes free-floating or is pulled low, allowing a compatible BMS to control charger connection according to battery conditions.

• Automatic Charger Connection Logic
  The Cyrix-Li-Charge connects the charger after a short delay when the BMS permits charging, sufficient charger-side voltage is detected, and the battery connection is present.

• Immediate Protective Disconnection
  If the control input becomes free-floating as a result of a battery protection condition such as cell overvoltage or overtemperature, the Cyrix-Li-Charge disengages immediately.

• Automatic Reconnection Logic
  After charging has stopped and the protection condition resets, the Cyrix can reconnect the charger using controlled delay logic. Repeated reconnection attempts result in a longer delay to avoid rapid cycling.

• LED Status Indication
  Provides integrated LED indication for engaged, disengaged, connecting, disconnecting, and alarm states, helping technicians identify operating status directly at the relay.

• Low Open-State Consumption
  Consumes less than 4mA while open, minimizing standby demand from the connected battery system.

Best Uses

• 24V LiFePO4 Battery Systems
  Suitable for compatible 24V lithium battery installations requiring BMS-controlled connection and disconnection of a high-current charging source.

• 48V LiFePO4 Battery Systems
  Designed for compatible 48V lithium systems where the charging source needs to respond to battery-management protection signals.

• Battery Charger Isolation
  Useful for disconnecting a charger from a lithium battery when the battery-management system detects a condition that requires charging to stop.

• Marine Energy Systems
  Suitable for compatible marine lithium battery installations requiring controlled integration between the charging source and battery-management system.

• RV & Mobile Power Systems
  Provides a high-current charge-control relay solution for compatible lithium battery systems in RVs, campers, specialty vehicles, and other mobile applications.

• Off-Grid Battery Systems
  Useful in compatible battery-based energy systems where a charger cannot be controlled directly by the battery-management system and a controllable high-current relay is required.

Product Specifications

High-Current BMS-Controlled Charging for 24V & 48V Lithium Systems

The Victron Energy CYR020230430 Cyrix-Li-Charge 24/48-230 combines 230A continuous current capability, 24V/48V operation, BMS-controlled switching, intelligent charger-voltage detection, automatic reconnection logic, LED status indication, and IP54 protection. It provides a dedicated interface for disconnecting compatible high-current charging sources when lithium battery protection conditions require charging to stop.
