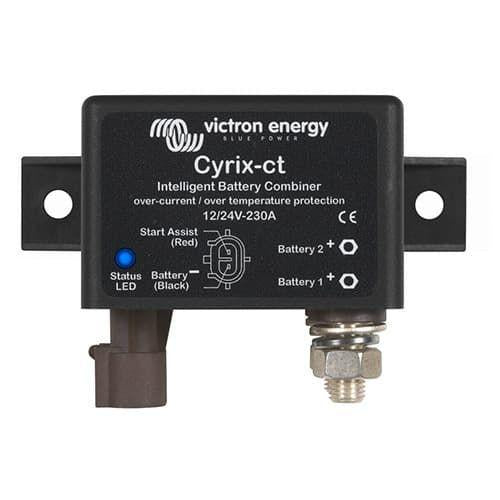

Victron Energy Cyrix-ct 12/24V-230A Intelligent Battery Combiner CYR010230010R

The Victron Energy Cyrix-ct 12/24V-230A is an intelligent battery combiner designed to automatically connect and disconnect two battery banks according to their voltage conditions. It supports both 12V and 24V systems through automatic voltage detection and provides a continuous current rating of 230A with a 500A cranking rating for 5 seconds.

The CYR010230010R uses intelligent voltage-trend monitoring rather than relying only on fixed voltage thresholds. It can prioritize charging of the starter battery, sense charging voltage from either connected battery, provide manual Start Assist for emergency battery paralleling, and automatically disengage if excessive contact temperature is detected.

Key Technology

• 230A Continuous Current
  Designed for high-current dual-battery systems with a continuous current rating of 230A and a 500A cranking rating for 5 seconds.

• 12/24V Auto-Ranging
  Automatically detects whether it is connected to a 12V or 24V electrical system, simplifying integration into compatible dual-battery applications.

• Intelligent Voltage-Trend Monitoring
  Monitors whether battery voltage is generally increasing or decreasing and uses this trend when determining when to connect or disconnect the battery banks, helping prevent unwanted switching.

• Bidirectional Voltage Sensing
  Monitors both connected batteries and can engage when either side reaches the required charging conditions, including when the accessory battery is being charged by a battery charger.

• Virtually No Voltage Loss
  Provides a low-loss alternative to diode battery isolators, so alternator or battery-charger output voltage does not need to be increased specifically to compensate for isolator voltage loss.

• Starter Battery Priority
  In a typical installation, the alternator charges the starter battery first. Once the Cyrix detects that the starter battery has reached the connection threshold, it engages to permit parallel charging of the accessory battery.

• Start Assist
  Can be manually engaged using a suitable push button or switch to temporarily connect the batteries in parallel, providing an emergency option when the starter battery is discharged or damaged.

• Overtemperature Protection
  Automatically disengages if excessive contact temperature is detected and reconnects after the unit has cooled.

• LED Status Indication
  Integrated LED indication communicates operating states including engaged, disengaged, connecting, disconnecting, and alarm conditions.

Best Uses

• Starter & Auxiliary Battery Systems
  Ideal for automatically managing charging between a starter battery and a separate accessory or house battery.

• Vehicle Dual-Battery Systems
  Suitable for properly designed automotive and mobile electrical systems where an alternator supplies both starter and accessory battery banks.

• Marine Battery Systems
  Useful for compatible onboard electrical systems where starting and service batteries require automatic combining during charging.

• RV & Mobile Power Systems
  Suitable for systems where the starter battery and house battery need automatic charge sharing while remaining separated when charging conditions are no longer present.

• Bidirectional Charging Systems
  Useful where either battery bank may receive charging current, because the Cyrix monitors voltage on both sides of the combiner.

• Emergency Start Assistance
  Provides manual battery paralleling capability for systems where the auxiliary battery may need to assist a discharged starter battery.

Product Specifications

Intelligent 230A Battery Combining for Dual-Battery Systems

The Victron Energy Cyrix-ct 12/24V-230A combines high-current capability with automatic voltage detection, intelligent trend-based switching, bidirectional sensing, thermal protection, LED status monitoring, and emergency Start Assist. It provides an effective solution for properly designed dual-battery systems that require automatic charging management without the voltage loss associated with traditional diode isolators.
