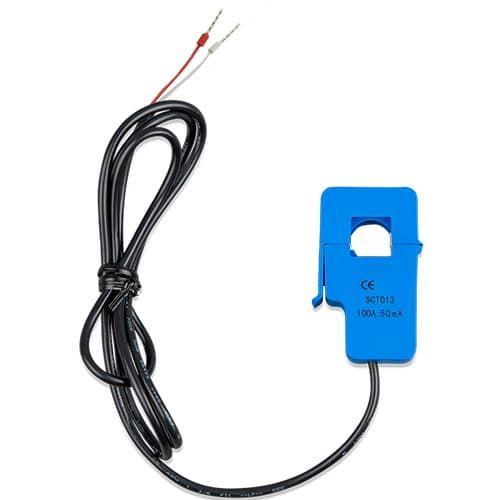

Victron Energy 100A:50mA Current Transformer with 1m Wire End for MultiPlus-II – CTR120000500
MPN No: CTR120000500
Expected ship date Oct 06 - 13
In Stock
$33.15
Victron Energy 100A:50mA Current Transformer with 1m Wire End for MultiPlus-II – CTR120000500
Victron Energy 100A:50mA Current Transformer with 1m Wire End for MultiPlus-II – CTR120000500
Regular price
$33.15
New
LESS THAN 50
Victron Energy 100A:50mA Current Transformer with 1m Wire End for MultiPlus-II – CTR120000500
Victron Energy 100A:50mA Current Transformer with 1m Wire End for MultiPlus-II – CTR120000500
Available
MPN No: CTR120000500
Regular price
$33.15
Expected ship date Oct 06 - 13
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$33.15
Victron Energy Current Transformer 100A:50mA for MultiPlus-II (1m) Wire End - CTR120000500
The Victron Energy CTR120000500 Current Transformer is an external AC current-sensing accessory designed for compatible MultiPlus-II and MultiGrid-II systems. It provides a 100A:50mA current-transformer interface for applications using external current sensing with Victron PowerControl, PowerAssist, and self-consumption optimization.
This CTR12-series version uses a wire-end connection rather than the jack connector found on CTR11-series current transformers. It is intended for compatible MultiPlus-II equipment equipped with the corresponding wire-end current-sense connection, making connector verification important when selecting between CTR11 and CTR12 versions.
Key Technology
-
External AC Current Sensing
Measures AC current externally and provides a proportional low-level current signal to compatible Victron equipment for supported energy-management functions. -
100A:50mA Current Transformer
Uses a 100A primary-to-50mA secondary current-transformer ratio for the designated MultiPlus-II current-sensing application. -
Wire-End Connection
Uses Victron's CTR12 wire-end termination, distinguishing it from CTR11-series current transformers that use a jack connector. -
PowerControl Support
Provides external current sensing for compatible MultiPlus-II and MultiGrid-II systems configured to use PowerControl. -
PowerAssist Support
Supports compatible PowerAssist installations by providing the external AC current measurement used by the configured inverter/charger system. -
Self-Consumption Optimization
Can be used in supported Victron configurations where external current sensing is required to optimize self-consumption.
Best Uses
-
Compatible MultiPlus-II Systems
Designed for MultiPlus-II installations equipped with the appropriate wire-end external current-sense connection. -
MultiGrid-II Systems
Suitable for compatible MultiGrid-II installations requiring external AC current sensing. -
PowerControl Applications
Useful where external current measurement is required so the configured Victron system can manage operation relative to an AC input-current limit. -
PowerAssist Applications
Provides the external current-sensing input needed for supported systems using Victron PowerAssist functionality. -
Self-Consumption Systems
Suitable for compatible energy-storage configurations using external current sensing as part of their self-consumption strategy.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Product | Current Transformer for MultiPlus-II |
| Manufacturer Part Number | CTR120000500 |
| Product Type | External AC Current Transformer / Current Sensor |
| Current Transformer Ratio | 100A:50mA |
| Rated Primary Current | 100A |
| Rated Secondary Current | 50mA |
| Connection Type | Wire-End |
| Cable Length | 1 m (3.28 ft) |
| Weight | 0.12 lb |
| Primary Compatibility | Compatible MultiPlus-II / MultiGrid-II Systems with Wire-End Current-Sense Connection |
| Supported Applications | PowerControl, PowerAssist & Self-Consumption Optimization |
| GTIN / EAN | 8719076059073 |
About Victron Energy:
Victron Energy develops power-conversion, battery-management, charging, monitoring, and DC distribution equipment for battery-based electrical systems. Its portfolio includes inverter/chargers, battery chargers, DC-DC converters and chargers, solar charge controllers, batteries, battery management equipment, GX monitoring devices, communications products, and system accessories.
Wire-End External Current Sensing for Compatible Victron Systems
The Victron Energy CTR120000500 Current Transformer provides a dedicated external AC current-sensing solution for compatible MultiPlus-II and MultiGrid-II installations. Its 100A:50mA transformer ratio and CTR12 wire-end configuration make it suitable for supported systems using PowerControl, PowerAssist, and self-consumption optimization.
