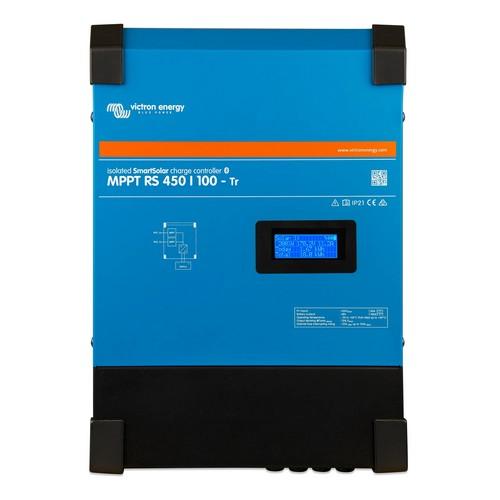

Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
MPN No: SCC145110512
Expected ship date Feb 01 - 08
In Stock
$945.40
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
Regular price
$945.40
New
LESS THAN 50
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
Available
MPN No: SCC145110512
Regular price
$945.40
Expected ship date Feb 01 - 08
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$945.40
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
MPN No:
SCC145110512
Expected ship date Feb 01 - 08
Victron Energy Charge Controller MPPT RS 450/100-MC4 SCC145110512
The SmartSolar MPPT RS 450|100 (SCC145110512) is a high-performance, isolated 48V solar charge controller designed for demanding off-grid, hybrid, and energy storage systems. Supporting up to 450V DC PV input and delivering 100A of battery charging current, this controller enables long PV strings, reduced balance-of-system costs, and maximum charging efficiency in professional installations.
Key Technology
-
Ultra-Fast MPPT with High-Voltage PV Input
Wide MPPT operating range of 65–450VDC with 120V startup allows long string designs and efficient energy harvest. -
Full Galvanic Isolation
Electrical isolation between PV and battery improves overall system safety, especially at higher voltages. -
Dual Independent MPPT Trackers
Two trackers optimize performance when using multiple PV array orientations or string groups. -
Integrated Display & Bluetooth
Built-in screen plus Bluetooth connectivity for monitoring, configuration, and firmware updates via VictronConnect. -
VE.Can & VE.Direct Communications
Supports parallel operation of up to 25 units and seamless integration with Victron GX devices and VRM Portal.
Best Uses
-
Off-Grid Solar Power Systems
High-voltage PV input and powerful charging for large 48V battery banks. -
Hybrid & ESS Installations
Ideal for systems combining solar, batteries, and grid or generator input. -
Commercial & Industrial Solar
Supports long string designs that reduce wiring losses and installation cost.
Warranty
-
Manufacturer Warranty: 5 years
Product Specifications
| Specification | Details |
|---|---|
| Model / Part Number | SCC145110512 |
| Product Type | Isolated MPPT Solar Charge Controller |
| Battery Voltage | 48 V |
| Rated Charge Current | 100 A |
| Maximum Charge Power | 5.76 kW @ 57.6 V |
| Maximum PV Voltage | 450 VDC |
| MPPT Voltage Range | 65 – 450 VDC |
| MPPT Trackers | 2 |
| Max PV Input Current | 16 A per tracker |
| Efficiency | Up to 96% |
| Communications | Bluetooth, VE.Direct, VE.Can |
| Protection Rating | IP21 (indoor) |
| Operating Temperature | -40°C to +60°C (fan assisted) |
| Weight | 17.4 lbs |
About Victron Energy:
Victron Energy is a Dutch company founded in 1975, designing and manufacturing battery-based energy system products—sine‑wave inverters, inverter‑chargers, solar charge controllers, monitoring—and supporting a modular, off-grid/marine/RV ecosystem.
High-Voltage MPPT Power for Professional 48V Systems
The Victron SmartSolar MPPT RS 450|100 combines high-voltage PV flexibility, galvanic isolation, and advanced Victron monitoring—making it an ideal choice for serious off-grid, hybrid, and commercial solar energy systems.
