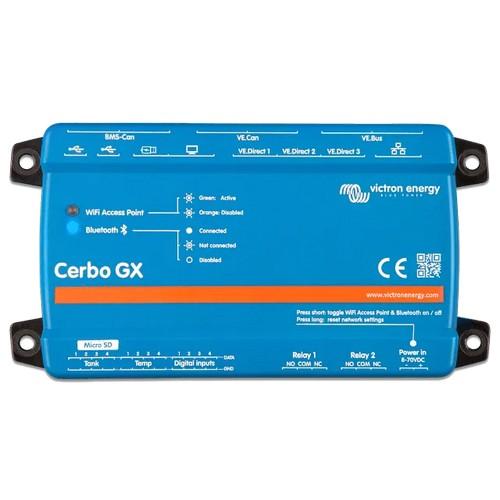

The Victron Energy Cerbo GX is a system communication and monitoring center designed to bring compatible Victron equipment together into one connected platform. It enables system monitoring and control locally or remotely through the Victron Remote Management (VRM) portal, an optional GX Touch display, compatible multifunction displays, and supported local interfaces. :

The BPP900450110 version provides extensive communication and I/O capabilities, including VE.Direct, VE.Bus, dual VE.Can interfaces, Ethernet, Wi-Fi, Bluetooth, USB, tank-level inputs, temperature inputs, digital inputs, and programmable relays. It operates from an 8–70V DC supply and serves as the central communications hub for compatible Victron energy systems.

Key Technology

• Central System Communication Hub
  Connects compatible Victron equipment and provides a centralized platform for monitoring system operation, energy flows, battery status, connected sensors, and other supported devices.

• Victron Remote Management (VRM)
  Supports remote monitoring, control, and configuration through the VRM platform, allowing system information and settings to be accessed over the internet.

• Extensive Communication Interfaces
  Provides VE.Direct, VE.Bus, VE.Can, Ethernet, Wi-Fi, Bluetooth, and USB connectivity for integration with compatible Victron equipment and supported external devices.

• Dual VE.Can Interfaces
  This Cerbo GX version provides an isolated VE.Can 1 interface and a non-isolated VE.Can 2 interface, expanding communication options for compatible CAN-based equipment.

• GX Touch Compatibility
  Supports optional GX Touch displays for convenient touchscreen system monitoring and control. The display connects to the Cerbo GX through a single connection arrangement.

• Integrated Wi-Fi & Ethernet
  Provides built-in Wi-Fi and a 10/100 RJ45 Ethernet interface for network connectivity and supported remote-monitoring applications.

• Bluetooth Configuration
  Bluetooth supports initial connection and networking configuration through the VictronConnect app. Victron notes that the Cerbo GX Bluetooth function is not intended for connecting directly to other Victron products such as SmartSolar charge controllers.

• Multiple Sensor & Digital Inputs
  Provides four resistive tank-level inputs, four temperature-sensing inputs, and four digital inputs for supported monitoring applications.

• Programmable Relays
  Features two NO/NC relays that support compatible system-control functions such as alarm signaling, generator control, tank-pump operation, temperature-based control, and manual operation depending on relay configuration and firmware.

Best Uses

• Victron Energy Systems
  Ideal as the central monitoring and communication device for compatible Victron inverter/chargers, solar charge controllers, battery monitors, and other supported system equipment.

• Solar & Battery Storage Systems
  Provides centralized visibility into supported battery state of charge, power consumption, PV production, and other energy-system information.

• Off-Grid Power Systems
  Useful for systems where remote access, generator integration, battery monitoring, and centralized equipment management are required.

• Marine & Mobile Power Systems
  Suitable for compatible onboard and mobile electrical installations requiring centralized monitoring of batteries, tanks, temperatures, power sources, and connected equipment.

• Remote System Monitoring
  Designed for installations where owners, installers, or service personnel need remote access to operating information, alerts, diagnostics, and supported system settings.

• Generator-Integrated Systems
  Supports compatible generator monitoring and control configurations, including programmable relay functions for generator start/stop applications.

Product Specifications

Advanced Communication & Monitoring for Connected Victron Systems

The Victron Energy Cerbo GX BPP900450110 provides a powerful central platform for connecting, monitoring, and controlling compatible Victron energy equipment. With VRM remote access, extensive communication interfaces, integrated Wi-Fi and Bluetooth, multiple sensor inputs, programmable relays, and optional GX Touch support, it provides comprehensive system visibility for sophisticated battery and energy installations.
