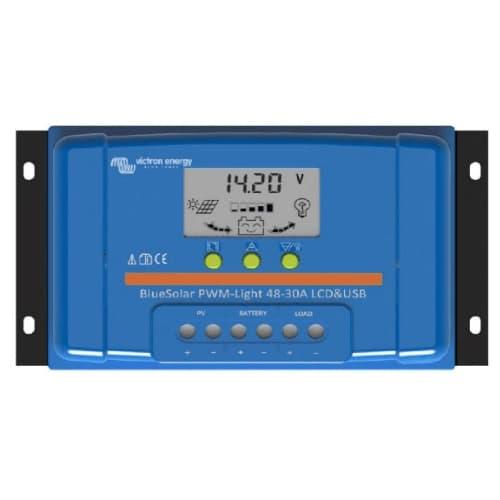

Victron Energy BlueSolar 48V 30A PWM Solar Charge Controller with LCD & USB SCC040030050

The Victron Energy SCC040030050 BlueSolar PWM-LCD&USB 48V-30A is a PWM solar charge controller designed for 48V battery systems. It combines a 30A rated charging current with an integrated LCD display, programmable load output, and dual 5V USB outputs for straightforward solar charging and local system management. The exact SCC040030050 model is identified by Victron as the 48V-30A version.

The controller provides programmable charging algorithms for AGM, GEL, flooded, and LiFePO4 batteries with an internal BMS. Its load output can also provide automatic low-voltage disconnection and programmable day/night operation, while the LCD enables status monitoring and setup directly from the controller.

Key Technology

• 48V / 30A PWM Solar Charging
  Designed for 48V battery systems with a rated charge current of 30A and a maximum solar input voltage of 100V.

• Integrated LCD Display
  Features a built-in liquid crystal display for convenient status monitoring and controller setup directly at the installation.

• Programmable Battery Charge Algorithm
  Provides preprogrammed charging algorithms for AGM, GEL, flooded, and LiFePO4 batteries equipped with an internal BMS.

• Automatic Low-Voltage Load Disconnect
  The load output can automatically disconnect connected loads when the battery reaches a preset low-voltage threshold, helping prevent excessive battery discharge.

• Programmable Load Output
  Supports manual control, low-voltage disconnect, and timer functionality for managing compatible DC loads.

• Day/Night Load Timing
  Allows a preset load ON-time after dusk, providing integrated control for compatible lighting and other timed DC applications.

• Dual 5V USB Outputs
  Includes two USB outputs providing 5V power with a maximum combined output current of 2A.

• Integrated Protection
  Includes protection against battery reverse polarity, output short circuit, overtemperature, and overload conditions.

Best Uses

• 48V Battery-Based Solar Systems
  Designed for photovoltaic charging applications using a compatible 48V battery bank.

• Off-Grid Solar Systems
  Suitable for standalone solar installations requiring straightforward PWM charging, local monitoring, and configurable load management.

• Solar Lighting Systems
  The programmable day/night timer makes the controller suitable for compatible lighting systems that need automatic operation after dusk.

• DC Load Management
  Useful where compatible DC loads need automatic low-voltage disconnection to help protect the battery against excessive discharge.

• Local System Monitoring
  The integrated LCD provides convenient access to system status and controller settings without requiring a separate display.

• Multiple Battery Chemistries
  Provides charging profiles for compatible AGM, GEL, flooded, and internally managed LiFePO4 battery systems.

Product Specifications

30A Solar Charging with Integrated Monitoring & Load Control

The Victron Energy SCC040030050 BlueSolar PWM-LCD&USB 48V-30A combines 48V PWM solar charging with an integrated LCD display, programmable battery charging, automatic low-voltage load management, day/night timing, dual USB outputs, and built-in electrical protection. It provides a straightforward charging and load-control solution for compatible 48V battery-based solar systems.
