Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
MPN No: BPC241331124
Expected ship date Oct 06 - 13
In Stock
$232.90
Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
Regular price
$232.90
New
LESS THAN 50
Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
Available
MPN No: BPC241331124
Regular price
$232.90
Expected ship date Oct 06 - 13
SPEC_BPC241331124_USSS
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$232.90
Victron Energy Blue Smart IP65 24V 13A Battery Charger, 120V NEMA 1-15 – BPC241331124
MPN No:
BPC241331124
Expected ship date Oct 06 - 13

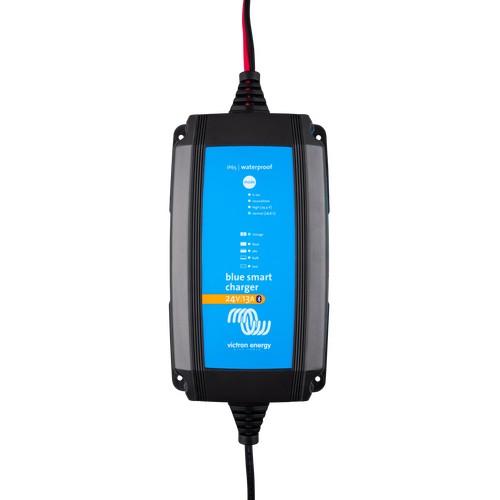

Victron Energy Blue Smart IP65 Charger 24/13(1) 120V NEMA 1-15 - BPC241331124
The Victron Energy BPC241331124 Blue Smart IP65 Charger 24/13 120V is a professional smart battery charger designed for 24V battery systems.
It provides up to 13A charging current and combines Victron's seven-step smart charging algorithm with built-in Bluetooth Smart for wireless setup, configuration, and real-time voltage and current monitoring through the VictronConnect app.
Designed for demanding battery-charging applications, the Blue Smart IP65 Charger provides high-efficiency operation, IP65 protection, automatic power-supply functionality, low-current mode, temperature-compensated lead-acid charging, dedicated Li-ion charging, reconditioning functionality, and recovery charging for deeply discharged batteries.
Victron also specifies a 5-year warranty for the Blue Smart IP65 Charger series.
Key Technology
-
13A Smart Charging
Provides intelligent charging for compatible 24V battery systems with automatic management of the charging process through Victron's multi-stage charging algorithm. -
Built-In Bluetooth Smart
Allows direct wireless connection to VictronConnect on a compatible smartphone or tablet for configuration, charger status, and battery voltage and current monitoring. -
Seven-Step Smart Charge Algorithm
Uses a multi-stage charging process designed to efficiently recharge and maintain compatible batteries while supporting long-term battery condition. -
Deeply Discharged Battery Recovery
Can attempt to recover a compatible battery discharged to zero or nearly zero volts by initially applying a low charging current and transitioning to normal charging once sufficient battery voltage develops. -
Li-ion Battery Mode
Includes a dedicated charging algorithm for compatible LiFePO₄ batteries with automatic Li-ion undervoltage-protection reset functionality. -
Temperature-Compensated Charging
For lead-acid batteries, the charger measures ambient temperature and automatically compensates its charging behavior according to temperature conditions. -
Low Current Mode
Reduces charging output for smaller-capacity batteries or applications where the charger's full charging current is not required. -
Automatic Power Supply Function
Can operate as a DC power supply in addition to its battery-charging functionality. -
IP65 Protection
Provides splash-proof, dust-proof, and ignition-protected construction for increased protection in demanding installation environments. -
Fanless & Silent Operation
Uses no cooling fan or other moving parts, providing silent operation while electronically managing output during elevated-temperature conditions.
Best Uses
-
24V Battery Charging
Designed for charging and maintaining compatible 24V battery banks using an intelligent multi-stage charging process. -
Lead-Acid Battery Maintenance
Adaptive charging, storage mode, reconditioning capability, and temperature compensation support properly configured lead-acid battery applications. -
LiFePO₄ Battery Charging
A dedicated Li-ion charging profile supports compatible 24V LiFePO₄ battery systems. -
Deeply Discharged Batteries
Useful where a compatible battery has been discharged to an extremely low voltage and conventional chargers may not recognize it. -
Bluetooth-Managed Charging
Ideal where wireless access to charging status, battery information, settings, and charger controls is desired through VictronConnect. -
Long-Term Battery Maintenance
Storage mode reduces charging voltage after extended connection to help limit positive-plate corrosion in lead-acid batteries.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Product Series | Blue Smart IP65 Charger |
| Model | Blue Smart IP65 Charger 24/13 120V |
| Manufacturer Part Number | BPC241331124 |
| Product Type | Smart Battery Charger |
| Nominal Battery Voltage | 24V |
| AC Input Voltage | 100–130V AC |
| Maximum Charge Current | 13A |
| Low Current Mode | 4A |
| Efficiency | 95% |
| Standby Power Consumption | 0.5W |
| Minimum Battery Voltage | Starts Charging Down to 0V |
| Absorption Voltage – Normal | 28.8V |
| Absorption Voltage – High | 29.4V |
| Absorption Voltage – Li-ion | 28.4V |
| Float Voltage – Normal | 27.6V |
| Float Voltage – High | 27.6V |
| Float Voltage – Li-ion | 27.0V |
| Storage Voltage – Normal | 26.4V |
| Storage Voltage – High | 26.4V |
| Storage Voltage – Li-ion | 27.0V |
| Temperature Compensation – Lead-Acid | 32mV/°C (18mV/°F) |
| Power Supply Mode | Yes |
| Back Current Drain | 0.7Ah/Month (1mA) |
| Protection | Reverse Polarity, Output Short Circuit, Over Temperature |
| Operating Temperature Range | -40°C to +60°C (-40°F to +140°F); Full Rated Output Up to 30°C (90°F) |
| Maximum Humidity | 95%, Non-Condensing |
| Protection Category | IP65 – Splash Proof, Dust Proof and Ignition Protected |
| Battery Connection Cable Length | 1.5 m (4.9 ft) |
| AC Connection | US NEMA 1-15 Plug |
| AC Cable Length | 1.8 m (5.9 ft) |
| Dimensions (H × W × D) | 3.0 × 5.5 × 9.4 in |
| Weight | 4.2 lb |
| Bluetooth | Built-In Bluetooth Smart |
| Configuration & Monitoring | VictronConnect App |
| Safety Standards | UL 1236, CSA C22.2, EN 60335-1, EN 60335-2-29 |
| Emission Standards | EN 55014-1, EN 61000-6-3, EN 61000-3-2 |
| Immunity Standards | EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3 |
| Warranty | 5 Years |
About Victron Energy:
Victron Energy develops power-conversion, battery-management, charging, monitoring, and DC distribution equipment for battery-based electrical systems. Its portfolio includes inverter/chargers, battery chargers, DC-DC converters and chargers, solar charge controllers, batteries, battery management equipment, GX monitoring devices, communications products, and system accessories.
Professional 24V Smart Charging with Bluetooth Control
The Victron Energy BPC241331124 Blue Smart IP65 Charger 24/13 120V combines intelligent 24V charging with built-in Bluetooth, VictronConnect control, high-efficiency operation, LiFePO₄ support, temperature compensation, deeply discharged battery recovery, storage and reconditioning functionality, power-supply operation, and IP65 protection for dependable battery charging and maintenance.
