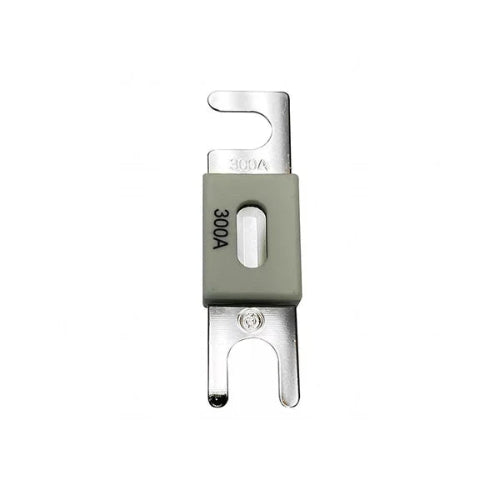

Victron Energy ANL-fuse 300A/80V (Package of 5 pcs) Fuse CIP143300020

The Victron Energy CIP143300020 ANL-Fuse is a high-current 300A, 80V DC fuse designed to provide overcurrent protection for compatible battery and DC electrical systems. Its ANL bolt-down format provides a secure, replaceable circuit-protection solution for high-current DC applications.

With a 300A current rating and 80V DC rating, this fuse is particularly suited to appropriately designed 48V battery systems, inverter connections, and DC distribution circuits. Victron Energy's current product documentation identifies CIP143300020 as the ANL-fuse 300A/80V model.

Package Quantity: Five (5) Victron Energy ANL-Fuse 300A/80V fuses.

Key Technology

• 300A Current Rating
  Provides 300-amp overcurrent protection for compatible high-current DC circuits when correctly selected according to conductor ampacity, connected equipment requirements, and system design.

• 80V DC Rating
  Rated for circuits operating at up to 80V DC, providing the voltage capability required for compatible low-voltage battery and DC power systems.

• ANL Fuse Format
  Uses a high-current ANL fuse design with a bolt-down electrical connection for secure installation in compatible DC circuit-protection equipment.

• Fast-Acting Protection
  Victron's ANL fuse design provides fast-acting protection and is specified with a higher short-circuit breaking capability than its MEGA fuse format, making it useful for demanding high-current DC protection applications.

• Approx. 125mV Voltage Drop
  The 300A model is specified with an approximate 125mV voltage drop under its specified operating conditions.

• Low Cold Resistance
  Specified with approximately 0.35mΩ cold resistance, supporting efficient integration into appropriately designed high-current DC circuits.

• Replaceable Overcurrent Protection
  Provides a replaceable protective element designed to interrupt excessive current and help protect properly sized conductors and connected DC equipment.

• Dedicated ANL Fuse Holder Compatibility
  Victron Energy lists the CIP106100000 Fuse Holder for ANL-Fuse alongside its ANL fuse range, providing a dedicated mounting solution for compatible installations.

Best Uses

• 48V Battery Systems
  Victron specifically identifies this ANL fuse for 48V products, making it suitable for appropriately engineered 48V battery-based power systems requiring 300A protection.

• Battery Bank Protection
  Suitable for protecting properly sized high-current battery conductors and connected equipment in compatible DC electrical systems.

• Solar & Energy Storage Systems
  Can be incorporated into appropriately engineered solar and battery-storage DC circuits where system design specifies a 300A ANL fuse.

• Inverter & Inverter/Charger Circuits
  Suitable for high-current DC input circuits associated with compatible inverters and inverter/chargers when 300A protection is specified.

• Battery-to-Busbar Connections
  Provides high-current overcurrent protection for compatible battery-to-busbar and related DC distribution connections.

• High-Current DC Distribution
  Suitable for DC distribution circuits and fuse panels where conductor sizing and connected equipment require a 300A protective fuse.

Product Specifications

High-Current 300A Protection for DC Power Systems

The Victron Energy CIP143300020 ANL-Fuse 300A/80V provides robust, replaceable overcurrent protection for compatible high-current DC electrical systems. Its 300A rating, 80V DC capability, fast-acting ANL construction, and high short-circuit breaking capability make it a practical protection component for appropriately engineered battery, inverter, charging, and DC distribution circuits.
