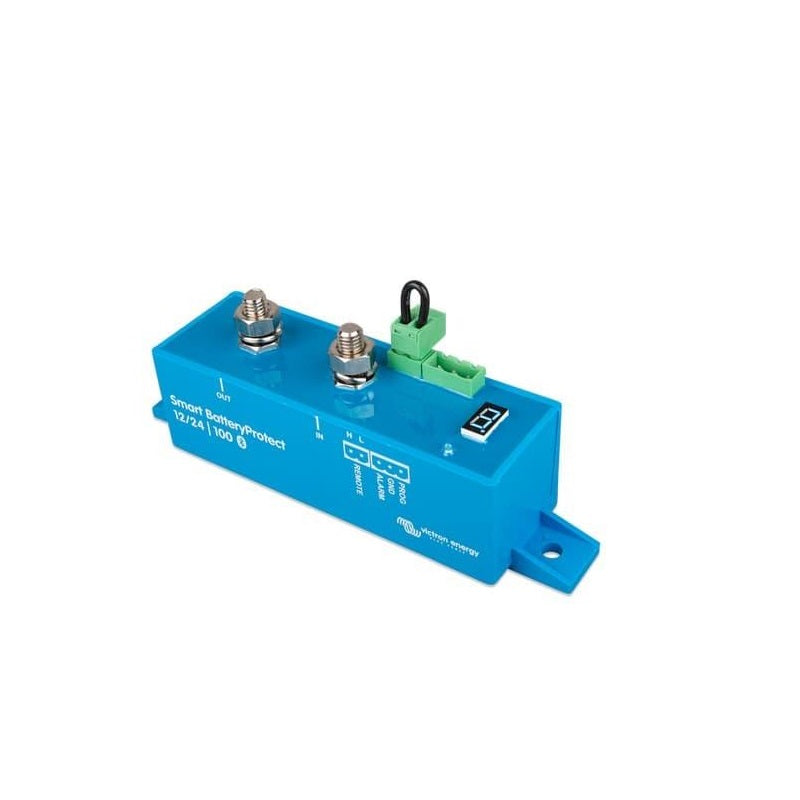

Victron BPR110022000 Smart BatteryProtect 12/24V-100A

Victron BPR110022000 Smart BatteryProtect 12/24V-100A

Regular price $71.94
Sale price $71.94 Regular price
LESS THAN 50
No reviews
Leave a Review

MPN No: BPR110022000

Victron BPR110022000 Smart BatteryProtect 12/24V-100A

Victron BPR110022000 Smart BatteryProtect 12/24V-100A

No reviews
Leave a Review
Regular price $71.94
Sale price $71.94 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
This is the Smart Version of the Victron Battery Protect. Programming is made easier using a Bluetooth link to your phone or tablet. This also allows incremental voltage values to be entered so you are not confined to the standard values. The Bluetooth can be disabled once the values are set if desired. This can be used as a stand alone device or as part of a control system for a Lithium Ion battery bank. The Victron Battery protect is a solid state relay and is used to disconnect the load from a battery when it is becoming over discharged. It is controlled internally by programmable parameters for low and high voltage or when used with Lithium Ion batteries it is controlled remotely by the the VE Bus Battery Management System

Solid state relay for use with 12/24 Volts DC
Operating voltage range 6-35 Volts
Maximum continuous current 100 Amps
Maximum peak current 600 Amps (30 seconds)
Power consumption max 1.5 mA
Alarm output delay 12 seconds
Load disconnect delay when triggered by BMS is instanteneous
Load disconnect delay when triggered by low voltage of 10.5 or 21 Volts is 90 Seconds
Load reconnect delay 30 seconds when voltage gets to 12 or 24 Volts
Can be programmed to behave as a 12 or 24 volt solid state DC relay
Featuring Built-In Bluetooth
The BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine. The BatteryProtect automatically detects system voltage (12 or 24 volts)

The BatteryProtect can be set to engage / disengage at several different voltages using the seven segment display to indicate which setting has been chosen. For Li-ion batteries the Battery Protect can be controlled by the VE.Bus BMS. The Ultra low current consumption is important in case of Li-ion batteries, especially after low voltage shutdown. To prevent damage to sensitive loads due to over voltage, the load is also disconnected whenever the DC voltage exceeds 16V or 32V. This is a solid state device using MOSFET switches instead of relays and so is ignition protected.

The alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds. Starting the engine will therefore not activate the alarm. The alarm output is a short circuit proof open collector output to the negative (minus) rail, max. current 50 mA. The alarm output is typically used to activate a buzzer, LED or relay. The load will be disconnected 90 seconds after the alarm has been activated. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.
