Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
MPN No: TSM-NEG9RH.25 445W
Expected ship date Jun 10 - 17
In Stock
$208.60
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
Regular price
$208.60
$0.46/watt
New
1196 IN STOCK
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
Available
MPN No: TSM-NEG9RH.25 445W
Regular price
$208.60
$0.46/watt
Expected ship date Jun 10 - 17
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$208.60
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25
MPN No:
TSM-NEG9RH.25 445W
Expected ship date Jun 10 - 17
Trina Solar 445W Vertex S Dual Glass Monocrystalline Solar Panel TSM-445-NEG9RH.25

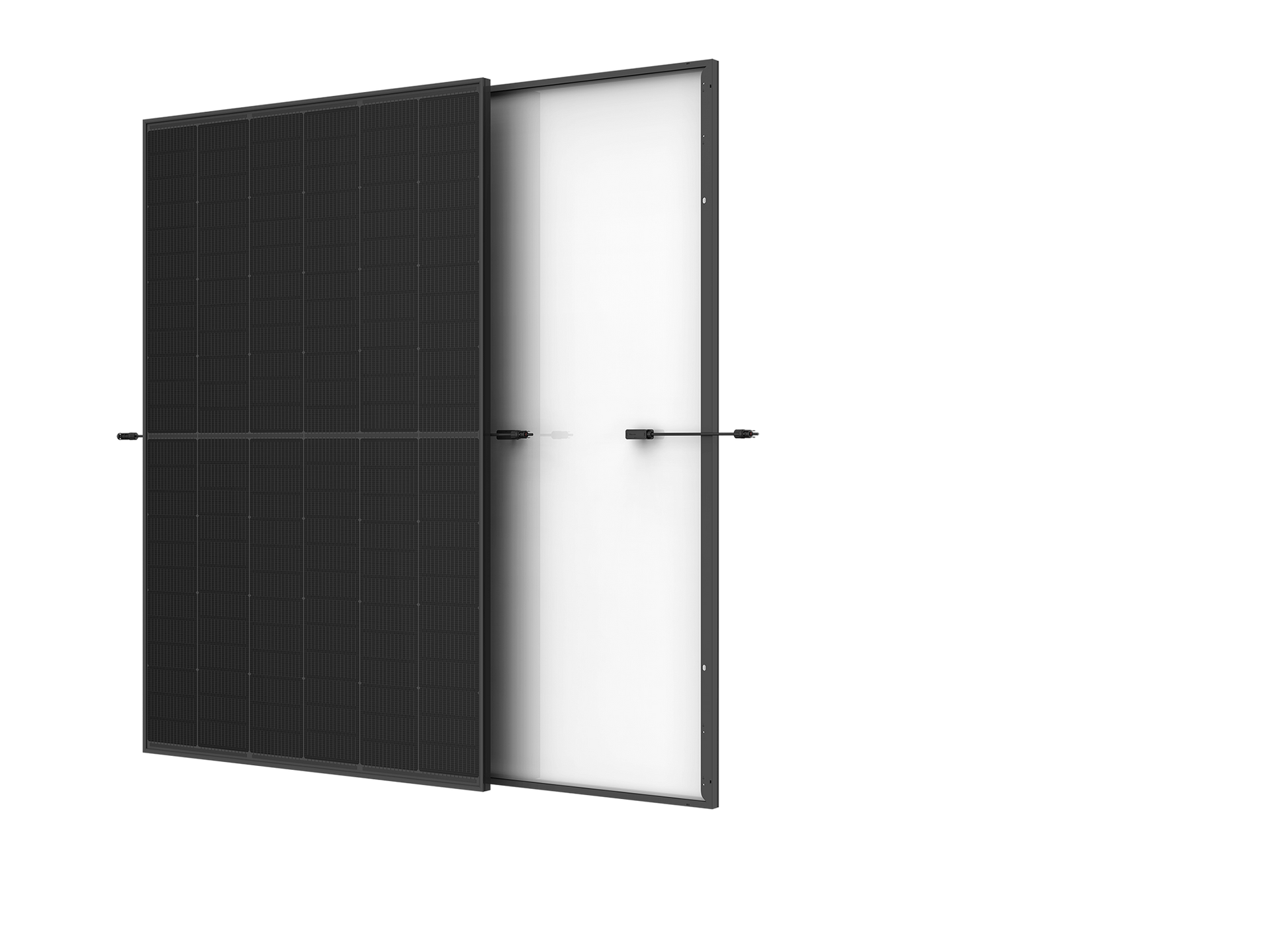

The Trina Solar Vertex S+ TSM-NEG9RH.25 445W is a premium high-efficiency N-Type TOPCon dual-glass monocrystalline solar module engineered for residential rooftop photovoltaic installations.
Designed with Trina Solar’s innovative TOPCon technology, this module delivers superior efficiency, excellent low-light performance, and enhanced long-term reliability.
Featuring sleek all-black aesthetics, a lightweight dual-glass construction, and up to 22.3% module efficiency, the Vertex S+ 445W module is optimized for high energy yield, long service life, and an exceptional rooftop appearance.
Key Technology
-
N-Type TOPCon Technology
Advanced TOPCon cell architecture improves efficiency, reliability, and long-term energy production. -
22.3% Module Efficiency
High-efficiency module design maximizes rooftop power density and energy generation. -
Dual-Glass Construction
Light double-glass design enhances durability, fire resistance, and long-term weather protection. -
Excellent Low-Light Performance
Validated high energy yield under low irradiation conditions. -
Low Temperature Coefficient
Enhanced high-temperature performance with a low -0.29%/°C power temperature coefficient. -
Advanced Reliability Protection
Certified resistance against PID, salt spray, sand dust, and ammonia exposure. -
Full-Black Aesthetic Design
Elegant all-black appearance optimized for premium rooftop installations. -
Enhanced Mechanical Strength
Rated for 5400 Pa front and rear mechanical loads for demanding environmental conditions.
Best Uses
-
Residential Rooftop Solar Systems
Premium full-black appearance and high efficiency ideal for modern homes -
High-Efficiency Solar Installations
Maximizes energy production where installation space is limited. -
Long-Term Solar Investments
Designed for reliable multi-decade performance with low degradation rates.
Warranty
- Product Warranty: 25 Years
- Performance Warranty: 30-Year Power Warranty
- First-Year Degradation: 1%
- Annual Degradation: 0.40%
- 30-Year Output: 87.4% retained power output
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Trina Solar |
| Model | TSM-NEG9RH.25 445W |
| Series | Vertex S+ |
| Cell Technology | N-Type TOPCon Monocrystalline |
| Cell Configuration | 96 Cells |
| Maximum Power (Pmax) | 445 W |
| Module Efficiency | 22.3% |
| Maximum Power Voltage (Vmp) | 29.9 V |
| Maximum Power Current (Imp) | 14.89 A |
| Open Circuit Voltage (Voc) | 35.7 V |
| Short Circuit Current (Isc) | 15.84 A |
| Power Selection | 0 ~ +5 W |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.24% / °C |
| Temperature Coefficient (Isc) | +0.04% / °C |
| Nominal Operating Cell Temperature (NOCT) | 43°C ±2°C |
| Operating Temperature | -40°C to +85°C |
| Maximum System Voltage | 1500 V DC (IEC/UL) |
| Maximum Series Fuse Rating | 30 A |
| Dimensions | 69.37 × 44.65 × 1.38 in |
| Weight | 48.50 lb |
| Front Glass | 1.6 mm AR Coating Heat Strengthened Glass |
| Back Glass | 1.6 mm Heat Strengthened Glass |
| Frame | Black Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Connector | TS4 Plus / TS4 / MC4 EVO2 |
| Output Cable | 4.0 mm² PV Cable, 1100 mm / 1100 mm |
| Mechanical Load | 5400 Pa Front / 5400 Pa Rear |
| Fire Type | Type 38 |
| Pallet Quantity | 31 Modules |
| Container Quantity | 806 Modules |
About Trina Solar:
Trina Solar is a global photovoltaic technology leader recognized for advanced high-efficiency solar modules, innovative N-Type cell technologies, and reliable clean energy solutions for residential, commercial, and utility-scale solar applications.
Premium Full-Black N-Type TOPCon Performance with Dual-Glass Reliability
The Trina Solar Vertex S+ TSM-NEG9RH.25 445W combines advanced N-Type TOPCon technology, elegant all-black aesthetics, and durable dual-glass construction—making it an excellent solution for high-performance rooftop solar installations focused on efficiency, reliability, and long-term energy yield. :
