≥ 21

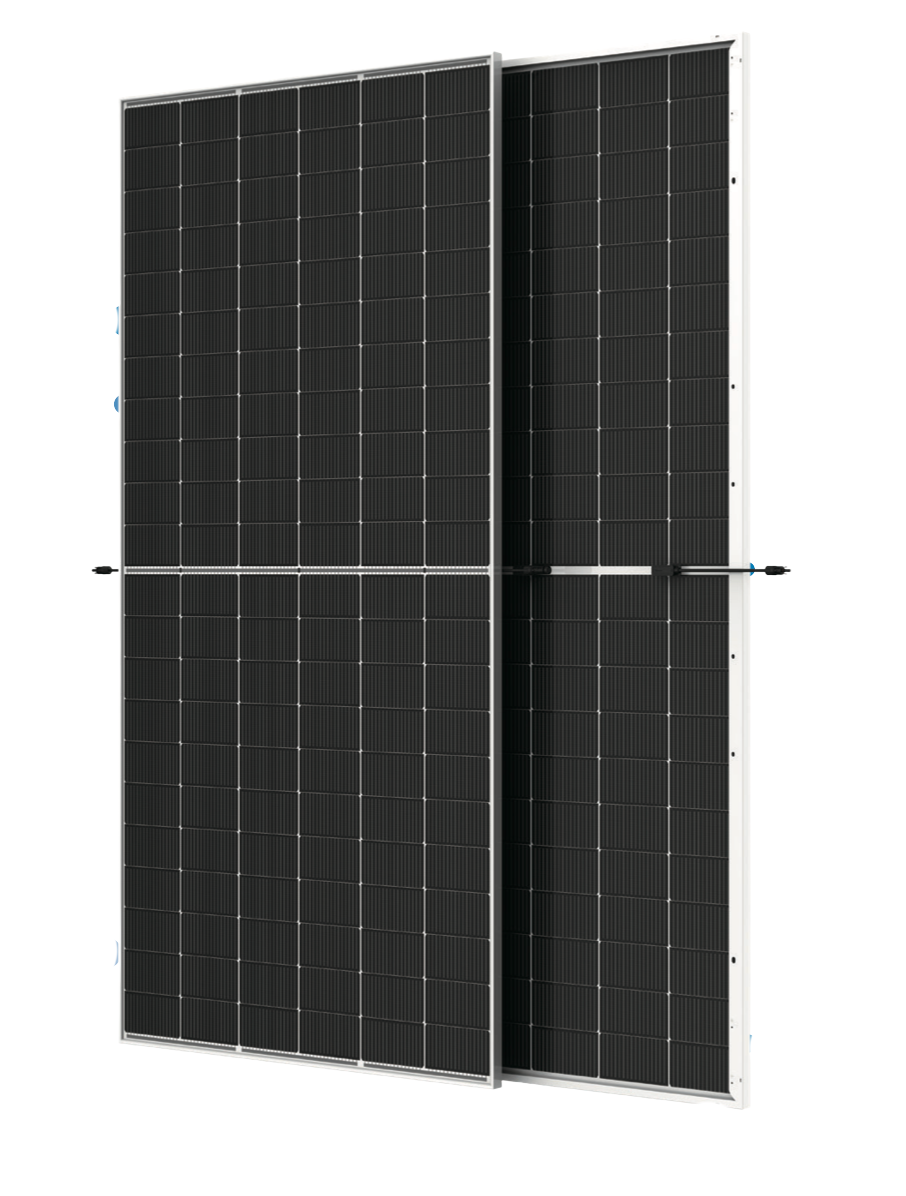

Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
MPN No: TSM-NEG19RC.20
Expected ship date Dec 18 - 25
In Stock
7,946.49
-6%
$7,399.99
Sale
Pallet
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Regular price
$7,946.49
-6%
$7,399.99
$0.33
/watt
Sale price
$205.55
/per panel
7% OFF
New
LESS THAN 50
Sale
Pallet
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
In Stock
MPN No: TSM-NEG19RC.20
Regular price
$7,946.49
-6%
$7,399.99
$0.33
/watt
Sale price
$205.55
/per panel
Expected ship date Dec 18 - 25
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$7,946.49
-6%
$7,399.99
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
MPN No:
TSM-NEG19RC.20
Expected ship date Dec 18 - 25
In Stock
Sale
≥ 21
Shipping Notice for 600W+ Solar Panels
All solar panels rated 600W and above exceed liftgate size restrictions and cannot be unloaded via liftgate. Residential deliveries require the customer to provide appropriate unloading equipment (forklift, skid steer, or equivalent) at the delivery location. Failure to provide equipment may result in re-delivery fees assessed by the carrier.
Trina 615W (Pallet of 36) Vertex N N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG19RC.20
Pallet Only – 36 Panels
Key Technology
-
N-Type i-TOPCon Cells: Higher carrier lifetime, lower LID/LeTID, and improved long-term yield.
-
High Density Interconnect + SMBB Design: Super Multi-Busbar technology enhances light trapping and reduces resistive losses for higher output.
-
Bifacial Dual-Glass Design: 2.0 mm heat-strengthened AR-coated glass (front and back) improves durability and captures reflected light for rear-side generation (up to 30 %).
-
Enhanced Low-Light Performance: Superior energy generation in low-irradiance and high-temperature conditions with a temperature coefficient of -0.29 % / °C.
-
Resilient in Harsh Climates: Salt-, ammonia-, sand-, and humidity-resistant for coastal or desert installations.
-
Lower LCOE & Improved Logistics: High power density and optimized container space utilization reduce freight and installation costs.
Warranty
-
12-Year Product Workmanship Warranty
-
30-Year Performance Warranty
-
1 % first-year degradation
-
0.4 % annual linear degradation thereafter
-
87.4 % power retained after 30 years
-
Certified to IEC 61215 / 61730 / 61701 / 62716 / UL 61730 standards and manufactured under ISO 9001, ISO 14001, and ISO 45001 quality systems
Best Applications
-
Utility-Scale Ground Mounts: Maximum wattage per string for reduced BOS costs.
-
Commercial Rooftops: High-efficiency footprint with durable dual-glass construction.
-
Agrivoltaic & Reflective Sites: Ideal for bifacial gain applications with high albedo surfaces.
-
Coastal & High-Heat Regions: Certified resistance to salt mist, sand, and ammonia for extreme environmental conditions.
Product Specifications
| Electrical (STC) | Value |
|---|---|
| Model | TSM-NEG19RC.20 |
| Rated Power (Pmax) | 615 W |
| Module Efficiency | 23.0 % |
| Voltage at Pmax (Vmp) | 41.4 V |
| Current at Pmax (Imp) | 15.91 A |
| Open Circuit Voltage (Voc) | 49.6 V |
| Short Circuit Current (Isc) | 16.68 A |
| Power Tolerance | 0 ~ +5 W |
| Bifacial Gain (Rear Side) | Up to 30 % (depending on albedo) |
| Max System Voltage | 1500 V DC (IEC / UL) |
| Max Series Fuse Rating | 35 A |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Operating Temperature | -40 °C ~ +85 °C |
| Mechanical | Value |
|---|---|
| Dimensions | 2382 × 1134 × 30 mm (93.78 × 44.65 × 1.18 in) |
| Weight | 33.7 kg (74.3 lb) |
| Cell Type | N-Type Monocrystalline i-TOPCon |
| Number of Cells | 132 cells (6 × 22 layout) |
| Front / Back Glass | 2.0 mm AR-Coated Heat-Strengthened Glass |
| Frame | Anodized Aluminum Alloy (30 mm) |
| Junction Box | IP68 rated, MC4 EVO2 / TS4 PLUS compatible |
| Cable | 4.0 mm² – length 350 / 280 mm (customizable) |
| Modules per Pallet | 36 pcs |
| Modules per 40' Container | 720 pcs |
