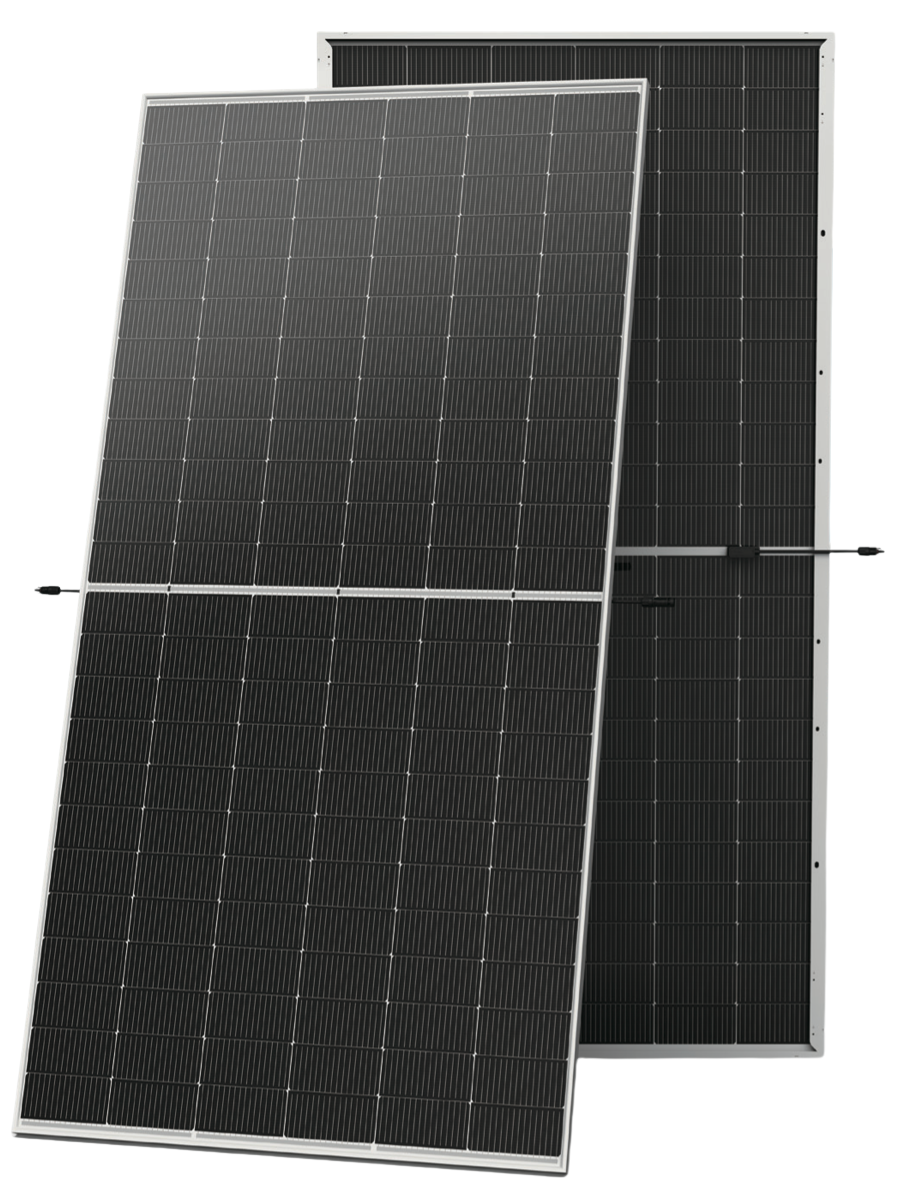

Trina 585w (Pallet of 36) DUOMAX N Type i-TOPCon Bifacial Dual Glass Solar Panel TSM-NEG18C.20
Pallet Only – 36 Panels
Key Technology
-
N-Type i-TOPCon Cell Structure: Enhances carrier lifetime and reduces degradation, delivering superior long-term performance compared to traditional P-Type modules.
-
Bifacial Dual-Glass Construction: 2.0 mm heat-strengthened glass on both sides for increased durability and improved energy yield from reflected light.
-
High-Density Interconnect and SMBB Design: The Super Multi-Busbar configuration reduces resistive losses, optimizes light capture, and minimizes micro-cracks.
-
Enhanced Low-Light Performance: Excellent energy generation under low irradiance and high-temperature conditions with a low temperature coefficient (-0.29%/°C).
-
Rugged Durability: Withstands up to 5400 Pa positive and 2400 Pa negative loads; certified for salt-mist, ammonia, sand, and high-humidity environments.
-
PID Resistance: Advanced process control and materials ensure strong resistance to Potential-Induced Degradation.
Warranty
-
12-Year Product Warranty covering workmanship and materials.
-
30-Year Power Output Guarantee ensuring 87.4% of rated output at year 30.
-
Initial year degradation ≤ 1%
-
Annual linear degradation ≤ 0.4% thereafter
-
Trina Solar modules are certified to IEC 61215 / IEC 61730 / IEC 61701 / IEC 62716 and produced under ISO 9001, ISO 14001, ISO 45001, and ISO 14064 standards
NEG18C.20 575-600W
.
Best Applications
-
Utility-Scale Projects: High-efficiency, low-LCOE solution for large ground-mount arrays.
-
Commercial Rooftops: Optimized footprint with high power density and long lifespan.
-
Agrivoltaic & Bifacial-Friendly Sites: Ideal for elevated mounting and reflective ground conditions.
-
High-Temperature & Coastal Regions: Certified resistance to salt, ammonia, and humidity for dependable operation in harsh climates.
Product Specifications
| Electrical (STC) | Value |
|---|---|
| Model | TSM-NEG18C.20 |
| Rated Power (Pmax) | 585 W |
| Module Efficiency | 22.6 % |
| Voltage at Pmax (Vmp) | 44.4 V |
| Current at Pmax (Imp) | 13.18 A |
| Open Circuit Voltage (Voc) | 52.4 V |
| Short Circuit Current (Isc) | 13.82 A |
| Power Tolerance | 0 ~ +5 W |
| Bifacial Gain (rear side) | Up to 25 % depending on albedo |
| Max System Voltage | 1500 V DC (IEC) |
| Max Series Fuse Rating | 30 A |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Operating Temperature | -40 °C ~ +85 °C |
| Mechanical | Value |
|---|---|
| Dimensions | 2278 × 1134 × 30 mm (89.7 × 44.6 × 1.18 in) |
| Weight | 31.9 kg (70.3 lb) |
| Cell Type | N-Type Monocrystalline i-TOPCon (144 cells) |
| Front / Back Glass | 2.0 mm Heat-Strengthened, AR Coated |
| Frame | Anodized Aluminum Alloy, 30 mm |
| Junction Box | IP68 rated, MC4 EVO2 / TS4 Plus compatible |
| Cable | 4.0 mm² – length 350 / 280 mm (customizable) |
| Modules per Pallet | 36 pcs |
| Pallet Weight | Approx. 1,148 kg (36 × 31.9 kg) |
| Modules per 40’ Container | 720 pcs |
