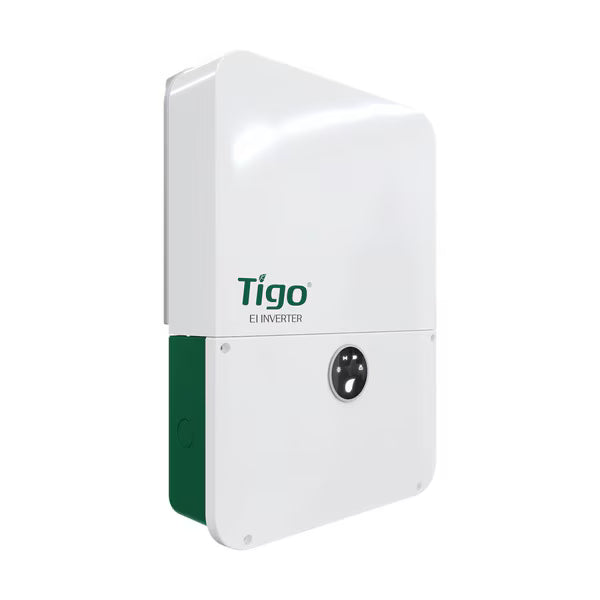

Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
MPN No: 601-2107K6-0502
Estimated arrival on Nov 16 - 23
In Stock
$2,417.44
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
Regular price
$2,417.44
New
LESS THAN 50
Branded by Tigo
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
In Stock
MPN No: 601-2107K6-0502
Regular price
$2,417.44
Estimated arrival on Nov 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$2,417.44
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
MPN No:
601-2107K6-0502
Estimated arrival on Nov 16 - 23
In Stock
Tigo 7.6kW Hybrid Inverter Compatible with ATS 50A 601-2107K6-0502
The Tigo EI 7.6 kW hybrid inverter is the centerpiece of the Energy Intelligence (EI) platform, coordinating PV, battery storage, and backup power. With up to 200% DC oversizing, three MPPTs, 80 V start-up, integrated Wi-Fi, and NEMA 4X (IP65) protection, it delivers flexible stringing and reliable performance for residential systems at 208/240 Vac.
Key Benefits
Hybrid & Storage-Ready: Native high-voltage battery interface (400 V nominal) and EI ecosystem integration.
Flexible Design: 3 MPPTs, 80–550 Vdc MPPT window, and 2:1 DC/AC ratio for complex rooftops.
Reliable Backup: 7,600 W backup power at 240 Vac; EI Battery backup up to 9,120 VA (7.6 kW class).
High Efficiency: 98.4% max / 97.5% CEC (240 V). :contentReference[oaicite:4]{index=4}
Fast Commissioning: <10 minutes with the EI mobile app; built-in Wi-Fi (4G optional).
Special Technology
Energy Intelligence Platform: Module-level monitoring/optimization & rapid shutdown when paired with TS4 MLPE.
Comprehensive Protection: AFCI, ground-fault & residual-current monitoring, anti-islanding, insulation monitoring, DC Type II & AC Type III surge protection, and integrated DC disconnect.
Warranty
152-Month Manufacturer Warranty. :contentReference[oaicite:8]{index=8}
Best Uses
Residential PV + Storage: Self-consumption, TOU shifting, and whole-home backup with EI Battery.
Retrofits: Add storage to existing arrays within the EI ecosystem.
Specifications Table
| Specification | Data |
|---|---|
| Model / Part | EI Inverter 7.6 kW — 601-2107K6-0502 |
| AC Nominal Power (208 V / 240 V) | 6,580 W / 7,600 W |
| Max Apparent Power | 7,600 VA |
| Nominal AC Voltage / Frequency | 208/240 Vac · 50/60 Hz |
| Max Output Current | 32 A |
| Max Efficiency / CEC (240 V / 208 V) | 98.4% / 97.5% · 97.0% |
| MPPTs / Strings per MPPT | 3 / 2 |
| DC Operating Window / Max DC Voltage | 80–550 Vdc (MPPT); 600 Vdc max |
| Full-Load Voltage Range | 150–500 Vdc (7.6 kW model) |
| Max DC/AC Ratio | 200% (2:1) |
| PV Input Current per MPPT (Imp / Isc) | 13.5 A / 16.9 A |
| Recommended Max PV Power | 15,200 W |
| Battery Interface | 400 Vdc nominal; up to 21.7 A; 7,800 W I/O |
| Backup Output (EI Battery) | 9,120 VA max; 38 A max @ 240 V (model class) |
| Protection Features | AFCI, RCMU, GFDI/monitoring, anti-islanding, insulation monitoring, DC disconnect, DC Type II & AC Type III SPD |
| Enclosure / Cooling | NEMA 4X (IP65) / Natural convection |
| Operating Temperature | −25 °C to +60 °C (derate >45 °C) |
| Dimensions (W × D × H) | 15.8 × 7.4 × 25.2 in |
| Weight | 45.2 lb |
| Communications | Wi-Fi (standard), 4G (optional), RS-485 |
| Certifications / Listings | UL1741 (SA/SB), IEEE 1547/1547.1:2020, UL1699B, FCC Part 15B; CA-CEC, Rule 21 CSIP, HECO 14H, PR-OGPe |
| Warranty | 152 Months |
About Tigo:
Tigo Energy is a U.S.-based company focused on smart module-level power electronics (MLPE) for solar PV systems. Their flagship technologies include Smart Module Optimizers, Fire Safety Devices, and Cloud-based monitoring platforms. Tigo’s TS4 line enables performance optimization, shade mitigation, and rapid system shutdown compliance. Known for flexibility and compatibility, Tigo solutions integrate seamlessly with various inverters and module types, enhancing reliability and efficiency.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 152-month product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the 601-2107K6-0502 compatible with my solar panels?
Yes, the 601-2107K6-0502 hybrid inverter supports a wide range of PV modules. It accepts up to 600 V DC maximum PV input. Your installer will verify string voltages, currents, and module types to ensure compatibility and optimal system performance. The inverter also supports Tigo TS4 optimizers for module-level monitoring and safety.
Do I need a battery to use the 601-2107K6-0502?
No, you can operate the inverter as a standard grid-tied system without a battery. However, since it’s a hybrid model, you can add a compatible battery later. Adding a battery enables energy storage, backup power, and greater self-consumption of solar energy.
How do I monitor the performance of the 601-2107K6-0502?
The inverter features built-in Wi-Fi and optional cellular connectivity for monitoring through Tigo’s Energy Intelligence (EI) platform. Once connected, you can track power generation, energy flow, battery performance, and system alerts using the Tigo app or online portal. If module optimizers are installed, you can also view module-level data.
What happens if there is a power outage?
Without a battery, the inverter shuts down automatically during a grid outage for safety (anti-islanding protection).
If a battery and an automatic transfer switch (ATS) are installed, the inverter can switch to backup power mode to supply electricity to designated circuits in your home until grid power is restored.
How do I maintain the 601-2107K6-0502?
This inverter requires minimal maintenance. Keep it clean, ensure good airflow and ventilation, and check for any warning indicators on the display or monitoring platform. It’s recommended to schedule periodic system inspections with your installer to confirm all components are working efficiently and update firmware as needed.
What is the efficiency of the 601-2107K6-0502?
The inverter delivers high efficiency for both PV-to-grid and PV-to-battery conversion. Typical efficiency is around 97% or higher depending on configuration. For detailed performance metrics, refer to the official Tigo datasheet for this model.
What are the input and output voltage ranges?
-
DC Input Voltage: Up to 600 V DC maximum
-
AC Output Voltage: 208–240 V AC nominal
-
Number of MPPTs: 3 independent MPPTs
-
Starting Voltage: Approximately 50–80 V DC
Your installer will design the PV string layout to stay within these voltage and current limits under all temperature conditions.
What communication protocols does the 601-2107K6-0502 use?
The inverter supports Wi-Fi for wireless monitoring, optional cellular communication, and RS-485 for integration with battery systems or energy management devices. When paired with Tigo TS4 optimizers, it enables module-level monitoring and rapid shutdown functionality.
