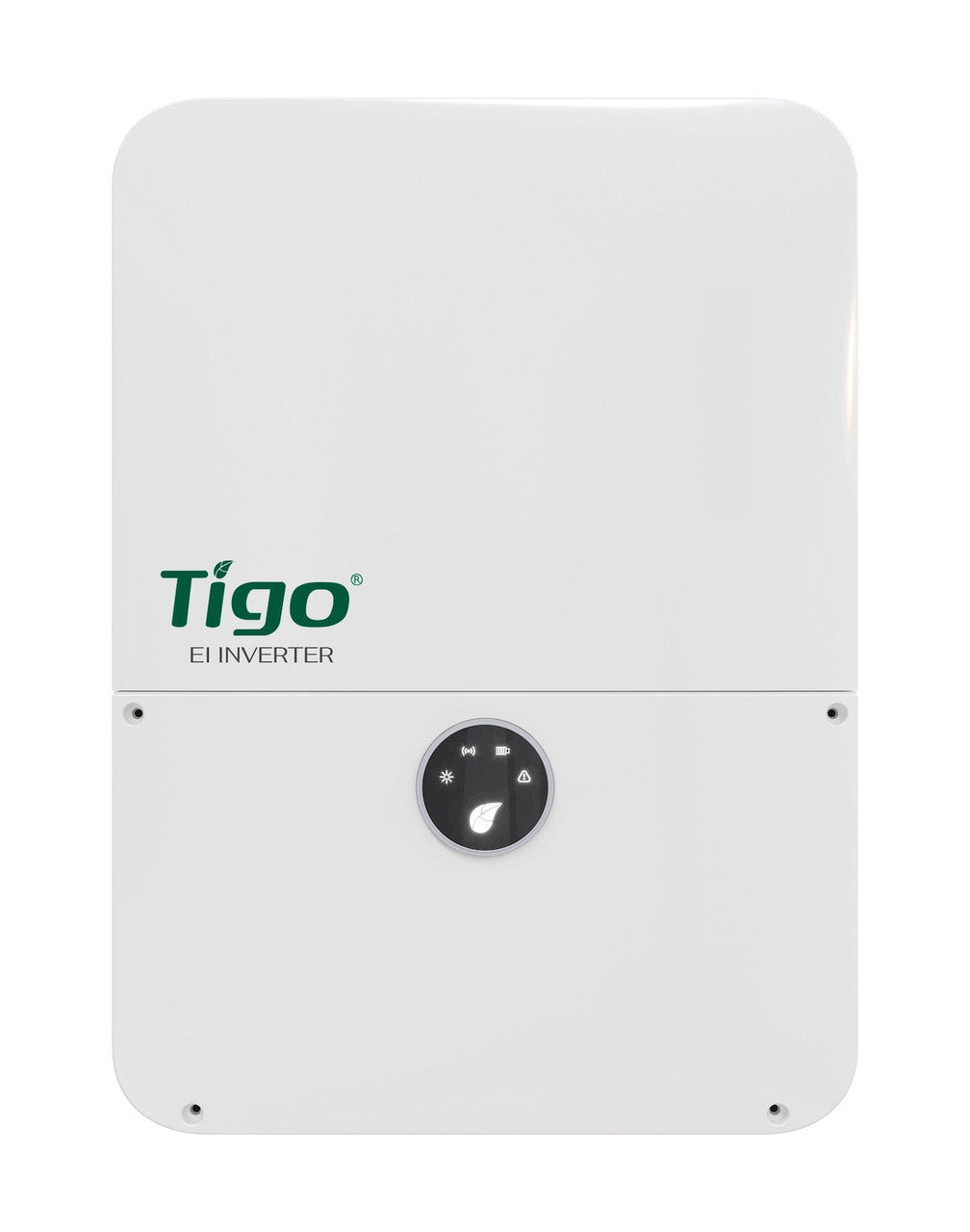

Tigo 7.6 kW EI Hybrid Inverter 601-2107K6-0003

The Tigo EI 7.6kW Hybrid Solar Inverter | 601-2107K6-0003 is a high-performance, single-phase hybrid inverter designed for residential solar energy generation, battery storage integration, and backup power applications. As a central component of the Tigo Energy Intelligence (EI) Solution, this inverter coordinates photovoltaic electricity production, battery charging and discharging, and household energy consumption when integrated with compatible Tigo equipment.

Featuring 7.6kW rated AC output at 240V, 98.4% maximum efficiency, three independent MPPT trackers, and up to 200% DC oversizing capability, the Tigo EI Inverter provides efficient solar power conversion and flexible photovoltaic array design.

The 601-2107K6-0003 ordering configuration includes built-in Wi-Fi connectivity and is specifically designed for compatibility with a 200A Automatic Transfer Switch (ATS). When combined with compatible Tigo EI or GO Battery equipment and the required transfer switch, the inverter supports battery energy storage and backup power functionality.

Designed to work within the Tigo Energy Intelligence ecosystem, the inverter supports module-level monitoring, optimization, and rapid shutdown when paired with compatible Tigo TS4 module-level power electronics. Its NEMA 4X/IP65 enclosure, integrated electrical protection, and natural convection cooling make it suitable for appropriately configured indoor and outdoor solar installations.

Key Technology

• 7.6kW Hybrid Inverter: Provides grid-connected solar power conversion with compatible battery storage and backup power integration.
• 200A ATS Compatibility: This specific ordering configuration is designed for use with a compatible 200A Automatic Transfer Switch.
• 98.4% Maximum Efficiency: Supports efficient conversion of photovoltaic DC electricity into usable AC electricity.
• Three Independent MPPT Trackers: Enables flexible photovoltaic array configurations with independently optimized solar inputs.
• Six PV String Inputs: Supports two photovoltaic strings per MPPT tracker.
• Up to 200% DC Oversizing: Supports photovoltaic array sizing with a DC-to-AC ratio of up to 2:1.
• 80V Startup Voltage: Enables inverter startup at relatively low photovoltaic input voltage.
• Integrated Battery Interface: Supports compatible Tigo battery storage systems for energy management and backup applications.
• High-Voltage Battery Architecture: Designed for compatible battery systems using a nominal 400V DC battery interface.
• Backup Power Capability: Supports backup electricity supply when configured with compatible battery and transfer switch equipment.
• Tigo Energy Intelligence Platform: Integrates solar generation, battery storage, monitoring, and energy management functions.
• Module-Level Monitoring: Supports compatible Tigo TS4 equipment for photovoltaic module performance visibility.
• Module-Level Optimization: Supports energy optimization through compatible Tigo TS4 module-level power electronics.
• Rapid Shutdown Compatibility: Supports NEC 690.12 rapid shutdown applications when paired with approved Tigo TS4 devices.
• Integrated AFCI Protection: Includes arc-fault circuit interruption for photovoltaic DC electrical protection.
• Built-In Wi-Fi: Provides standard wireless communication for compatible monitoring and system management.
• Optional Cellular Communication: Supports additional cellular connectivity through a compatible communication accessory.
• RS485 Communication: Provides an interface for compatible monitoring and control equipment.
• Integrated Revenue-Grade Metering: Meets ANSI C12.20 requirements for 0.5% metering accuracy.
• NEMA 4X/IP65 Enclosure: Provides environmental protection for appropriately installed indoor and outdoor applications.
• Natural Convection Cooling: Uses passive thermal management without a conventional forced-air cooling system.
• 152-Month Standard Warranty: Includes manufacturer warranty coverage equivalent to 12 years and 8 months, subject to applicable terms.

Best Uses

• Residential Solar and Battery Storage Systems: Suitable for homes combining photovoltaic generation with compatible Tigo battery storage.
• 200A Automatic Transfer Switch Installations: Designed for residential backup configurations using a compatible 200A ATS.
• Grid-Tied Solar Energy Systems: Converts photovoltaic DC electricity into AC power for compatible residential electrical services.
• Residential Backup Power Applications: Supports backup electricity supply when integrated with the required battery and transfer equipment.
• Multi-Orientation Rooftop Solar Arrays: Three MPPT trackers support different photovoltaic string orientations.
• High-Capacity Residential PV Arrays: Supports DC oversizing strategies within the inverter's specified electrical limits.
• Smart Home Energy Management: Integrates with the Tigo Energy Intelligence platform for compatible monitoring and control functions.
• Module-Level Monitored Solar Systems: Supports compatible Tigo TS4 devices for monitoring, optimization, and rapid shutdown.
• Indoor and Outdoor Hybrid Inverter Installations: Features a weather-resistant enclosure and natural convection cooling.

Product Specifications

Intelligent Residential Solar and Battery Integration with Tigo EI Technology

The Tigo EI 7.6kW Hybrid Solar Inverter 601-2107K6-0003 combines efficient solar power conversion, three independent MPPT trackers, high-voltage battery compatibility, built-in Wi-Fi, module-level monitoring integration, and comprehensive electrical protection. With its dedicated 200A ATS compatibility, the inverter provides a flexible foundation for residential solar installations requiring compatible battery storage and backup power functionality.
