Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
490-00000-51

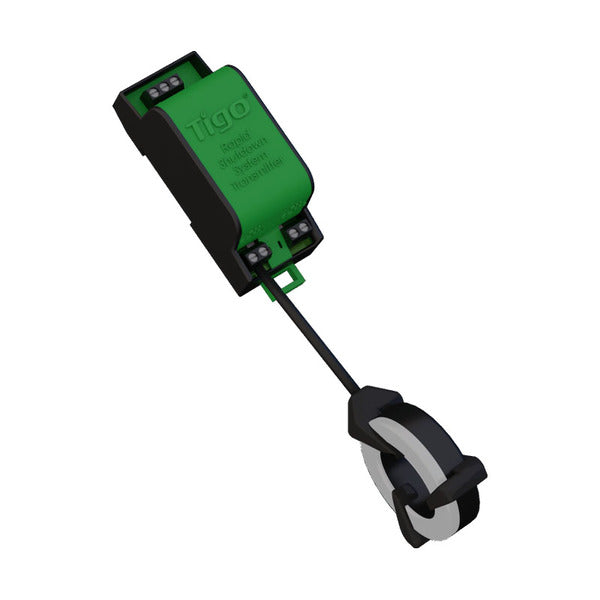

Tigo RSS Transmitter 490-00000-51 Rapid Shutdown Activator DIN Mount
Features
The Tigo RSS Transmitter is a rapid shutdown activator designed to ensure compliance with NEC 690.12 (2017, 2020, and 2023) requirements:
- PLC Communication: Uses powerline communication to send keep-alive signals to Tigo MLPE devices.
- Scalable Solution: Supports residential to large utility-scale projects with up to 10 synchronized transmitters.
- Pure Signal Technology: Mitigates crosstalk across multiple transmitters by coordinating keep-alive signals.
- Configurable Design: Available with single or dual RSS cores.
- Ease of Installation: Designed for fast and simple integration with PV systems.
Benefits
- Ensures rapid shutdown compliance for safety.
- Reduces overall system costs with its integrated features.
- Compatible with most inverters on the market.
- Supports automatic or manual shutdown options.
Specifications
| Category | Specification |
|---|---|
| Electrical Data | |
| Input Voltage | 12VDC ±2% |
| Input Current | 1A |
| Power Consumption | 5.5W (max), 0.85W (average) |
| Power Standby | 0.06W |
| Core | |
| Conductor Length | 500 mm (19.7 in) |
| Max Current per Core | 160A |
| Max String Voltage | 1500VDC |
| Max Strings/Core | 10 |
| Max PV Modules/String | 30 |
| Environmental | |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Enclosure Temp Range | -20°C to 50°C (-4°F to 122°F) |
| Enclosure Rating | IP68, NEMA 3R |
| Dimensions | |
| Core Dimensions | 3.58 × 1.50 × 1.63 in |
| Enclosure Dimensions | 10.63 × 6.69 × 4.33 in |
Why Tigo?
Tigo is a pioneer in smart module technology, offering solutions that optimize, monitor, and manage photovoltaic (PV) systems. Established in 2007, Tigo's headquarters are located in Silicon Valley, California. The company has cultivated a reputation for innovation in the solar industry, particularly with its Flex MLPE (Module Level Power Electronics) platform.
Tigo's key technology, the TS4 platform, allows for customizable performance enhancements, enabling solar installations to meet specific project needs such as optimization, monitoring, and rapid shutdown requirements.
Tigo's products are designed to integrate seamlessly with a variety of inverters and modules, ensuring flexibility and scalability. With a commitment to quality and longevity, Tigo offers industry-leading warranties, typically providing up to 25 years of coverage for its products.
