Thornova 600W (Pallet of 36) Tangra M Pro N‑Type Bifacial Dual‑Glass Solar Panel TS‑BGT72(600)
TS-BGT72(600)

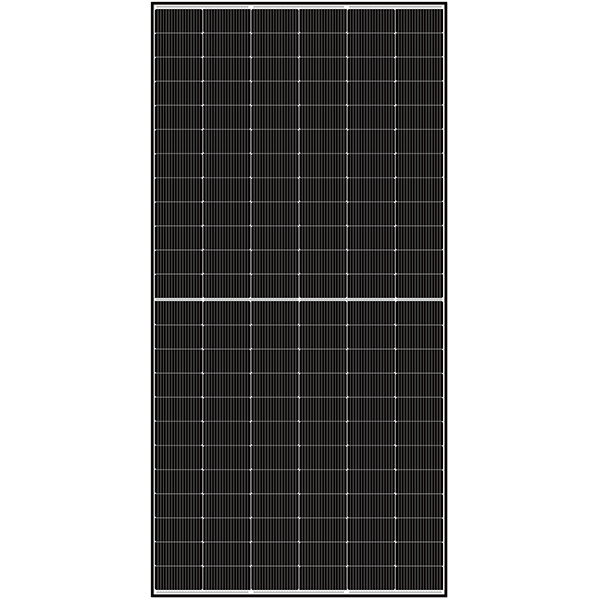

Thornova 600W Tangra M Pro N‑Type Bifacial Dual‑Glass Solar Panel TS‑BGT72 (600)
Pallet Only: 36 panels/pallet
The Thornova TS‑BGT72(600) is a high‑efficiency N‑Type bifacial dual‑glass module engineered for superior energy yield and long life. With 144 half‑cut cells, low temperature coefficient, and robust mechanical ratings, it’s ideal for utility and large commercial systems.
Key Benefits
High Power Density: Up to 600W output with 23.2% module efficiency for fewer modules per array.
Bifacial Energy Gain: Rear‑side generation can boost yield (site‑dependent), maximizing kWh production.
Low Degradation: 0.40% annual degradation and extended linear warranty for long‑term performance.
Heat Resilience: Low Pmax temperature coefficient (‑0.30%/°C) sustains output in hot climates.
Built for Tough Sites: 5400 Pa front / 2400 Pa rear load ratings and IP68 junction box.
Special Technology
N‑Type Cell Architecture: Naturally resists LID for stable long‑term performance.
Dual‑Glass Encapsulation: 2.0 mm AR‑coated front + 2.0 mm heat‑strengthened back glass for durability.
Triple EL Testing: 100% module screening to minimize hidden micro‑cracks.
Optimized Electrical Design: Lower operating current reduces hot‑spot risk and improves reliability.
Warranty
30‑Year Linear Power Output Guarantee (low annual degradation) and 15‑Year Product Workmanship Guarantee.
Best Uses
Utility‑Scale Plants: High kW per string and tracker‑friendly bifacial design.
Large Commercial Rooftops: Reduces BOS and installation time with higher power bins.
Ground‑Mount & Trackers: Excellent choice where rear‑side albedo can be leveraged.
Bifacial Design, N-Type Half-Cells, and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the Thornova TS‑BGT72(600) solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | TS‑BGT72(600) |
| Cell Type | N‑Type Monocrystalline, Half‑Cut |
| Number of Cells | 144 (2×72) Bifacial |
| Max Power (Pmax) | 600 W (STC) / 460 W (NMOT) |
| Open Circuit Voltage (Voc) | 52.73 V (STC) / 50.48 V (NMOT) |
| Short Circuit Current (Isc) | 14.00 A (STC) / 11.28 A (NMOT) |
| Voltage at Max Power (Vmp) | 44.76 V (STC) / 42.85 V (NMOT) |
| Current at Max Power (Imp) | 13.41 A (STC) / 10.73 A (NMOT) |
| Module Efficiency | 23.2% |
| Power Tolerance | (0, +5 W) |
| Temperature Coefficient (Pmax) | ‑0.30%/°C |
| Temperature Coefficient (Voc) | ‑0.28%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| Operating Temperature | ‑40°C to +85°C |
| Nominal Module Operating Temp (NMOT) | 43 ± 2°C |
| Max System Voltage | 1500 V DC |
| Max Series Fuse Rating | 30 A |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear) |
| Front Glass | 2.0 mm, AR‑coated tempered glass |
| Back Glass | 2.0 mm, heat‑strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 bypass diodes |
| Cable (Output Wire) | 4.0 mm² |
| Cable Length | 300 mm / 1200 mm / Custom |
| Connector | MC4‑compatible |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.18 in |
| Weight | 69.45 lb |
| Packaging | 36 pcs/pallet; 720 pcs/40’ HQ |
| Quality Systems / Standards | ISO 9001, ISO 14001, ISO 45001, SA8000 |
| Warranty | 30‑Year Linear Output; 15‑Year Product |
About Thornova:
Thornova Solar, founded in the US in 2022 under Yungeng Solar Group, designs and manufactures high‑efficiency photovoltaic modules (400–720 Wp; PERC, bifacial, TOPCon, N‑type). It has a 2.5 GW production facility in Vietnam and global sales offices.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 15-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the TS-BGT72(600) panel?
The TS-BGT72(600) produces up to 600 watts of power, making it an excellent choice for high-output residential, commercial, and utility-scale installations.
Q: Are TS-BGT72(600) panels suitable for areas with low sunlight?
Yes, the TS-BGT72(600) is engineered to deliver strong performance even in low-light conditions, such as cloudy weather, hazy skies, and during early morning or late afternoon hours.
Q: What kind of warranty does Tongwei offer for the TS-BGT72(600) panel?
Tongwei provides a 15-year product warranty and a 30-year linear power output warranty, ensuring dependable performance for decades.
Q: Are these panels compatible with different mounting systems?
Yes, the TS-BGT72(600) is compatible with a wide range of industry-standard mounting systems, making it ideal for both rooftop and ground-mounted setups.
Q: How durable are TS-BGT72(600) panels in harsh weather conditions?
Built to withstand extreme weather, the TS-BGT72(600) can handle heavy snow loads, strong winds, and high temperatures. Its anti-reflective tempered glass enhances both durability and energy capture.
Q: Can TS-BGT72(600) panels help me save on energy costs?
Absolutely! With its high efficiency, the TS-BGT72(600) generates more electricity per square foot, reducing energy bills and accelerating return on investment.
Q: How many panels do I need for my home?
This depends on your energy usage and roof or ground space. For example, a property consuming around 10,000 kWh/year would typically need about 17 TS-BGT72(600) panels. For an exact number, consult a certified solar installer.
Q: How many panels are in each pallet?
Each pallet contains 36 high-efficiency TS-BGT72(600) panels, offering value and convenience for larger projects.
