Thornova 595W (Pallet of 36) Tangra M Pro N-Type Bifacial Dual-Glass Solar Panel TS-BGT72 (595)
TS-BGT72(595)

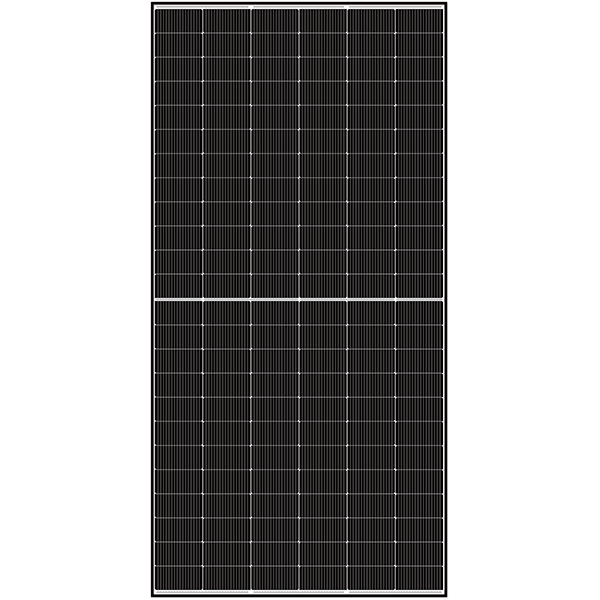

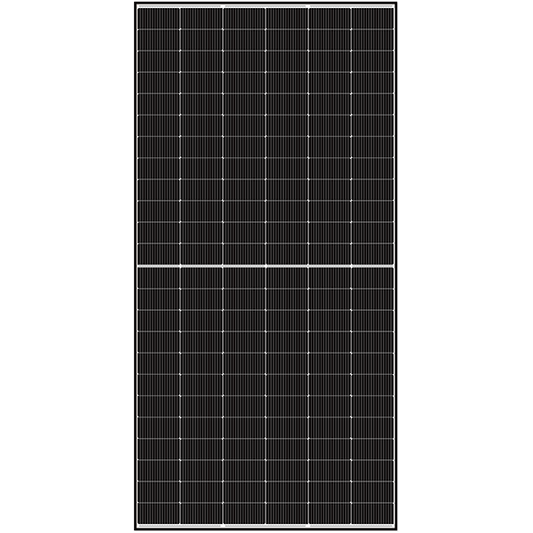

Thornova 595W N-Type Bifacial Dual-Glass Solar Panel TS-BGT72(595)
Pallet only: 36 Panel/Pallet
Key Benefits
High Output: Produces up to 595W with 23.0% efficiency for maximum energy harvest.
Bifacial Energy Gain: Rear-side generation can boost output by up to 30% depending on site conditions.
Low Degradation: Only 0.40% annual degradation with a 30-year linear power warranty.
Excellent Temperature Performance: Low Pmax coefficient of -0.30%/°C maintains high yields in hot climates.
Durability: Dual-glass construction and IP68 junction box withstand 5400 Pa snow and 2400 Pa wind loads.
Special Technology
N-Type Cell Advantage: Naturally resists Light-Induced Degradation (LID) for stable long-term performance.
Triple EL Tested: Ensures minimal micro-cracks and superior quality control.
Optimized Electrical Design: Lower operating current reduces hot-spot risk and improves overall reliability.
Warranty
30-Year Linear Power Output Warranty (≥87.4% at year 30) and 15-Year Product Workmanship Warranty.
Best Uses
Utility-Scale Projects: High power density reduces land use and BOS costs.
Commercial Rooftops: Maximizes kWh per m² for large installations.
Tracking Systems: Ideal for bifacial trackers to leverage rear-side albedo.
Bifacial Design, N-Type Half-Cells, and Dual Glass Structure Explained
These advanced features define the high-efficiency performance and extended durability of the Thornova TS-BGT72(595) solar panel:
Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.
N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.
Dual-Glass Structure
Encased between two layers of tempered glass, this panel provides exceptional mechanical strength and environmental protection. The dual-glass architecture enhances resistance to moisture, UV exposure, and extreme weather conditions like high winds and heavy snow. This design minimizes degradation and extends module lifespan, making it ideal for demanding installations requiring long-term reliability.
Specifications Table
| Specification | Data |
|---|---|
| Model | TS-BGT72(595) |
| Cell Type | N-Type Monocrystalline, Half-Cut |
| Number of Cells | 144 (2×72) Bifacial |
| Max Power (Pmax) | 595 W (STC) / 456 W (NMOT) |
| Open Circuit Voltage (Voc) | 52.54 V (STC) / 50.30 V (NMOT) |
| Short Circuit Current (Isc) | 13.95 A (STC) / 11.24 A (NMOT) |
| Voltage at Max Power (Vmp) | 44.58 V (STC) / 42.68 V (NMOT) |
| Current at Max Power (Imp) | 13.35 A (STC) / 10.68 A (NMOT) |
| Module Efficiency | 23.0% |
| Power Tolerance | (0, +5 W) |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Temperature Coefficient (Voc) | -0.28%/°C |
| Temperature Coefficient (Isc) | +0.04%/°C |
| Operating Temperature | -40°C to +85°C |
| Nominal Module Operating Temp (NMOT) | 43 ± 2°C |
| Max System Voltage | 1500 V DC |
| Max Series Fuse Rating | 30 A |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear) |
| Front Glass | 2.0 mm, AR-coated tempered glass |
| Back Glass | 2.0 mm, heat-strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 bypass diodes |
| Cable (Output Wire) | 4.0 mm² |
| Cable Length | 300 mm / 1200 mm / Custom |
| Connector | MC4 Compatible |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.18 in |
| Weight | 69.45 lb |
| Packaging | 36 pcs/pallet; 720 pcs/40’ HQ |
| Certifications | IEC 61215 / 61730, ISO 9001, ISO 14001, ISO 45001, SA8000 |
| Warranty | 30-Year Linear Output; 15-Year Product |
About Thornova:
Thornova Solar, founded in the US in 2022 under Yungeng Solar Group, designs and manufactures high‑efficiency photovoltaic modules (400–720 Wp; PERC, bifacial, TOPCon, N‑type). It has a 2.5 GW production facility in Vietnam and global sales offices.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 15-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the TS-BGT72(595) panel?
The TS-BGT72(595) panel produces 595 watts of power, making it a highly efficient choice for both residential and commercial installations.
Q: Are TS-BGT72(595) panels suitable for areas with low sunlight?
Yes, the TS-BGT72(595) is designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and early mornings or late afternoons.
Q: What kind of warranty does Tongwei offer for the TS-BGT72(595) panel?
Tongwei offers a 15-year product warranty and a 30-year linear power output warranty, ensuring the panel delivers reliable performance over time.
Q: Are these panels compatible with different mounting systems?
Yes, the TS-BGT72(595) is compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted systems.
Q: How durable are TS-BGT72(595) panels in harsh weather conditions?
The TS-BGT72(595) is built to withstand extreme weather, including heavy snow, strong winds, and high heat. Its design includes anti-reflective glass, which enhances durability and efficiency.
Q: Can TS-BGT72(595) panels help me save on energy costs?
Absolutely! The high efficiency of the TS-BGT72(595) allows you to generate more electricity per square foot, which can reduce your energy bills and shorten the payback period on your solar investment.
Q: How many panels do I need for my home?
This depends on your energy usage and available space. As a general guide, for a residence or business using about 10,000 kWh/year, you would need approximately 17 to 18 TS-BGT72(595) panels. Consult with a certified installer to get a precise estimate.
Q: How many panels are in each pallet?
Each pallet includes 36 high-efficiency TS-BGT72(595) panels. By purchasing full pallets, you ensure both value and convenience for larger installations.
