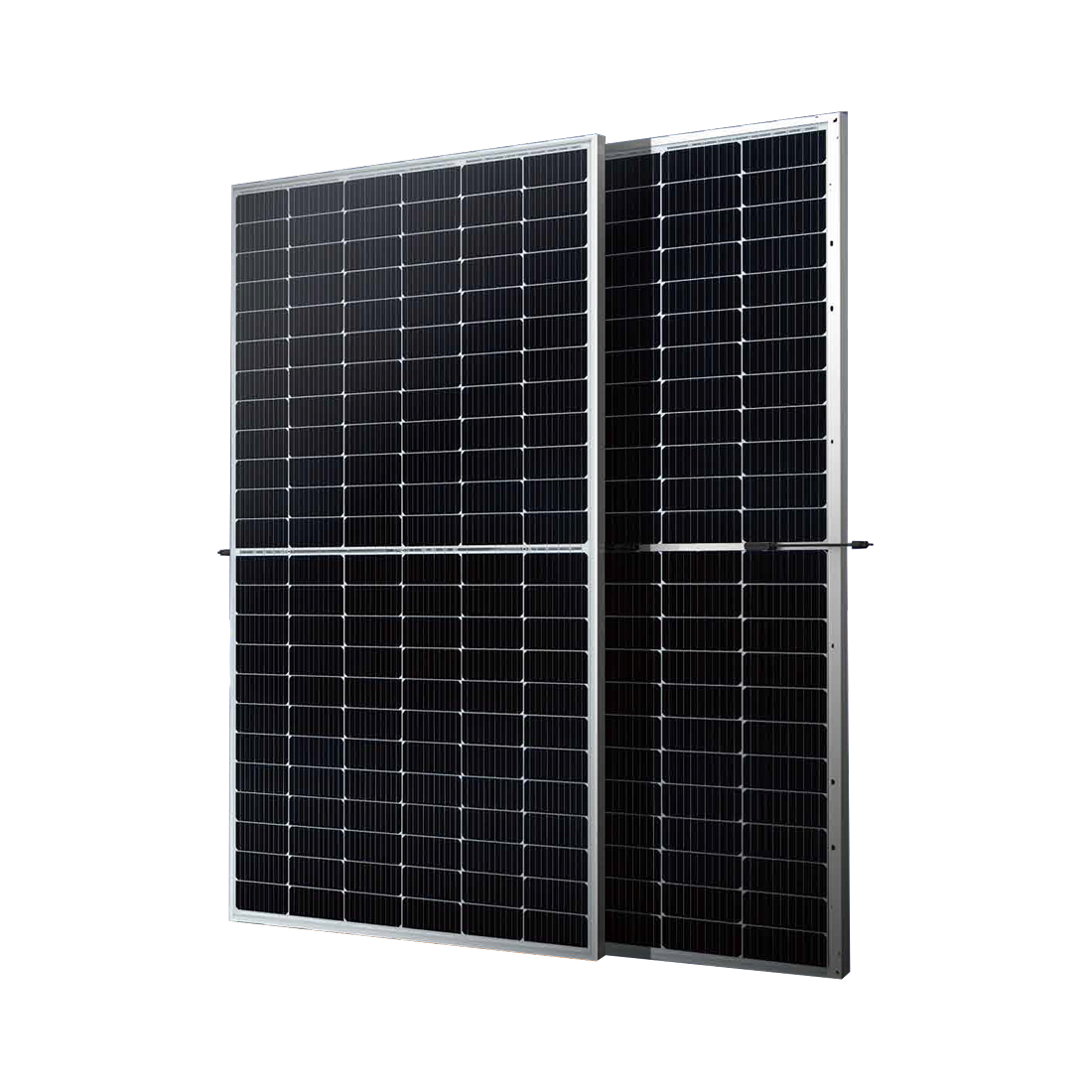

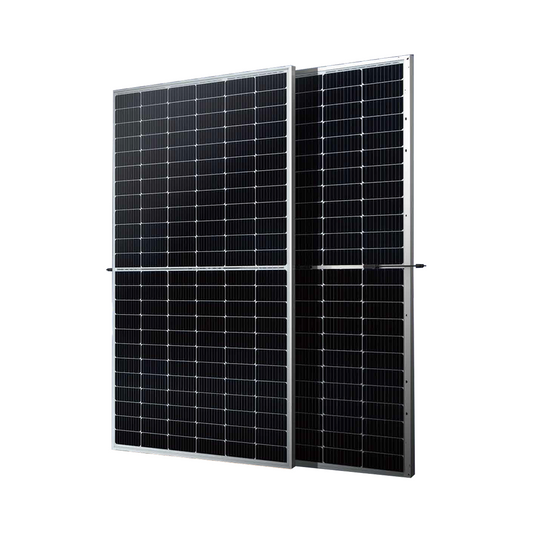

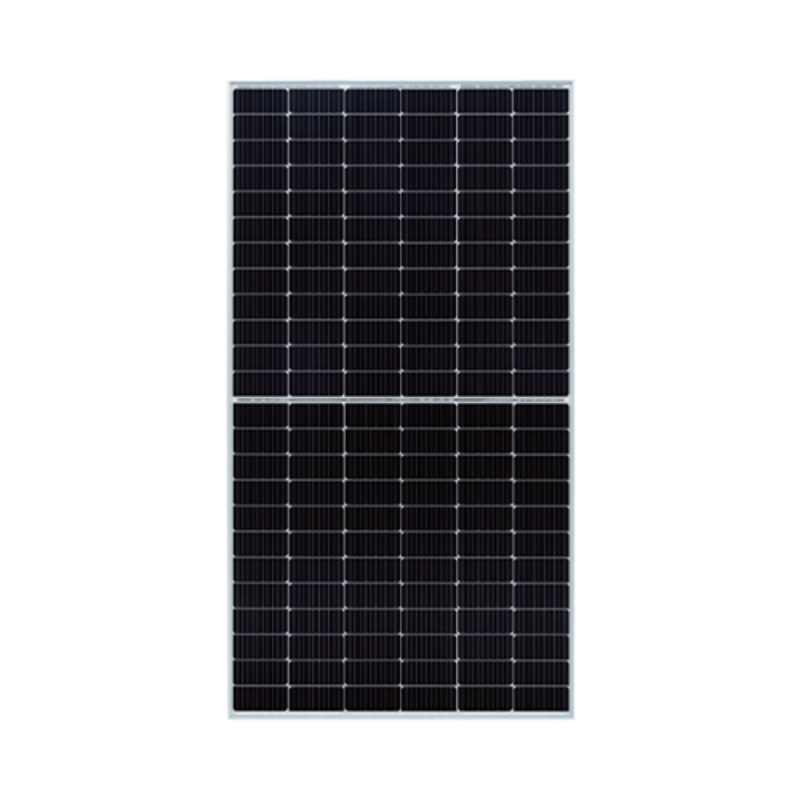

Talesun Solar 540W Half-Cell Module TD7G72M-540

Talesun Solar 540W Half-Cell Module TD7G72M-540

Regular price $205
Regular price $219.50 -6% Sale price $205
7% OFF
New
LESS THAN 50
Leave a Review
Sale

Talesun Solar 540W Half-Cell Module TD7G72M-540

Talesun Solar 540W Half-Cell Module TD7G72M-540

Talesun Solar
MPN No: TD7G72M-540
In Stock
Regular price $205
Regular price $219.50 -6% Sale price $205

1
2
3
4
5
6

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date Jan 02 - 05 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $205
Regular price $219.50 -6% Sale price $205

Specifications

.PDF
Datasheet
Cell Type
Mono-Crystalline
Number of Cells
144
Open-Circuit Voltage (VOC)
49.4 V
Frame and Backsheet
Anodized aluminum
.PDF
Datasheet

Talesun Solar 540W Half-Cell Module - TD7G72M-540

Key Features

  • 10BB Half-Cut Cell Technology: Innovative design with lower internal current and reduced resistive losses for enhanced efficiency.
  • Bifacial PERC Technology: Offers 5%-25% additional energy yield depending on environmental conditions.
  • Durable Design: IP68-rated junction box and wear-resistant dual-glass construction for reliable operation in harsh environments.
  • PID Resistance: Twice the industry standard for anti-PID performance as tested by TÜV SÜD.
  • Global Certification: Complies with IEC 61215/61730 and ISO standards for quality, environmental, and occupational safety management systems.

Applications

  • High-efficiency power generation in residential, commercial, and utility-scale installations.
  • Designed for use in high-humidity, windy, and dusty environments.
  • Ideal for bifacial setups requiring increased energy output.

Installation

  • Mounting: Standard mounting holes for easy installation.
  • Operating Conditions: Temperature range from -40°C to +85°C, with a maximum system voltage of 1500 V/DC.
  • Mechanical Load: Front-side withstands 5400 Pa and backside 2400 Pa.

Specifications

Parameter Value
Model TD7G72M/540W
Maximum Power (Pmax) 540 W
Operating Voltage (Vmpp) 41.2 V
Operating Current (Impp) 13.11 A
Open-Circuit Voltage (Voc) 49.4 V
Short-Circuit Current (Isc) 13.87 A
Module Efficiency 20.7%
Cell Type Monocrystalline (182×182 mm)
Number of Cells 144 (6×24)
Weight 70.5 lbs
Dimensions 90.55×44.68×1.38 in
Glass Type 2.0 mm AR-coated, heat-strengthened
Frame Material Anodized Aluminum Alloy
Junction Box IP68-rated, 3 Bypass Diodes
Maximum System Voltage 1500 V/DC
Nominal Operating Temp. 43°C ± 2°C
Temperature Coefficients -0.36%/°C (Pmax), +0.043%/°C (Isc)
Packing 31 pieces/carton, 620 pieces/container



Why Choose Talesun Solar Panels?

Talesun solar panels rank near the top of the Bloomberg Tier 1 list.
With a steadfast dedication to excellence and an emphasis on quality, Talesun has reliably provided innovative solar solutions to address the increasing global energy demand.
Established in 2010 as a division of the Zhongli Group, Talesun has quickly broadened its international reach, establishing itself as a significant contender in the solar sector.
The company's cutting-edge production facilities and commitment to research and development have allowed it to consistently offer high-performance solar products.

Why Buy From US Solar Supplier?

As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.

Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.

Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.

Expert Support: Our team is here to guide you every step of the way.

Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.

Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!

FAQs

Q: What is the power output of the Talesun TD7G72M-540 module?
The Talesun TD7G72M-540 module produces 540 watts of power, making it an excellent choice for both residential and commercial installations requiring high energy yields.

Q: Are Talesun TD7G72M-540 modules suitable for areas with low sunlight?
Yes, the Talesun TD7G72M-540 modules are designed to perform efficiently even in low-light conditions, such as hazy, cloudy skies, and during early mornings or late afternoons.

Q: What kind of warranty does Talesun offer for the TD7G72M-540 module?
Talesun provides a 12-year product warranty and a 30-year linear power output warranty, ensuring consistent and reliable performance over the module's lifetime.

Q: Are these modules compatible with different mounting systems?
Yes, the Talesun TD7G72M-540 modules are compatible with a wide range of standard mounting systems, making them suitable for both roof-mounted and ground-mounted installations.

Q: How durable are the Talesun TD7G72M-540 modules in harsh weather conditions?
The TD7G72M-540 modules are engineered to withstand extreme weather conditions, including heavy snow loads, strong winds, and high temperatures. Their design incorporates anti-reflective and self-cleaning glass, enhancing both durability and efficiency.

Q: Can Talesun TD7G72M-540 modules help me save on energy costs?
Yes, the high efficiency of the TD7G72M-540 module allows for greater electricity generation per square foot, leading to reduced energy bills and a quicker return on your solar investment.

Q: How many modules do I need for my home?
The number of modules depends on your energy consumption and available installation space. For a typical residence or business using about 10,000 kWh/year, you would need approximately 19 to 20 Talesun TD7G72M-540 modules. Consult a certified installer for an accurate estimate tailored to your needs.

Q: How many modules are in each pallet?
Each pallet contains 27 high-efficiency Talesun TD7G72M-540 modules, offering value and convenience for larger projects.

Q: Can I order less than a full pallet?
Contact US Solar Supplier for details on ordering individual modules or smaller quantities.

Q: Are these modules available for immediate shipping?
Yes, the Talesun TD7G72M-540 modules are in stock and ready to ship from our warehouse in Indiana, ensuring fast and efficient delivery for your solar project.
