Talesun 620W (Pallet of 36) BIPRO Bifacial Dual Glass N Type Solar Panel TM3G66M-620

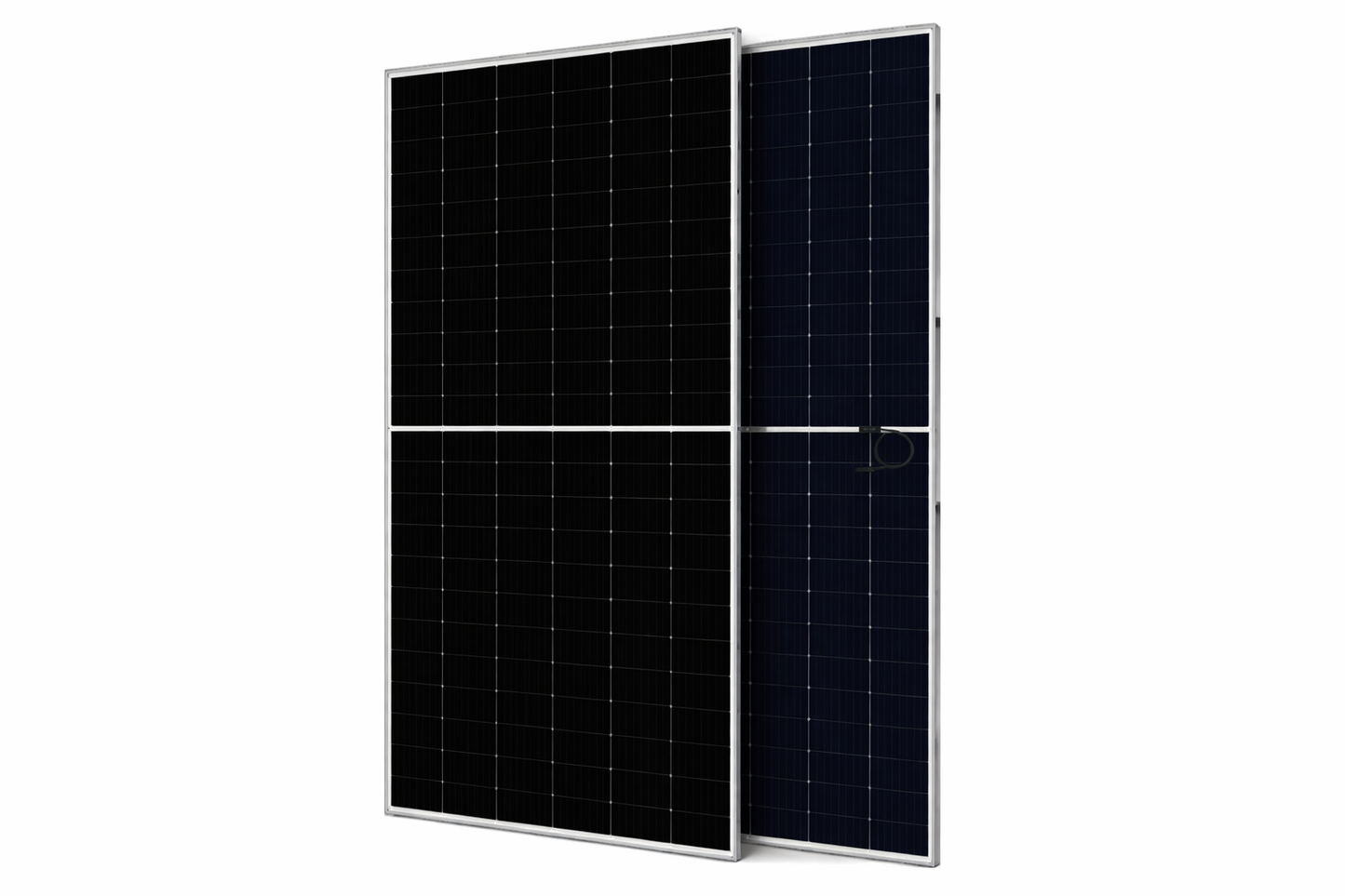

The TM3G66M-620 from Talesun Solar is a high-performance 132-cell bifacial dual-glass N-type TOPCon module delivering up to 620W of front-side output.
Key Technology
-
N-Type TOPCon 16BB Half-Cut Cells
Lower LID/LeTID degradation and superior low-light performance for improved lifetime energy production. -
Bifacial Dual-Glass Construction
Rear-side gain depending on albedo significantly reduces LCOE and increases total system yield. -
Excellent Anti-PID Performance
Passed 192-hour Anti-PID testing for enhanced durability in harsh environments. -
Robust Environmental Resistance
Designed for high-humidity, dusty, and windy regions with IP68-rated junction box. -
Industry-Leading Degradation Rate
≤1% first-year degradation and ≤0.4% annual linear degradation over 30 years.
Best Uses
-
Utility-Scale Solar Farms
High 620W power output reduces BOS costs and improves installation efficiency. -
Commercial & Industrial Ground-Mount Systems
Optimized for tracker systems and high-density arrays. -
Bifacial Installations
Maximizes yield over reflective surfaces such as white membrane roofs or light-colored ground.
Warranty
- Product Warranty: 12 Years
- Performance Warranty: 30-Year Linear Power Output Guarantee
- First-Year Degradation: ≤1%
- Annual Degradation: ≤0.4%
- Guaranteed Output at Year 30: 87.4%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Talesun Solar |
| Model | TM3G66M-620 |
| Cell Type | N-Type Mono-Crystalline, 16BB |
| Cell Configuration | 132 cells (6×22) |
| Maximum Power (Pmax) | 620 W |
| Module Efficiency | 23.00% |
| Maximum Power Voltage (Vmp) | 41.20 V |
| Maximum Power Current (Imp) | 15.05 A |
| Open Circuit Voltage (Voc) | 49.60 V |
| Short Circuit Current (Isc) | 15.94 A |
| Power Tolerance | 0~+5 W |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.24% / °C |
| Temperature Coefficient (Isc) | +0.043% / °C |
| Nominal Module Operating Temp (NMOT) | 43 ±2°C |
| Dimensions | 93.78 × 44.65 × 1.18 in |
| Weight | 74.29 lbs |
| Front Glass | 2.0 mm AR Coating Semi-tempered |
| Back Glass | 2.0 mm Glazed Semi-tempered |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 bypass diodes |
| Connector | MC4 / MC4-EVO2 compatible |
| Mechanical Load | 5400 Pa (Front) / 2400 Pa (Back) |
| Bifaciality Factor | 80% ±5% |
| Packing | 36 pcs per pallet (USA) / 540 pcs per 40’ HQ |
About Talesun Solar:
Talesun Solar is a globally recognized PV manufacturer producing high-efficiency TOPCon and bifacial modules for residential, commercial, and utility-scale markets. With IEC, UL, and ISO-certified manufacturing systems, Talesun modules deliver dependable performance and long-term reliability worldwide.
620W High-Density Bifacial Module for Large-Scale Solar
The TM3G66M-620 combines strong 23.0% efficiency, excellent temperature performance, and bifacial energy gain potential in a rugged dual-glass construction. Ideal for projects focused on maximizing long-term energy production and reducing LCOE.
