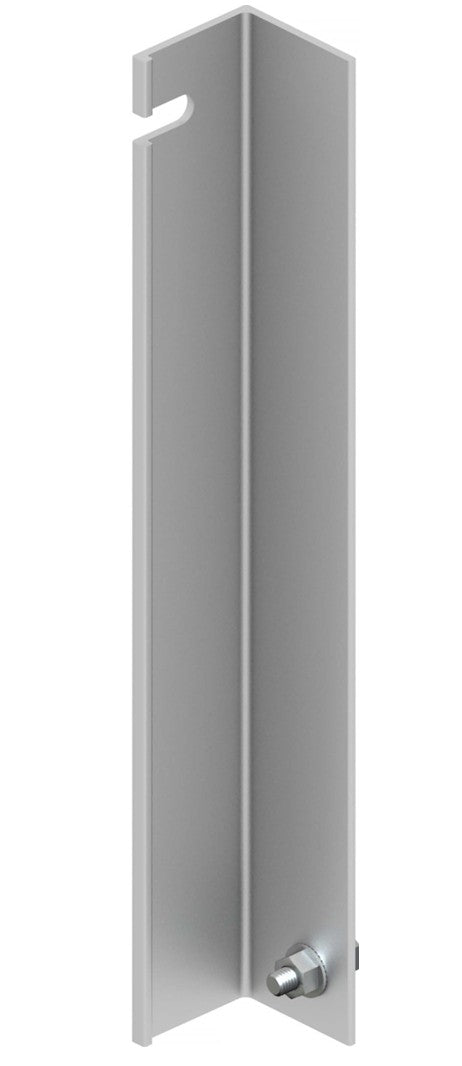

SunModo Tilt Leg 14" Mill Finish TILT-14-M
MPN No: TILT-14-M
Expected ship date Nov 26 - Dec 03
In Stock
$13.11
Regular price
$13.11
New
60 IN STOCK
SunModo Tilt Leg 14" Mill Finish TILT-14-M
SunModo Tilt Leg 14" Mill Finish TILT-14-M
In Stock
MPN No: TILT-14-M
Regular price
$13.11
Expected ship date Nov 26 - Dec 03
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$13.11
SunModo Tilt Leg 14" Mill Finish TILT-14-M
MPN No:
TILT-14-M
Expected ship date Nov 26 - Dec 03
In Stock
SunModo Tilt Leg 14" Mill Finish TILT-14-M
The TILT-14-M is SunModo’s 14-inch rear tilt leg for the SMR Tilt-Up system. Paired with the 8″ front leg, it creates fixed tilt angles (10° or 20° typical) for low-slope and flat roofs. Built from aluminum with stainless hardware, it integrates cleanly with SMR rails for a fast, code-ready install.
Key Benefits
Proven Tilt Geometry: Standard 8″/14″/25″ legs deliver common 10° and 20° array tilts.
Installer-Friendly: Designed as part of the SMR Tilt-Up family for quick, repeatable field assembly.
Durable Build: Aluminum leg with stainless steel fasteners for long outdoor service life.
Special Technology
SMR System Integration: Works with SMR rails and Pop-On clamps (30–48 mm module frame range) for bonded arrays.
Warranty
Manufacturer’s standard racking hardware warranty (SunModo).
Best Uses
Flat & Low-Slope Roofs: Fixed-tilt PV rows targeting 10°–20° pitch with SMR rails.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | TILT-14-M |
| Product Type | Rear Tilt Leg (SMR Tilt-Up System) |
| Nominal Length | 14 in (≈ 360 mm rear leg) |
| Typical Tilt Angles | 10° or 20° (with 8″ front leg) |
| Material | Aluminum leg; stainless steel hardware |
| Finish | Mill |
| Rail Compatibility | SMR rails (SMR100/SMR300) |
| Module Clamp Range (system) | 30–48 mm frame height (SMR Pop-On clamps) |
| Dimensions / Hole Pattern | Fixed-tilt leg format (see SMR Tilt-Up cut sheet) |
| Weight | |
| Warranty | Manufacturer Standard Warranty |
