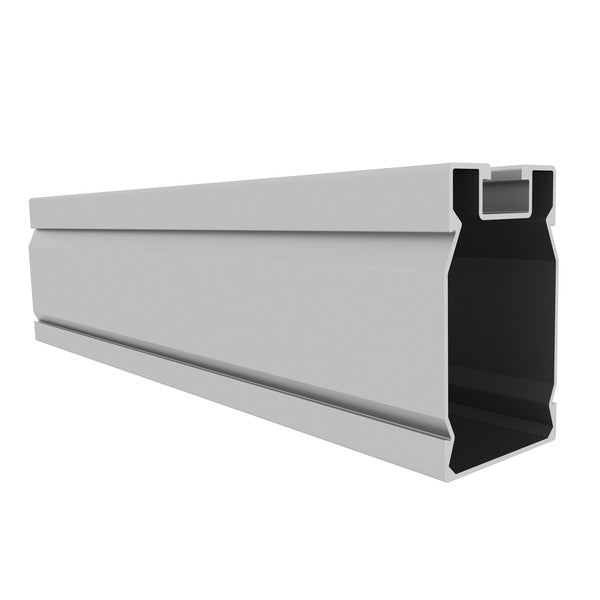

SunModo SMR100 Rail Mill Finish 168" Long SMR100-168-M
The SMR100-168-M is SunModo’s lightweight SMR100 extrusion in a 168″ (14 ft) length and mill finish. Built from 6005-T5 aluminum with strong section properties, it pairs with Pop-On clamps and SMR100 splices for fast, code-ready rooftop or ground-mount assemblies.
Key Benefits
Lightweight & Strong: Efficient profile with solid Sx/Sy for long spans at low weight.
Drop-in Hardware: Works with SMR Pop-On mid/end clamps (30–48 mm module range, 13 mm hex).
Complete Ecosystem: Matching splices, L-foot adaptors, wire clips and end caps simplify BOMs.
Special Technology
SMR Platform: Rail geometry supports bonded Pop-On clamps and quick, repeatable assembly.
Warranty
Manufacturer’s standard racking hardware warranty (SunModo).
Best Uses
Pitched Roof & Ground-Mount: Rail runs where a lighter section reduces handling and shipping while meeting load tables.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | SMR100-168-M (aka A20422-168-ML) |
| Rail Family | SMR100 |
| Length | 168 in (14 ft) |
| Finish | Mill (natural aluminum) |
| Material | 6005-T5 Aluminum |
| Unit Weight | 0.4126 lb/ft (0.614 kg/m) |
| Weight (this piece) | 5.78 lb (0.4126 × 14 ft) |
| Section Properties | Sx 0.196 in³ · Sy 0.146 in³ · Area 0.352 in² |
| Compatible Clamps | SMR Pop-On Mid Clamp (K10417-004/-BK4), End Clamp (K10418-004/-BK4); 30–48 mm, 13 mm hex |
| Rail Splice | SMR100 Rail Splice (K10421-004) |
| L-Foot Adaptor | SMR100 L-Foot Adaptor (K10433-002 / K10433-BK2) |
| Accessories | SMR100 End Cap (C10051-BK1); Wire Mgmt Clip (C10055-BK1) |
About SunModo:
SunModo is a U.S.-based manufacturer of innovative solar racking systems focused on simplifying installation while ensuring lasting structural performance. Headquartered in Vancouver, Washington, SunModo offers a full line of mounting solutions, including rail-less, roof-mount, and ground-mount systems.
Engineered to meet UL and NEC standards, their products are widely trusted for residential, commercial, and industrial PV installations. SunModo’s mission is to drive down the total cost of solar deployment through product innovation and installer-friendly designs.
