SunModo SMR100 Rail Black Anodized Finish 168" Long SMR100-168-B

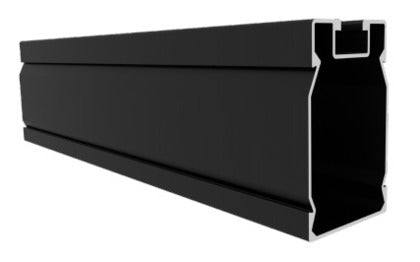

The SMR100-168-B is SunModo’s SMR100 extrusion in a 168″ (14 ft) length with a black anodized finish. Built from 6005-T5 aluminum, the SMR100 profile delivers strong section properties for light, fast, and code-ready PV rail runs on pitched roofs or SunTurf® frames.
Key Benefits
Lightweight Strength: Section properties (Sx ≈ 0.196 in³; Sy ≈ 0.146 in³) balance stiffness with low weight for easy handling.
Durable Alloy: 6005-T5 aluminum with ~34.8 ksi yield and ~37.7 ksi ultimate tensile strength.
System Compatible: Works with SMR Pop-On mid/end clamps, rail splices, L-foot adaptors, end caps, and wire clips.
Special Technology
Pop-On Hardware: SMR ecosystem clamps use a 13 mm (1/2″) hex and fit 30–48 mm module frames for fast installs.
Warranty
Manufacturer’s standard racking hardware warranty (SunModo).
Best Uses
Pitched Roof Arrays & SunTurf® Rows: Long rail runs where a lighter section is sufficient and fast Pop-On clamping is preferred.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | SMR100-168-B (aka A20422-168-BK) |
| Rail Family | SMR100 |
| Length | 168 in (14 ft) |
| Finish | Black anodized |
| Material | 6005-T5 Aluminum |
| Yield / Ultimate Tensile | ≈ 34.8 ksi / ≈ 37.7 ksi |
| Section Properties | Sx ≈ 0.196 in³; Sy ≈ 0.146 in³; Area ≈ 0.352 in² |
| Weight (per foot) | 0.4126 lb/ft |
| Weight (this piece) | 5.78 lb (0.4126 × 14 ft) |
| Compatible Clamps | SMR Pop-On Mid Clamp (K10417-004/-BK4), SMR Pop-On End Clamp (K10418-004/-BK4); 13 mm hex; 30–48 mm frames |
| Accessories | SMR100 Rail Splice (K10421-004); SMR100 L-Foot Adaptor (K10433-002/-BK2); SMR100 End Cap (C10051-BK1); Wire Clip (C10055-BK1) |
