SunModo Black E Roof Mount Kit E L-Foot EZ-RAFTER-B

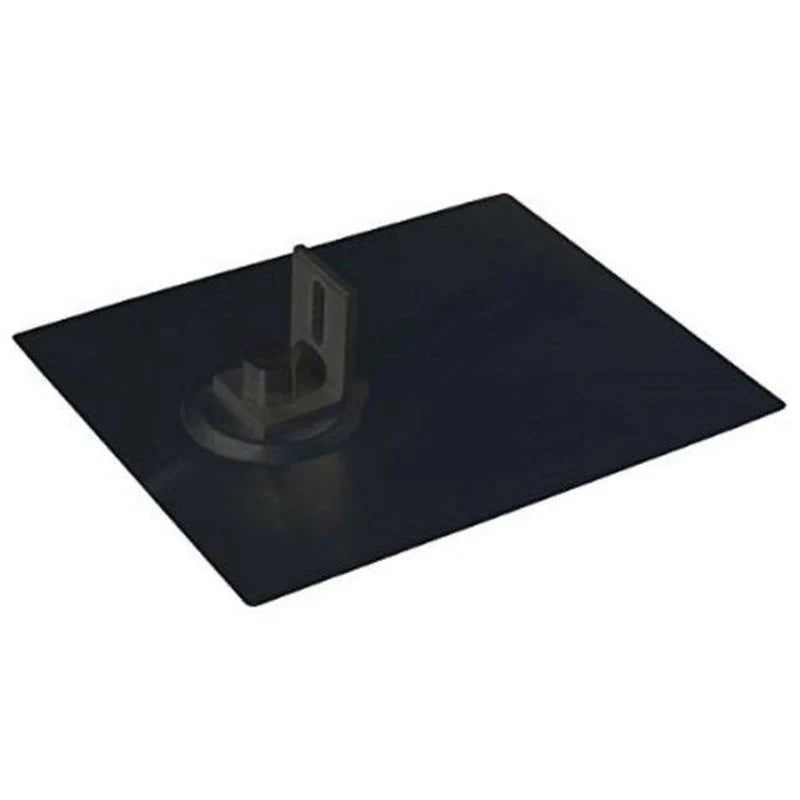

EZ-RAFTER-B is SunModo’s EZ Roof Mount kit configured for lag-bolt rafter attachment on pitched composition roofs, finished in black. The assembly combines an aluminum flashing with an L-Foot, an aluminum roof shoe (with EPDM sealing washer), a stainless 5/16″ lag bolt, and an aluminum hex cap—delivering a clean, watertight, code-compliant base for rail-based PV racking.
Key Benefits
Watertight, Low-Profile Flashing: Slides under the shingle course; EPDM sealing washer at the shoe threads forms a durable seal.
Rafter-Direct Strength: 5/16″ stainless lag fastens into structural framing for high pullout capacity (per NDS tables).
Installer-Ready Kit: Includes L-Foot, shoe & gasket, flashing, 4″ lag bolt, aluminum hex cap, and 3/8″ flange hardware.
Certified System: IBC/IRC evaluated; structural testing and UL 441 rain testing referenced in the installation manual.
Special Technology
Integrated Shoe + EPDM Seal: The aluminum shoe ships with an EPDM sealing washer pre-installed for reliable waterproofing under the flashing. {index=5}
Torque-Validated Hardware: Prescribed torque values (lag 25 ft-lb; 3/8″ hardware 15 ft-lb) ensure consistent mechanical performance.
Warranty
Manufacturer’s standard racking hardware warranty (SunModo).
Best Uses
Pitched Composition Shingle Roofs: Rail-based PV arrays requiring a sealed, rafter-anchored attachment with black aesthetic.
Specifications Table
| Specification | Data |
|---|---|
| Part / Kit | EZ-RAFTER-B (EZ Roof Mount, Black, Rafter/Lag attachment) |
| Roof Type | Pitched roofs (composition shingles); rafter anchorage |
| Included Components | Aluminum flashing; Aluminum L-Foot; Aluminum roof shoe w/ EPDM sealing washer; 5/16″ × 4″ SS lag bolt; Aluminum hex cap; 3/8″ SS flange bolt & nut |
| Flashing Sizes | 10″ × 12.5″ and 18″ × 18″ (black anodized finish for “-B” variants) |
| Primary Materials | Anodized aluminum (flashing, L-Foot, shoe, hex cap); EPDM gasket; Stainless steel fasteners |
| Installation (pilot & sealant) | 7/32″ pilot hole into rafter; fill pilot with sealant before setting lag (per manual) |
| Torque Values | Lag bolt: 25 ft-lb; 3/8″ bolts & flange nuts: 15 ft-lb; HEX cap: 15 ft-lb; 1/4″ hardware (if used): 7.5 ft-lb |
| Compliance / Testing | IBC/IRC evaluated (IMPMO Report 0248); structural test per EC002-2011; rain test per UL 441-96 |
| Tools (summary) | Drill/driver, 7/32″ bit, sockets (7/16″, 1/2″, 9/16″, 1-1/16″), torque wrench; anti-seize recommended |
| Notes | Follow manual for flashing placement beneath shingle, sealant beads, and final torque verification |
About SunModo:
SunModo is a U.S.-based manufacturer of innovative solar racking systems focused on simplifying installation while ensuring lasting structural performance. Headquartered in Vancouver, Washington, SunModo offers a full line of mounting solutions, including rail-less, roof-mount, and ground-mount systems.
Engineered to meet UL and NEC standards, their products are widely trusted for residential, commercial, and industrial PV installations. SunModo’s mission is to drive down the total cost of solar deployment through product innovation and installer-friendly designs.
