Staubli MC4 Tool Kit 32.6128-64100
32.6128-64100
Staubli MC4 Tool Kit 32.6128-64100

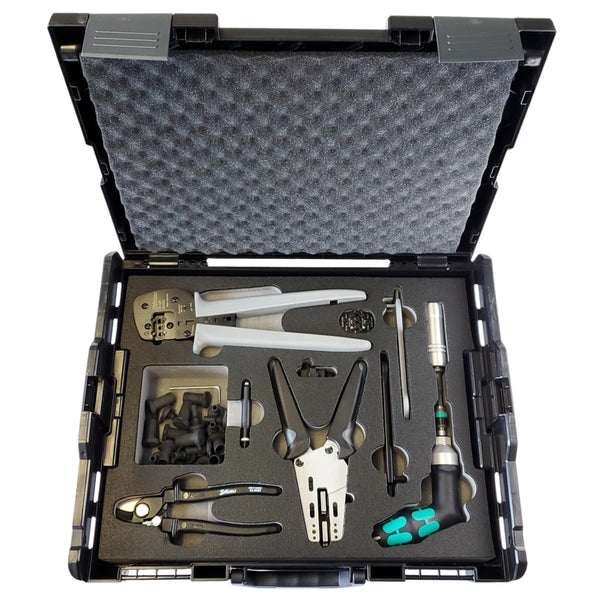

The Stäubli 32.6128-64100 MC4 Tool Kit is a UL-market tool case configured for American Wire Gauge cable sizes (14–8 AWG). It includes the PV-CZM crimping pliers with dies/locators for both open-barrel and closed-barrel MC4 contacts, plus torque, strip, cut, assembly/unlock, and test accessories for code-ready MC4 terminations.
Key Benefits
All-in-One Case: Complete set for MC4 assembly—crimp, strip, cut, torque, assemble/unlock, and test.
AWG-Focused: Set up for 14–8 AWG conductors common in North American PV installs.
Correct Crimps: Includes inserts/locators for open and closed MC4 contacts to meet spec.
Special Technology
PV-CZM Crimp System: Crimping pliers with PV-ES-CZM-63100 (closed-barrel) + PV-LOC-MC4 14/12-10/8, and PV-ES-CZM-61100 (open-barrel) + PV-LOC-MC4 2.5/4/6.
Warranty
Manufacturer’s standard tool warranty (Stäubli).
Best Uses
Field & Shop Terminations: Building and servicing MC4 cable sets and homeruns in residential, C&I, and utility PV.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 32.6128-64100 |
| Kit Type | MC4 Tool Case (UL markets), AWG 14–8 |
| Crimping Pliers | PV-CZM-64100 with inserts/locators for closed (14/12/10/8 AWG) and open (14/12/10 AWG or 2.5/4/6 mm²) |
| Assembly / Unlock | PV-MS-PLS (tool set) |
| Torque Tool | PV-WZ-Torque-Set |
| Stripping Pliers | PV-AZM-128 (12/10/8 AWG) |
| Cable Cutter | PV-WZ-KS |
| Test Plug | PV-PST |
| Dimensions | 17.5 × 13.8 × 4.6 in |
| Weight | 9.26 |
| Sealing Caps | (10) PV-BVK4 (female) + (10) PV-SVK4 (male) |

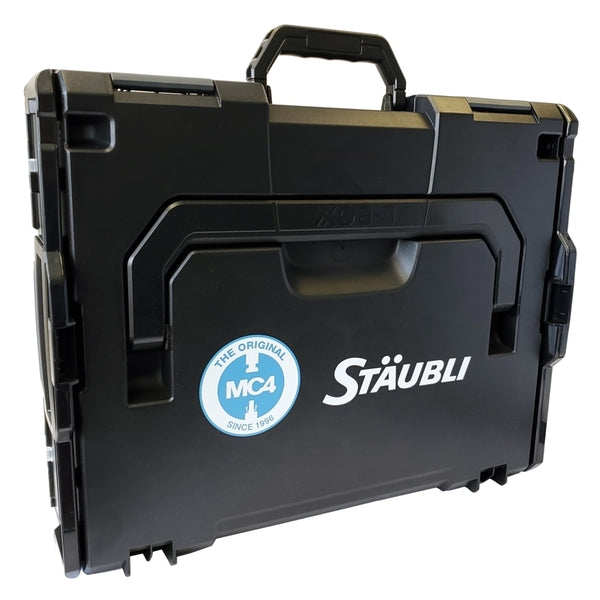

| Tool Case | PV-WZ/AWG-SET (robust plastic case) |
| Connector Family | Stäubli MC4 (PV-KBT4 / PV-KST4) |
About STAUBLI:
Stäubli is a global provider of innovative mechatronic solutions, specializing in connectors, robotics, and textile machinery. In the solar industry, Stäubli is renowned for its high-quality MC4 connectors, ensuring safe, efficient, and long-lasting photovoltaic connections, trusted worldwide for reliability and performance in renewable energy systems.
