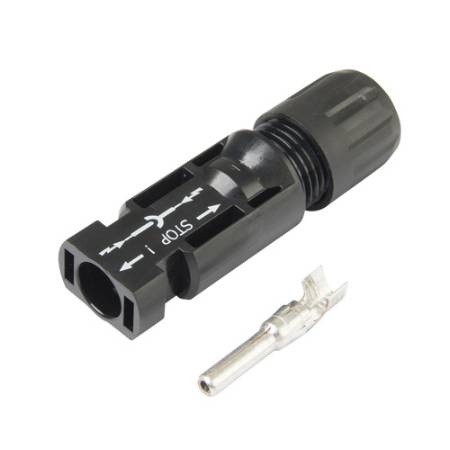

Staubli Male MC4 Connector 18-32.0015P0001-UR
MPN No: 18-32.0015P0001-UR
Expected ship date Jan 16 - 23
In Stock
$3.05
Regular price
$3.05
New
406 IN STOCK
Staubli Male MC4 Connector 18-32.0015P0001-UR
Staubli Male MC4 Connector 18-32.0015P0001-UR
Available
MPN No: 18-32.0015P0001-UR
Regular price
$3.05
Expected ship date Jan 16 - 23
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Regular price
$3.05
Staubli Male MC4 Connector 18-32.0015P0001-UR
MPN No:
18-32.0015P0001-UR
Expected ship date Jan 16 - 23
Staubli Male MC4 Connector 18-32.0015P0001-UR
The Stäubli 18-32.0015P0001-UR is the original MC4 male plug with strain-relief boot, engineered for #10–#12 AWG PV cable in the 5–6 mm OD range. Built on Stäubli’s MULTILAM contact technology and certified for modern PV voltages, it delivers low contact resistance, secure snap-in locking (tool-release per NEC 2023), and long-term reliability in harsh outdoor environments.
Key Benefits
Reliable DC Connection: MULTILAM spring-contact system maintains ultra-low resistance over decades.
Code-Ready Locking: Tool-required unlatching meets NEC 2023 serviceability requirements.
Wide Compatibility (Within MC4 Family): Mates with genuine Stäubli MC4 components for 1,100 V (IEC) / up to 1,500 V (UL) systems.
Special Technology
Original MC4 Design: Proven field performance (>25 years) with tested sealing and strain relief.
Booted Cable Entry: Sized for 5–6 mm jacket OD and #10–#12 AWG USE-2/PV Wire for robust pull-out resistance.
Warranty
Manufacturer’s standard Stäubli warranty (original MC4 series).
Best Uses
Residential, C&I & Utility PV: Field-assembled DC terminations where certified MC4 plugs are required.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 18-32.0015P0001-UR |
| MC4 Type | PV-KST4/6I-UR (male cable coupler) |
| Cable OD | ~5–6 mm (booted entry) |
| Conductor Size | #10–#12 AWG PV/USE-2 |
| Rated Voltage | Up to 1,500 V DC (UL); 1,100 V DC (IEC) for MC4 family |
| Rated Current | 30 A (typical for this variant); some listings quote up to 39 A |
| Contact Technology | MULTILAM (low contact resistance) |
| Locking | Snap-in; tool required to open (NEC 2023) |
| Ingress Protection | Outdoor-rated (MC4 family IP class) |
| Compatibility | Mates with genuine Stäubli MC4 only (mix-and-match with other brands not permitted) |
