Staubli Female MC4 Connector 18-32.0014P0001-UR

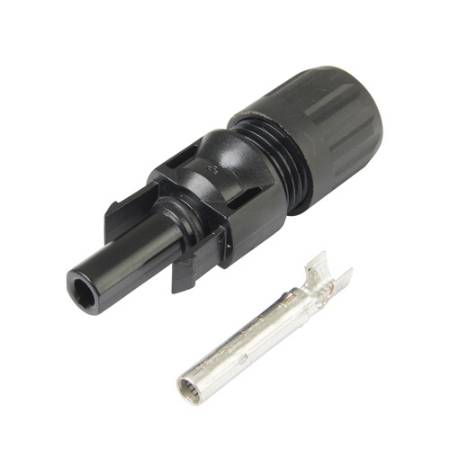

The Stäubli (Multi-Contact) MC4 female cable coupler PV-KBT4/6I-UR is a field-crimp connector for #10–#12 AWG PV leads (5.0–6.0 mm outside diameter). Built on Stäubli’s proven MULTILAM contact system, it delivers low contact resistance, long-term stability, and rugged IP65/IP68 environmental sealing, while meeting UL 6703 (1500 V DC) and IEC 62852 (up to 1100 V DC).
Key Benefits
Trusted Original MC4: Industry-standard connector family with 25+ years of field use and anti-counterfeit traceability.
High Current Capability: Up to 50 A (UL, 10 AWG) / 35 A (UL, 12 AWG); 39 A (IEC, 4–6 mm²).
Weather-Sealed & Durable: Rated IP65/IP68 when mated (1 m, 1 h), −40 °C to +85 °C, UL94 V-0 materials.
Secure Locking: Tool-required unlatching for NEC 2023 compliance; 100 mating cycles.
Special Technology
MULTILAM Contact System: Spring-multipoint contact reduces resistance and heat rise for stable performance over lifetime.
Warranty
Manufacturer’s standard Stäubli connector warranty (see regional terms).
Best Uses
Residential, C&I, Utility PV: Terminating #10–#12 AWG home-run leads and module pigtails; mates with MC4 male PV-KST4/6I-UR.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | 18-32.0014P0001-UR (a.k.a. 32.0014P0001-UR) |
| Series / Type | Original MC4 — PV-KBT4/6I-UR |
| Gender | Female (socket), polarity “+” |
| Cable O.D. Range | 5.0–6.0 mm (with supplied boot) |
| Conductor Size | #10 / #12 AWG (≈ 6 / 4 mm²) |
| Rated Voltage | IEC: up to 1100 V DC (2.5–6 mm²) · UL: 1500 V DC |
| Rated Current | IEC: 39 A (4–6 mm²) · UL: 50 A (10 AWG), 35 A (12 AWG) |
| Contact / Connection | MULTILAM spring contact · Crimp termination |
| Materials | Contact: copper, tin-plated · Insulation: PC/PA |
| Environmental | IP65/IP68 mated (1 m/1 h); −40 °C…+85 °C; UL94 V-0 |
| Pollution Degree | 3 |
| Mating Cycles | Up to 100 |
| Standards / File | IEC 62852, UL 6703 / CSA C22.2; cULus E343181 |
| Mates With | MC4 male PV-KST4/6I-UR (matching cable O.D./AWG) |
| Supplier Mapping | Distributor SKU examples list “18-32.0014P0001-UR” for PV-KBT4/6I-UR |
About STAUBLI:
Stäubli is a global provider of innovative mechatronic solutions, specializing in connectors, robotics, and textile machinery. In the solar industry, Stäubli is renowned for its high-quality MC4 connectors, ensuring safe, efficient, and long-lasting photovoltaic connections, trusted worldwide for reliability and performance in renewable energy systems.
