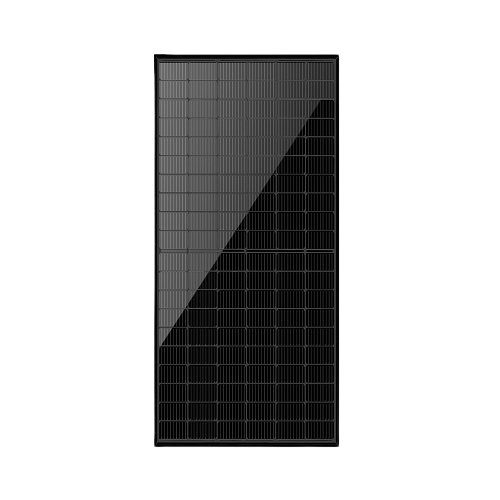

Sonali SS-M-450-B Black On Black 120 Half-Cell Mono Solar Panel

Sonali SS-M-450-B Black On Black 120 Half-Cell Mono Solar Panel

Regular price $360
Sale price $360 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: SS-M-450-B

Sonali SS-M-450-B Black On Black 120 Half-Cell Mono Solar Panel

Sonali SS-M-450-B Black On Black 120 Half-Cell Mono Solar Panel

No reviews
Leave a Review
Regular price $360
Sale price $360 Regular price

View full details
Description
Questions
Reviews
Sonali Solar
Manufacturer
Sonali Solar
Weight
52.91 lb
Dimension
(LxWxH): 75.2 X 44.65 X 1.38 in
Sonali SS-M-450-B Black On Black 120 Half-Cell Mono Solar Panel

This line of modules is the direct result of over three decades of design, manufacturing and use. Attending to every detail in the design and manufacture of our products, our process controls and testing methods have optimized module life and electrical energy production.





Sonali Solar's Specification

Model SS-M-450-B
Series SS-M-440 to 460 Series
Manufacturer Sonali


MECHANICAL

Specification Data
Cell Type Mono-crystalline
Cell Arrangement 182x91 mm(6.53x3.27 in)
Dimensions 1910 X 1134 X 35 mm(75.2 X 44.65 X 1.38 inch)
Weight 24 kgs(52.91 lbs)
Front / Back Glass 3.2mm (0.125in) ARC
Frame Anodized aluminium alloy
J-Box IP68, 3 bypass diodes
Cable  400mm (15.75 inch)300mm (11.81inch)length with 4mm²
Cable Length (Including Connector) MC4 compatible


ELECTRICAL

Nominal Max. Power (Pmax) 450 W
Opt. Operating Voltage (Vmp) 35.0 V
Opt. Operating Current (Imp) 12.86 A
Open Circuit Voltage (Voc) 41.6 V
Short Circuit Current (Isc) 13.66 A


Warranty

  • Our product is durable and has 25 years performance warranty.
  • Integrated manufacturing of cells & modules in production line guarantees optimum performance.

* Refer to warranty document for terms and conditions

Documentation

Data Sheet


Detailed Information

With Sonali Solar’s industry leading mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, we are now able to offer our global customers high power module

High reliability
Cell interconnections and diode placement use well-established industry practice and are field-proven to provide excellent reliability.

High Module efficiency is obtaining top performance even in diffused light conditions

Quality and certifications
All Manufactured modules are tested 100% by EL (Electroluminescence) during the Production Process & Free from micro cracks.

The company manufactures solar modules in compliance with global standard including MNRE, IEC 61215, 61730-1, 61730-2, 61701, UL 1703, UL 61730, ISO 9001:2008 & ISO 14001:2004 & 18001:2007
