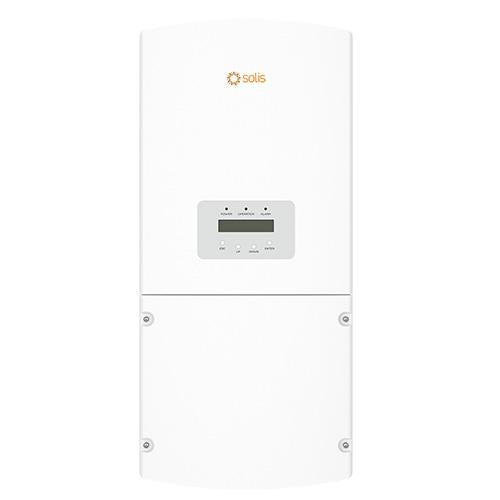

Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
Solis-1P7.6K-4G-US-A
Solis 7.6kW Single Phase String Inverter Solis-1P7.6K-4G-US-A
The Solis-1P7.6K-4G-US-A is a high-performance residential inverter from the Solis 4G Series, offering advanced grid compliance, integrated rapid shutdown, and 3 MPPT trackers for optimized power production. Built for the U.S. market, it ensures high energy yield and robust safety features.
Key Benefits
High Efficiency: Delivers up to 97.8% max efficiency and 97.5% CEC efficiency.
Integrated Rapid Shutdown: Built-in APS or Tigo RSD transmitter ensures NEC 690.12 compliance.
Advanced MPPT Design: 3 MPPTs enable precise tracking under varying solar conditions.
Smart Monitoring Ready: RS485 communication with optional Wi-Fi or cellular for SolisCloud integration.
Flexible Voltage Support: Rated for both 240V and 208V single-phase grids.
Special Technology
Transformerless Topology: Reduces weight and increases conversion efficiency.
Surge Protection: Equipped with Type III protection on both DC and AC sides.
Module-Level Safety: Compatible with TS4-A-F/2F and APSmart RSD-S / RSD-D devices.
Warranty
Includes a 10-year standard warranty with optional extended coverage available.
Best Uses
Residential Grid-Tied Systems: Ideal for homes using rooftop or ground-mount PV arrays.
Code-Compliant Installs: Supports U.S. safety standards including UL 1741SB and NEC 690.12-2020.
Smart Solar Homes: Monitoring-ready setup for real-time performance tracking and diagnostics.
Specifications Table
| Specification | Data |
|---|---|
| Model | Solis-1P7.6K-4G-US-A |
| Rated Output Power | 7,600 W |
| Max. Input Voltage | 600 V |
| Rated Input Voltage | 330 V |
| Start-up Voltage | 120 V |
| MPPT Voltage Range | 100 – 500 V |
| Max. Input Current | 14 A per input |
| Max. Short Circuit Current | 22 A per input |
| MPPT / Strings | 3 / 3 |
| AC Output Voltage | 240 V / 208 V |
| Max. Output Current (240V) | 31.7 A |
| Max. Output Current (208V) | 36.5 A |
| Max. Efficiency | 97.8% |
| CEC Efficiency | 97.5% |
| Nighttime Consumption | <1 W |
| Cooling | Natural Convection |
| Dimensions (W × H × D) | 13.1 × 28.8 × 9.8 in |
| Weight | 45.6 lbs |
| Enclosure | NEMA 4X |
| Communication | RS485, optional Wi-Fi or cellular |
| Certifications | UL1741SB, IEEE1547-2018, FCC Part 15, NEC 690.12-2020 |
About Solis:
Solis is a global leader in solar inverter technology, offering efficient, reliable, and affordable grid-tied and hybrid inverters for residential, commercial, and utility-scale applications. Known for innovation and durability, Solis products are engineered to optimize energy yield and support smart energy management through advanced monitoring solutions. With a strong global presence and commitment to sustainability, Solis helps accelerate the transition to clean, renewable energy.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 10-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the Solis-1P7.6K-4G-US-A compatible with my solar panels?
Yes, the Solis-1P7.6K-4G-US-A is compatible with most residential solar panels. Your installer will confirm compatibility based on your panel specifications and system design.
Do I need a battery to use the Solis-1P7.6K?
No battery is required. This inverter operates as a grid-tied system. If you want energy storage, you'll need to pair it with compatible external battery systems and components.
How do I monitor the performance of the Solis inverter?
The Solis-1P7.6K supports Wi-Fi-based monitoring via the Solis Cloud platform. You can track energy production, inverter status, and performance through their app or web portal.
What happens during a power outage?
As a standard grid-tied inverter without backup functionality, the Solis-1P7.6K will shut down during a grid outage for safety reasons unless paired with an external battery and backup solution.
How do I maintain the Solis-1P7.6K?
Maintenance is minimal. Check for warning indicators on the inverter display and ensure it's free of dust and well-ventilated. Your installer may suggest occasional inspections.
What is the efficiency of the Solis-1P7.6K-4G-US-A?
This inverter offers a maximum efficiency of 97.5% and a CEC efficiency of 97.0%, making it a highly efficient choice for residential installations.
What are the input and output voltage ranges?
The Solis-1P7.6K operates with a nominal output of 240V and supports a wide MPPT voltage range from 160V to 600V DC. Refer to the datasheet for detailed specs.
What communication protocols does the Solis-1P7.6K use?
It supports standard RS485 communication and Wi-Fi monitoring via an external dongle (S3-WIFI-ST). Other options like 4G or Ethernet may be available separately.
