Solis 60kW Three-Phase Hybrid Inverter – 480V 4 MPPT 10-Year Warranty
S6-EH3P60K04-NV-YD-H-US

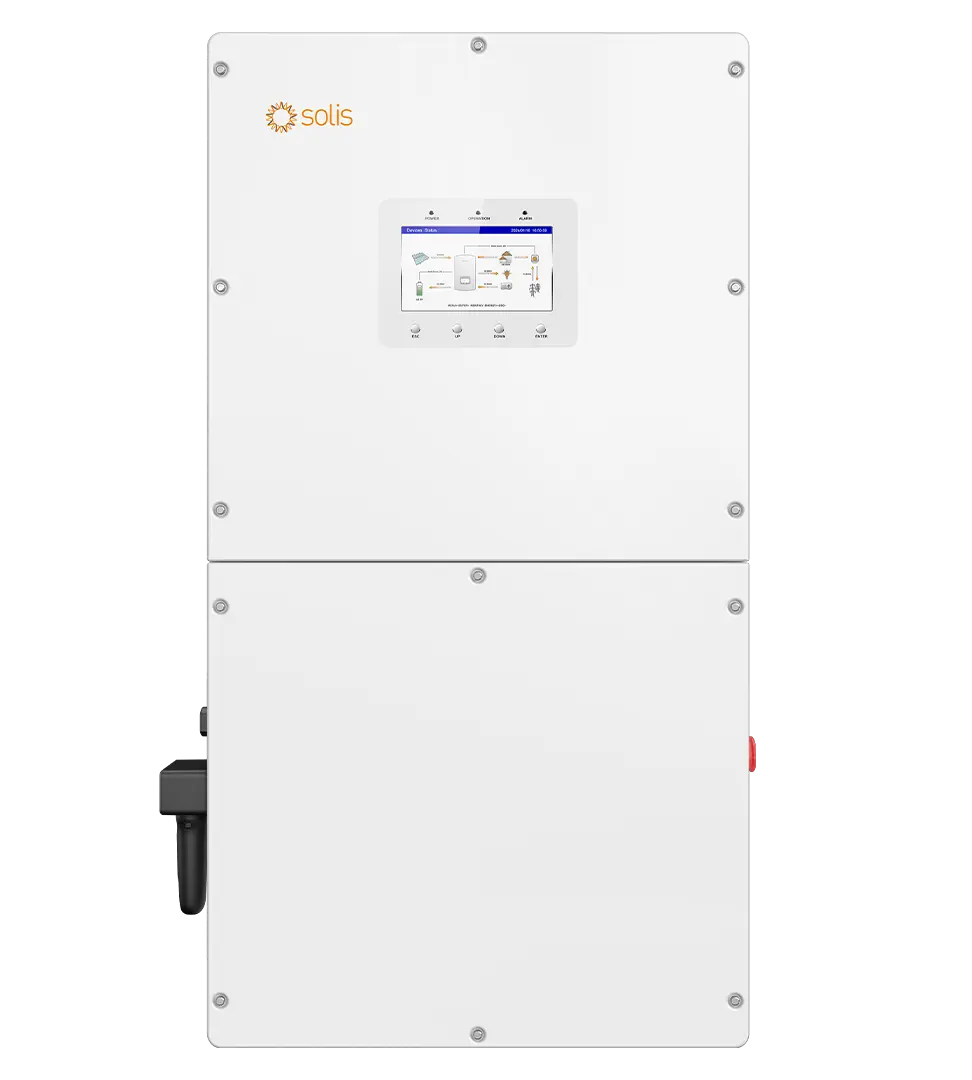

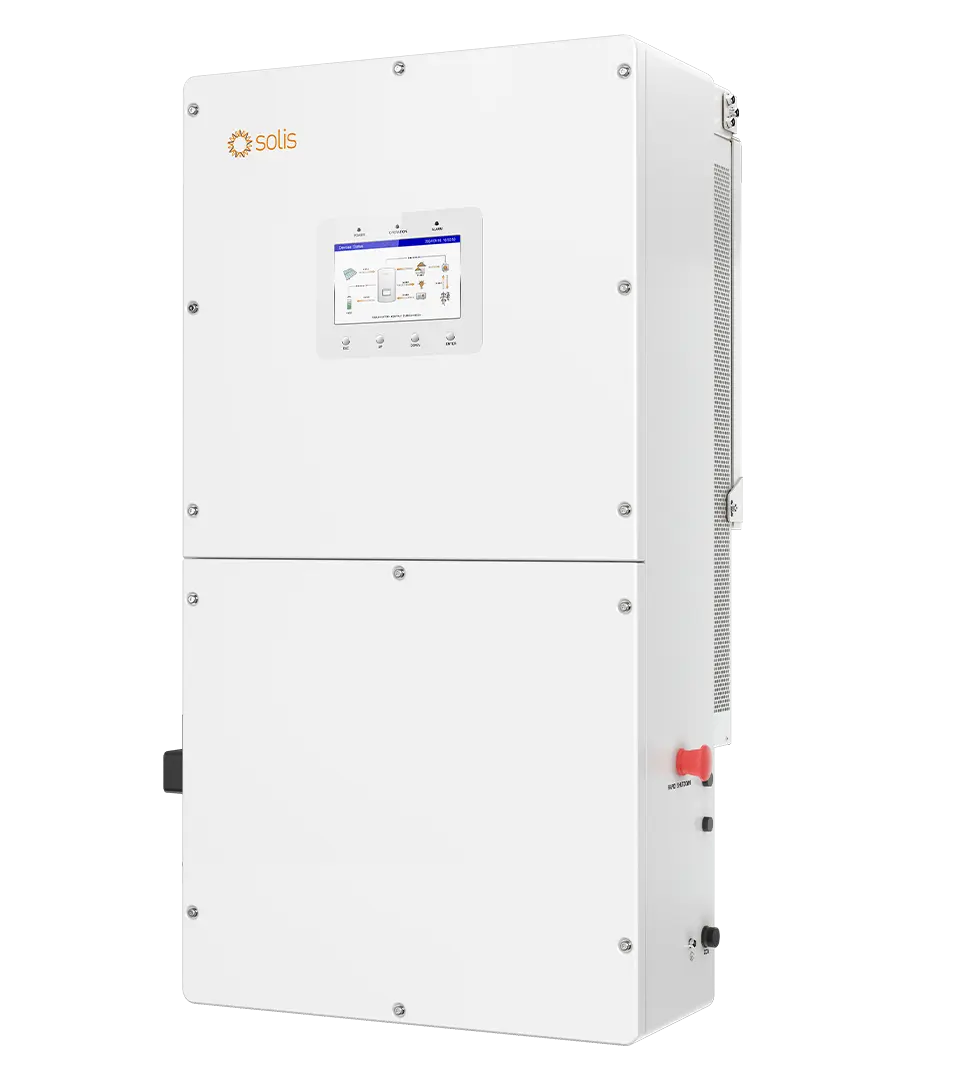

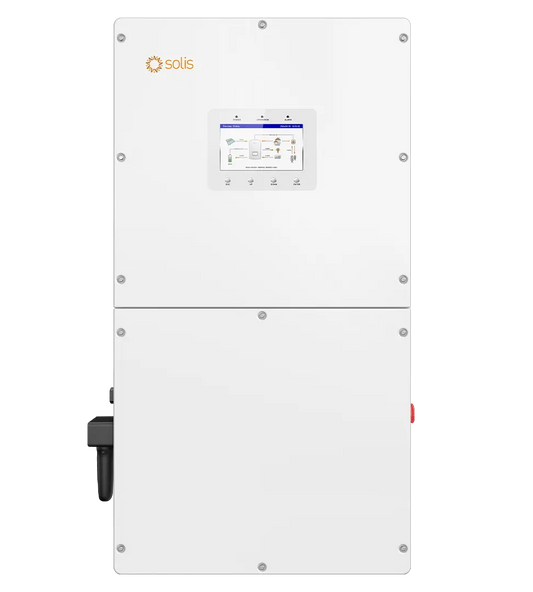

The Solis S6-EH3P60K04-NV-YD-H-US is a next-generation 60kW three-phase high-voltage hybrid inverter designed for commercial, industrial, agricultural, and microgrid energy storage applications.
As part of the Solis Solarator Series, this inverter seamlessly integrates solar generation, battery storage, generator support, and grid interaction into a powerful all-in-one energy management platform.
Supporting up to 100kW of PV input, dual battery ports, multi-inverter parallel operation up to 600kW, and advanced energy management functions, the S6-EH3P60K04-NV-YD-H-US is engineered for maximum flexibility and scalability.
With intelligent load prioritization, less than 10ms backup transfer time, integrated AFCI 2.0 protection, and SunSpec rapid shutdown functionality, this inverter delivers exceptional resiliency and operational reliability.
Key Technology
-
60kW Three-Phase Hybrid Architecture
Combines solar generation, energy storage, generator integration, and grid interaction within a single inverter platform. -
100kW PV Input Capacity
Supports large PV arrays with up to 100kW of DC input for maximum solar utilization. -
21A String Input Compatibility
Supports modern high-power photovoltaic modules with string input currents up to 21A. -
Four Independent MPPTs
Allows flexible array design and optimized production across multiple roof orientations and shading conditions. -
Dual Battery Ports
Supports flexible battery expansion and independent battery configurations. -
Fast Battery Charging
Supports up to 168A total charging and discharging current for rapid energy storage cycling. -
Parallel Operation up to 600kW
Supports multi-unit systems for large-scale commercial and industrial applications. -
Integrated AFCI 2.0 and Rapid Shutdown
Includes advanced safety protection and SunSpec-certified rapid shutdown functionality.
Best Uses
-
Commercial Solar + Storage Systems
Provides intelligent energy management for commercial facilities. -
Industrial Energy Storage Projects
Supports peak shaving, load shifting, and backup power applications. -
Agricultural Facilities
Provides reliable backup power and generator integration for farms and processing facilities. -
Microgrid Applications
Supports advanced islanding and grid resiliency functionality. -
Large Multi-Inverter Energy Systems
Scales up to 600kW through parallel inverter operation.
Warranty
- Standard Warranty: 10 Years
- Maximum Efficiency: 97.49%
- CEC Efficiency: 97.27%
- Ingress Protection: Type 4X
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Solis |
| Model | S6-EH3P60K04-NV-YD-H-US |
| Series | Solarator Series |
| Product Type | Three-Phase High Voltage Hybrid Inverter |
| Recommended Maximum PV Array Size | 100 kW |
| Maximum PV Input Voltage | 1000V DC |
| Rated DC Voltage | 600V DC |
| Start-Up Voltage | 180V DC |
| MPPT Voltage Range | 150V - 850V DC |
| Maximum Input Current | 4 × 42A |
| Maximum Current per DC Input | 42A |
| Maximum Short Circuit Current | 4 × 65A |
| Number of MPPTs | 4 |
| Maximum Input Strings | 8 |
| Battery Type | High Voltage Lithium-Ion |
| Battery Voltage Range | 150V - 800V DC |
| Maximum Battery Charge / Discharge Current | 84A × 2 |
| Battery Ports | 2 |
| Battery Communication | CAN / RS485 |
| Rated AC Output Power | 60 kW |
| Maximum Apparent Output Power | 60 kVA |
| Grid Voltage | 277V / 480V Three-Phase |
| Rated Grid Frequency | 60 Hz |
| Rated Output Current | 72.2A |
| Maximum AC Input Power | 120 kW |
| Maximum AC Input Current | 144.4A |
| Maximum Generator Input Power | 60 kW |
| Maximum Generator Input Current | 72.2A |
| Backup Transfer Time | <10 ms |
| Maximum Backup Overload | 160% of Rated Power for 2 Seconds |
| Maximum Efficiency | 97.49% |
| CEC Efficiency | 97.27% |
| Battery Charging Efficiency | 98.6% (PV) / 97.8% (AC) |
| Battery Discharge Efficiency | 97.8% |
| Integrated AFCI 2.0 | Yes |
| Rapid Shutdown | Integrated SunSpec Certified Transmitter |
| Integrated PV Disconnect | Yes |
| Surge Protection | DC Type II / AC Type II |
| Ingress Protection | Type 4X |
| Cooling Method | Intelligent Redundant Fan Cooling |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Dimensions | 22.05 × 41.34 × 13.64 in |
| Weight | 195.77 lbs |
| Display | 7.0" LCD Display with Bluetooth + App |
| Monitoring Platform | SolisCloud |
| Communication Interface | WiFi, LAN, Bluetooth, CAN-BMS ×2, CAN Parallel ×2, RS485, DRM, DI ×3, DO ×3, Optional 4G |
| Certifications | UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCC Part 15 Class B, NEC 690.12-2020, CSA C22.2 No.107.1-1 |
About Solis:
Solis is one of the world's largest inverter manufacturers, delivering advanced photovoltaic and energy storage technologies for residential, commercial, and industrial markets worldwide. The Solarator Series combines intelligent energy management, flexible storage integration, and industry-leading reliability to support the next generation of distributed energy systems.
Commercial Energy Storage and Backup at Utility Scale
The Solis S6-EH3P60K04-NV-YD-H-US combines massive solar input capacity, high-voltage battery integration, generator support, intelligent load management, and scalable parallel operation to create a powerful commercial energy platform capable of delivering resiliency, peak demand management, and energy independence.
