Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
MPN No: S6-EH3P30K03-LV-YD-H-US
Expected ship date Jul 09 - 16
In Stock
$11,599.00
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
Regular price
$11,599
New
LESS THAN 50
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
Available
MPN No: S6-EH3P30K03-LV-YD-H-US
Regular price
$11,599
Expected ship date Jul 09 - 16
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$11,599
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US
MPN No:
S6-EH3P30K03-LV-YD-H-US
Expected ship date Jul 09 - 16
Solis 30kW Three-Phase Hybrid Inverter – 208V 3 MPPT 10-Year Warranty | S6-EH3P30K03-LV-YD-H-US

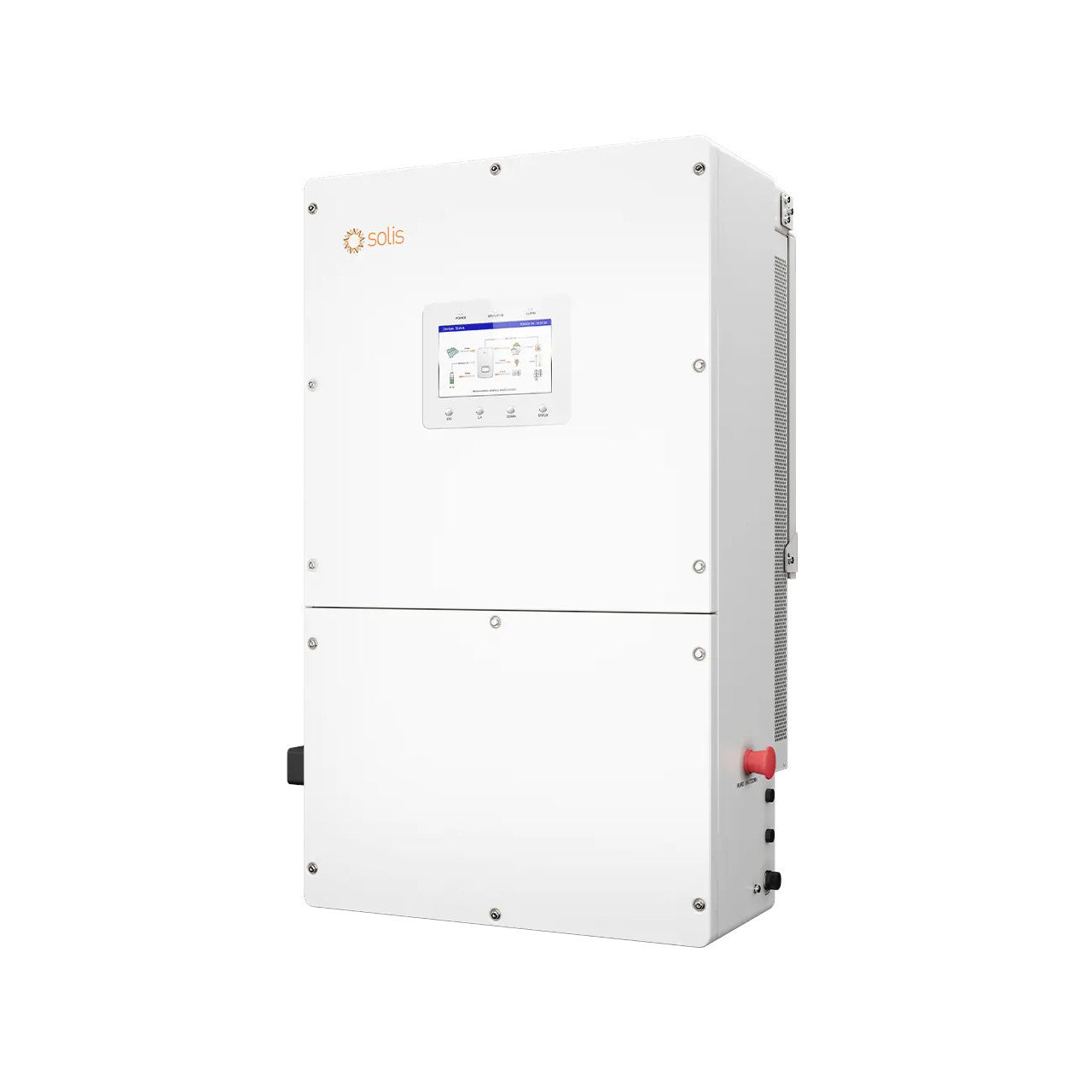

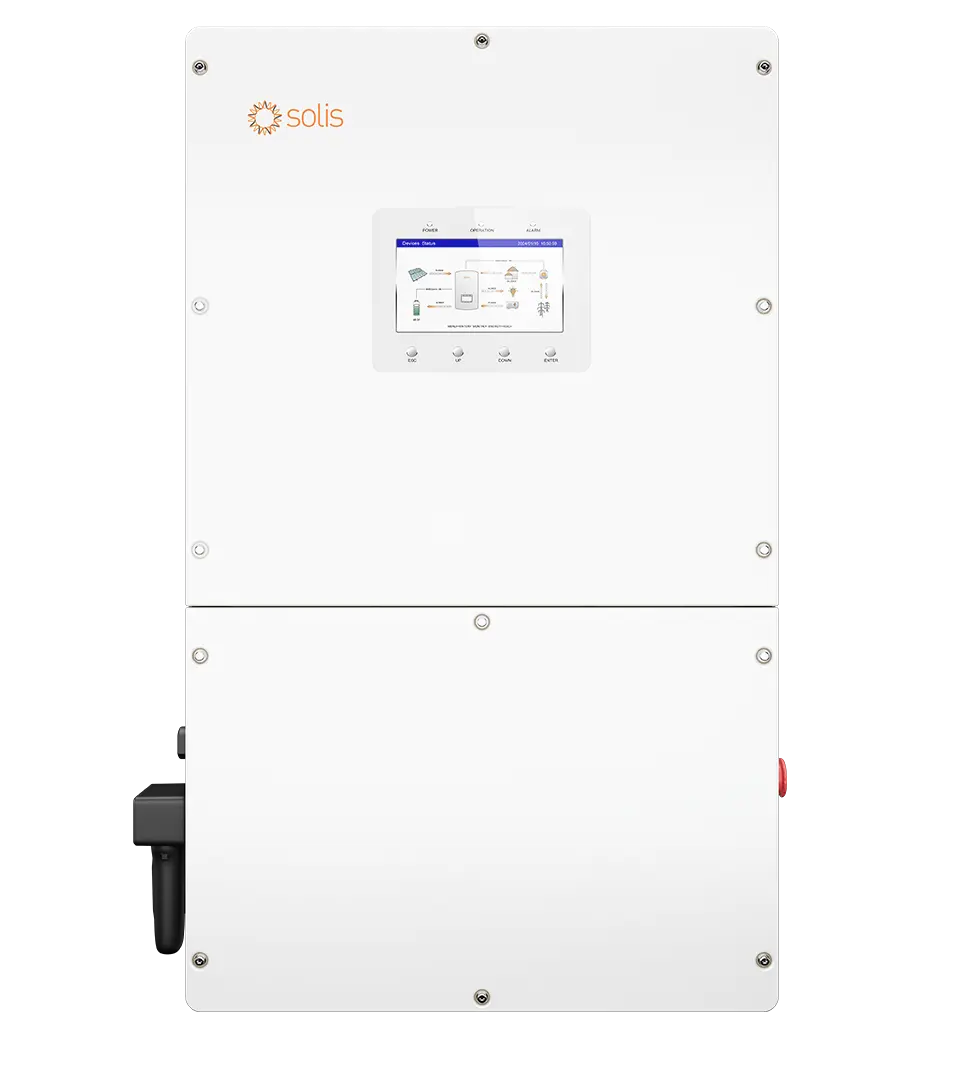

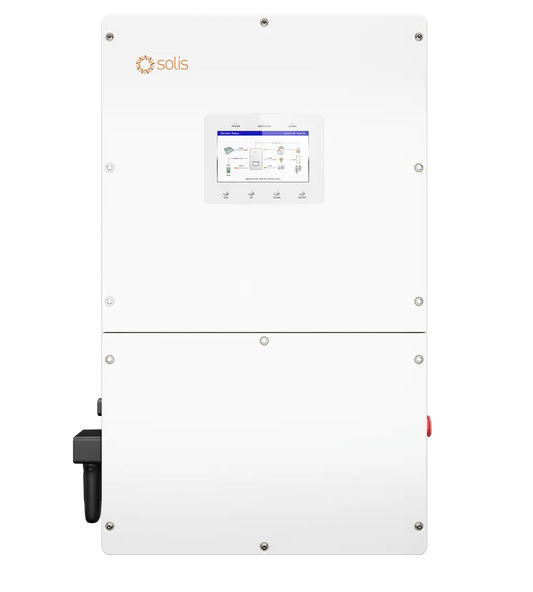

The Solis S6-EH3P30K03-LV-YD-H-US is a powerful 30kW three-phase high-voltage hybrid inverter engineered for commercial energy storage, large residential estates, agricultural facilities, and advanced microgrid applications.
Built on the Solis Solarator platform, this inverter seamlessly integrates solar generation, battery storage, utility interconnection, and generator support into a single intelligent energy management solution.
Featuring support for up to 60kW of PV input, dual battery ports, 200% DC oversizing capability, and compatibility with high-voltage lithium batteries ranging from 150V to 800V, the S6-EH3P30K03-LV-YD-H-US maximizes energy utilization while providing exceptional flexibility for future expansion.
Integrated rapid shutdown, AFCI protection, and whole-facility backup capabilities make it an ideal solution for demanding energy storage applications.
Key Technology
-
30kW Three-Phase Hybrid Architecture
Combines solar production, battery storage, utility interconnection, and generator support in a single platform. -
60kW PV Input Capacity
Supports up to 200% DC oversizing to maximize solar energy production and improve system economics. -
Three MPPT Design
Provides flexible string design and optimized energy harvest across multiple roof orientations. -
40A High Current MPPT Inputs
Supports today's large-format, high-current solar modules while minimizing clipping losses. -
Dual High Voltage Battery Inputs
Supports flexible battery expansion and up to 33kW charge/discharge power. -
160% Backup Overload Capability
Provides superior resiliency during outages and high-load startup conditions. -
Generator Integration
Operates seamlessly with generators to maintain uninterrupted power during extended outages. -
Integrated AFCI and Rapid Shutdown
Includes SunSpec-certified rapid shutdown transmitter and integrated AFCI protection.
Best Uses
-
Commercial Solar + Storage Systems
Provides advanced energy management and backup power for commercial facilities. -
Agricultural Energy Systems
Ideal for farms and agricultural facilities requiring reliable backup power. -
Microgrid Applications
Supports islanding and advanced energy management capabilities. -
Large Residential Estates
Provides whole-property backup and energy storage functionality. -
Generator Assisted Backup Systems
Supports seamless integration with standby generators.
Warranty
- Standard Warranty: 10 Years
- Maximum Efficiency: 97.9%
- CEC Efficiency: 97.4%
- Ingress Protection: Type 4X
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Solis |
| Model | S6-EH3P30K03-LV-YD-H-US |
| Series | Solarator Series |
| Product Type | Three-Phase High Voltage Hybrid Inverter |
| Maximum Usable PV Input Power | 60 kW |
| Maximum PV Input Voltage | 1000V DC |
| Rated DC Voltage | 600V DC |
| Start-Up Voltage | 180V DC |
| MPPT Voltage Range | 150V - 850V DC |
| Maximum Input Current per MPPT | 40A / 40A / 40A |
| Maximum Short Circuit Current per MPPT | 65A / 65A / 65A |
| Number of MPPTs | 3 |
| Maximum Input Strings | 6 |
| Maximum Input Power per MPPT | 25kW |
| Battery Type | High Voltage Lithium-Ion |
| Battery Voltage Range | 150V - 800V DC |
| Maximum Battery Charge / Discharge Power | 33kW |
| Maximum Charge / Discharge Current | 70A × 2 |
| Number of Battery Ports | 2 |
| Battery Communication | CAN / RS485 |
| Rated AC Output Power | 30kW |
| Maximum Apparent Output Power | 30kVA |
| AC Output Voltage | 208V / 220V / 240V Three-Phase |
| Rated Output Current | 72.2A |
| Power Factor | >0.99 Adjustable (0.8 Leading to 0.8 Lagging) |
| Maximum AC Pass-Through Current | 144.4A |
| Generator Input Capacity | 30kW / 72.2A |
| Backup Transfer Time | <10 ms |
| Maximum Backup Overload | 160% of Rated Power for 2 Seconds |
| Maximum Efficiency | 97.9% |
| CEC Efficiency | 97.4% |
| MPPT Efficiency | 99.9% |
| Integrated AFCI | Yes |
| Rapid Shutdown | Integrated SunSpec Certified Transmitter |
| PV DC Disconnect | Integrated |
| Ingress Protection | Type 4X |
| Cooling Method | Intelligent Fan Cooling |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Dimensions | 22 × 41.3 × 13.64 in |
| Weight | 195.77 lbs |
| Display | 7.0" LCD Display with Bluetooth + App |
| Monitoring Platform | SolisCloud |
| Communication | CAN, RS485, Ethernet, Optional Wi-Fi, Cellular, LAN |
| Certifications | UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCC Part 15 Class B, NEC 690.12-2020, CSA C22.2 No.107.1 |
About Solis:
Solis is one of the world's leading inverter manufacturers, delivering advanced solar and energy storage technologies for residential, commercial, and utility-scale applications. The company's Solarator series hybrid inverters are engineered to provide flexible energy management, seamless backup operation, and reliable long-term performance.
Commercial-Scale Energy Storage with Solarator Intelligence
The Solis S6-EH3P30K03-LV-YD-H-US combines large-scale solar integration, high-voltage battery storage, generator compatibility, advanced backup functionality, and intelligent monitoring into a powerful commercial hybrid energy platform designed for energy resilience and operational flexibility.
