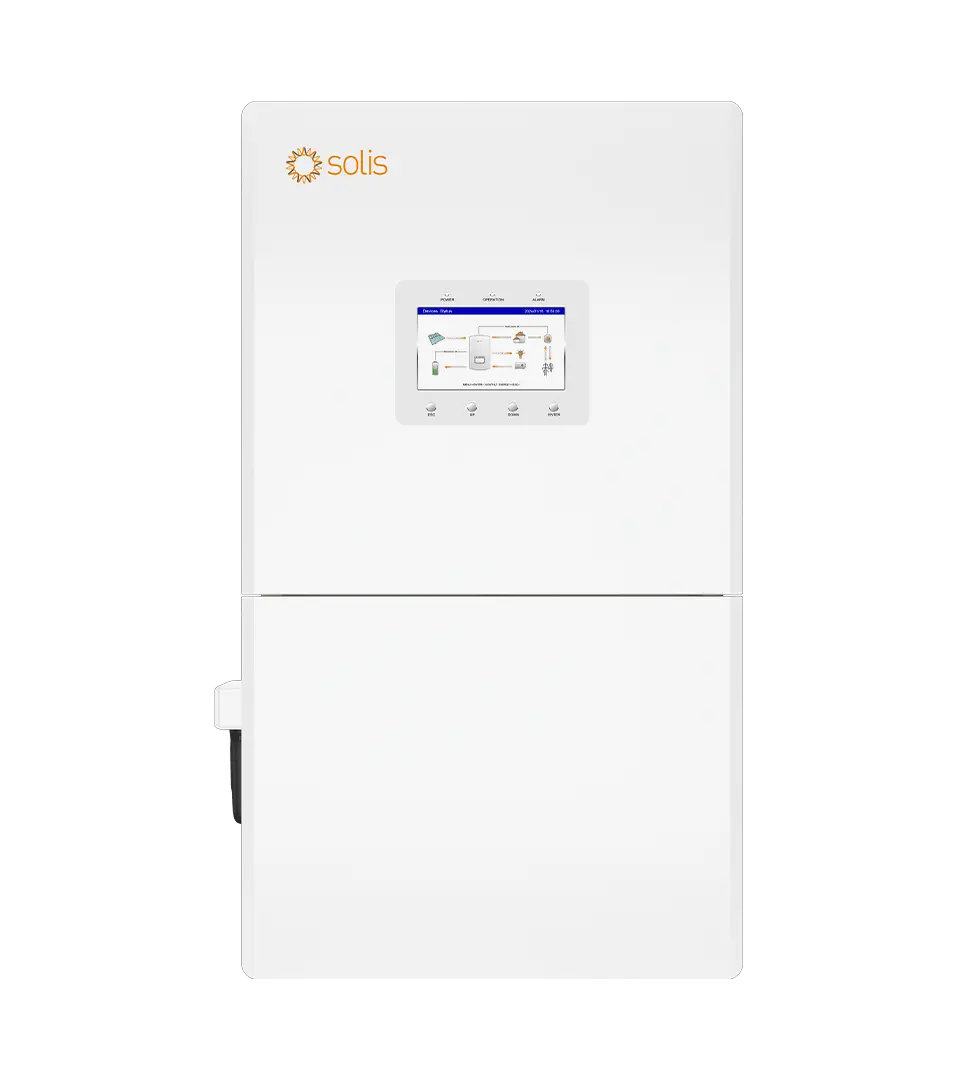

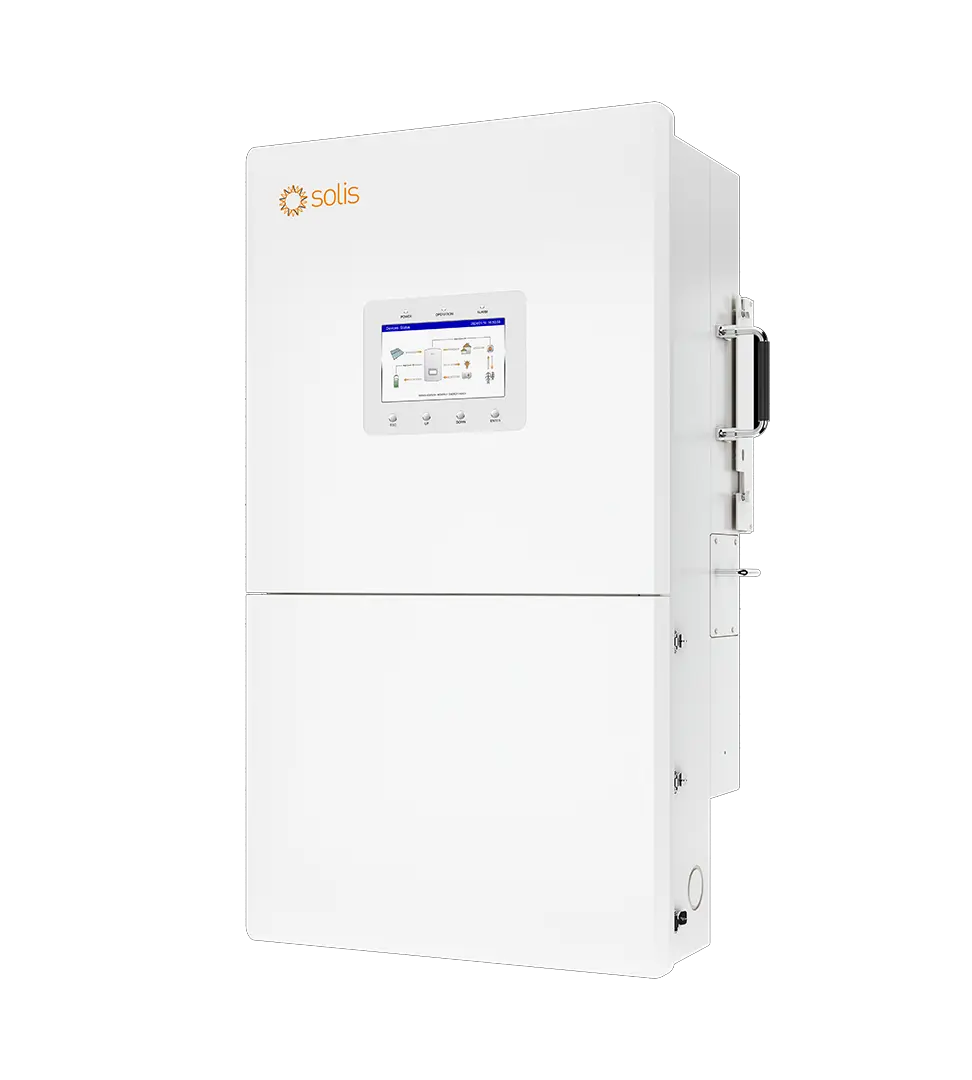

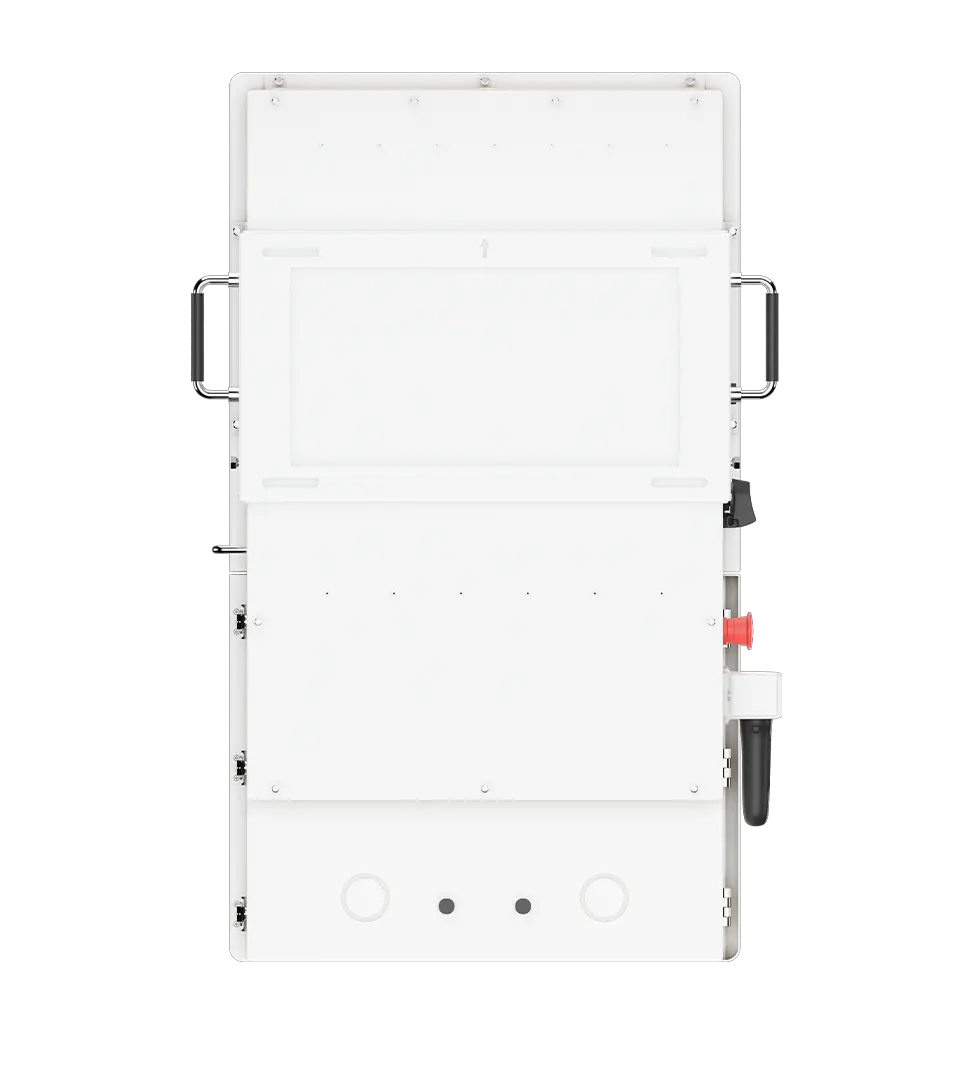

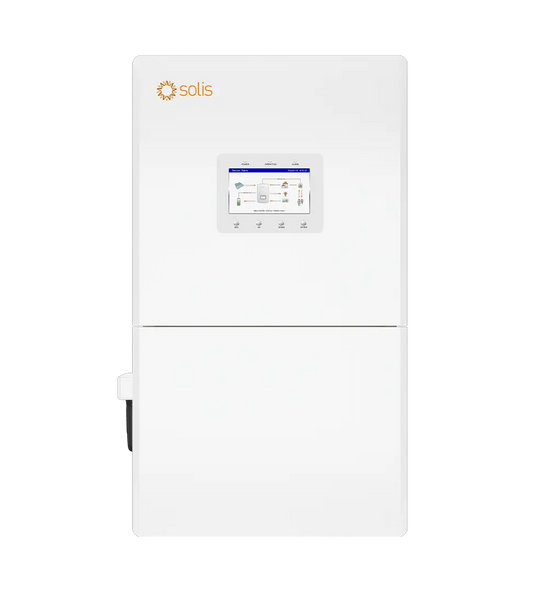

Solis 16kW LV Split-Phase Hybrid Inverter – 3 MPPTs Type 4X
S6-EH2P16K03-SV-YD-L-US
The Solis S6-EH2P16K03-SV-YD-L-US is a powerful 16kW split-phase hybrid inverter engineered for residential whole-home backup, energy storage, and advanced solar applications. Designed around a low-voltage 48V battery architecture, this inverter operates seamlessly in grid-tied, off-grid, and microgrid environments while delivering exceptional flexibility and energy independence.
Featuring three MPPTs, support for high-current solar modules up to 20A, integrated 200A pass-through capability, and generator compatibility, the Solarator Series inverter simplifies installation while maximizing solar production and battery utilization. With integrated AFCI protection, NEC 2017 rapid shutdown functionality, and whole-home backup support, the S6-EH2P16K03-SV-YD-L-US delivers a complete energy management solution for modern solar installations.
Key Technology
-
48V Hybrid Architecture
Operates in on-grid, off-grid, and microgrid configurations for maximum flexibility. -
16kW Split-Phase Output
Provides full 120/240V split-phase output for whole-home backup applications. -
Three MPPT Design
Supports complex roof layouts and maximizes solar production under varying conditions. -
20A PV Input Capability
Supports modern high-current solar modules while reducing clipping losses. -
Integrated 200A Pass-Through
Built-in bypass functionality reduces external hardware requirements and installation costs. -
290A Battery Charge/Discharge Capability
Allows rapid battery charging and high-power backup operation. -
Generator Compatibility
Supports generator integration through the intelligent smart port interface. -

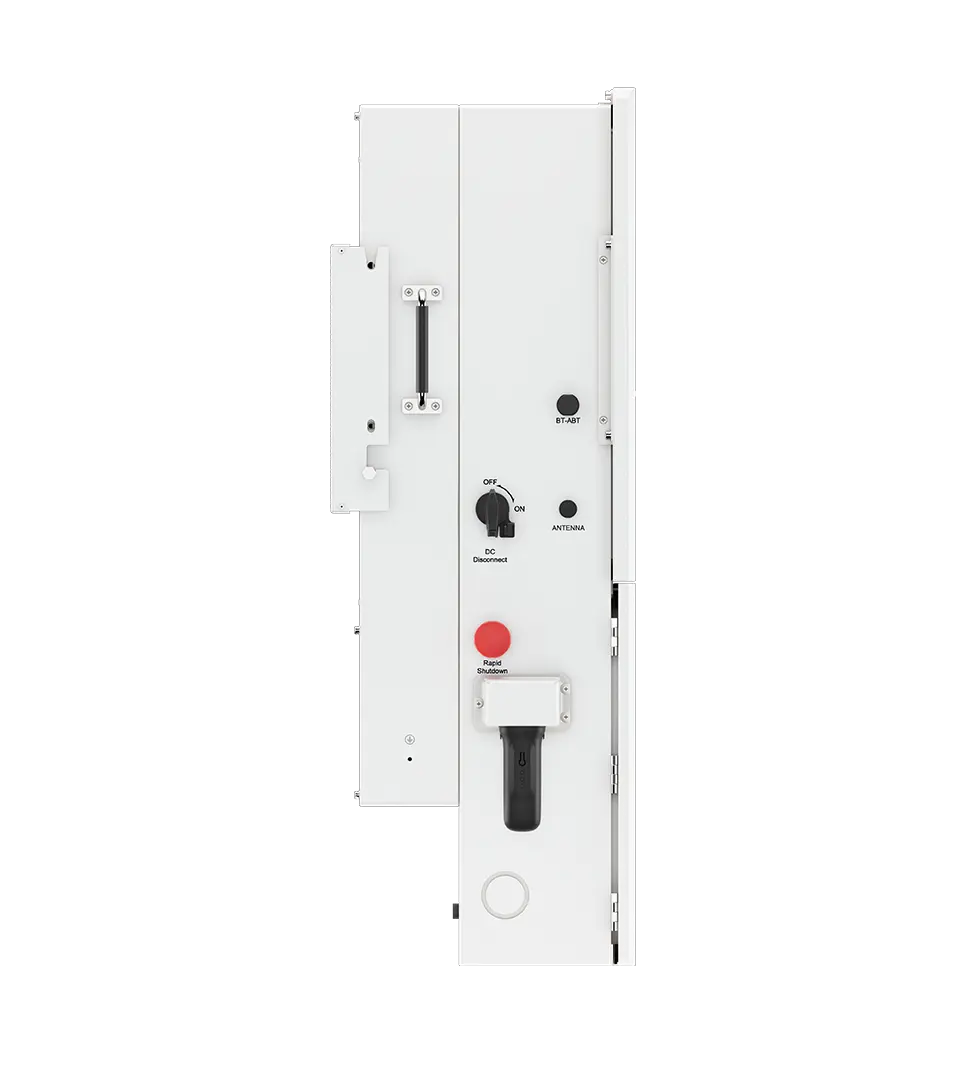

Integrated Rapid Shutdown & AFCI
Includes SunSpec-certified rapid shutdown transmitter and AFCI protection for enhanced safety.
Best Uses
-
Whole-Home Backup Systems
Provides reliable backup power during utility outages. -
Residential Solar + Storage
Ideal for homeowners seeking energy independence and self-consumption optimization. -
Generator Integrated Systems
Supports seamless operation with backup generators in areas with unstable grids. -
Off-Grid Applications
Operates independently from the utility grid for remote installations. -
Microgrid Installations
Supports advanced energy management and load prioritization.
Warranty
- Standard Warranty: 10 Years
- Maximum Efficiency: 96.02%
- CEC Efficiency: 95.45%
- Ingress Protection: Type 4X
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Solis |
| Model | S6-EH2P16K03-SV-YD-L-US |
| Series | Solarator Series |
| Product Type | Split-Phase Hybrid Inverter |
| Battery Voltage | 48V DC |
| Recommended PV Power | 25.6 kW |
| Maximum PV Input Voltage | 550V DC |
| Rated DC Voltage | 380V DC |
| Start-Up Voltage | 100V DC |
| MPPT Voltage Range | 100V - 450V DC |
| Maximum Input Current per MPPT | 40A |
| Maximum Short Circuit Current per MPPT | 50A |
| Number of MPPTs | 3 |
| Strings per MPPT | 2 |
| Battery Type | Lithium-Ion or Lead Acid |
| Battery Voltage Range | 40V - 60V |
| Maximum Battery Charge/Discharge Current | 290A |
| Battery Communication | CAN / RS485 |
| Rated AC Output Power | 16kW |
| Maximum Apparent Output Power | 16kVA |
| AC Output Voltage | 120/240V Split Phase |
| Rated Output Current | 66.7A |
| Locked Rotor Amp Rating | 200.1A |
| Backup Transfer Time | <10 ms |
| Maximum Continuous AC Pass-Through | 200A |
| Generator Input Capacity | 24kW / 100A |
| Maximum Efficiency | 96.02% |
| CEC Efficiency | 95.45% |
| Battery to AC Efficiency | 94.22% |
| Rapid Shutdown | Integrated SunSpec Certified Transmitter |
| AFCI Protection | Integrated |
| Ingress Protection | Type 4X |
| Cooling Method | Intelligent Fan Cooling |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Dimensions | 21.02 × 36.61 × 11.69 in |
| Weight | 145.06 lbs |
| Display | 7.0" LCD Display with Bluetooth + App |
| Monitoring Platform | SolisCloud |
| Communication | RS485, Optional Cellular, Wi-Fi, LAN |
| Certifications | UL1741 PVRSS, UL1699B, UL1998, UL1741 SB, IEEE1547-2018, IEEE1547.1-2020 |
About Solis:
Solis is one of the world's largest inverter manufacturers, recognized globally for delivering reliable, high-efficiency solar inverter and energy storage solutions. The company's products are engineered to support residential, commercial, and utility-scale renewable energy projects with advanced monitoring, flexible system design, and long-term reliability.
Whole-Home Backup and Energy Independence with Solarator Technology
The Solis S6-EH2P16K03-SV-YD-L-US combines high-power hybrid operation, integrated pass-through switching, generator support, rapid shutdown functionality, and advanced energy management into a powerful residential energy platform capable of supporting complete home backup and energy independence.
