Solectria 150kW (166kVA) UUX002088 XGI 1500-150/166-UL Inverter Transformerless Power Rating

Solectria 150kW (166kVA) UUX002088 XGI 1500-150/166-UL Inverter Transformerless Power Rating

Regular price $12,199
Regular price $12,666.00 -3% Sale price $12,199
4% OFF
LESS THAN 50
Leave a Review
Sale

Solectria 150kW (166kVA) UUX002088 XGI 1500-150/166-UL Inverter Transformerless Power Rating

Solectria 150kW (166kVA) UUX002088 XGI 1500-150/166-UL Inverter Transformerless Power Rating

Solectria
MPN No: UUX002088
In Stock
Regular price $12,199
Regular price $12,666.00 -3% Sale price $12,199

1
2

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date Apr 08 - 11 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $12,199
Regular price $12,666.00 -3% Sale price $12,199

Specifications

.PDF
Documents
.PDF
Documents
Data Sheet

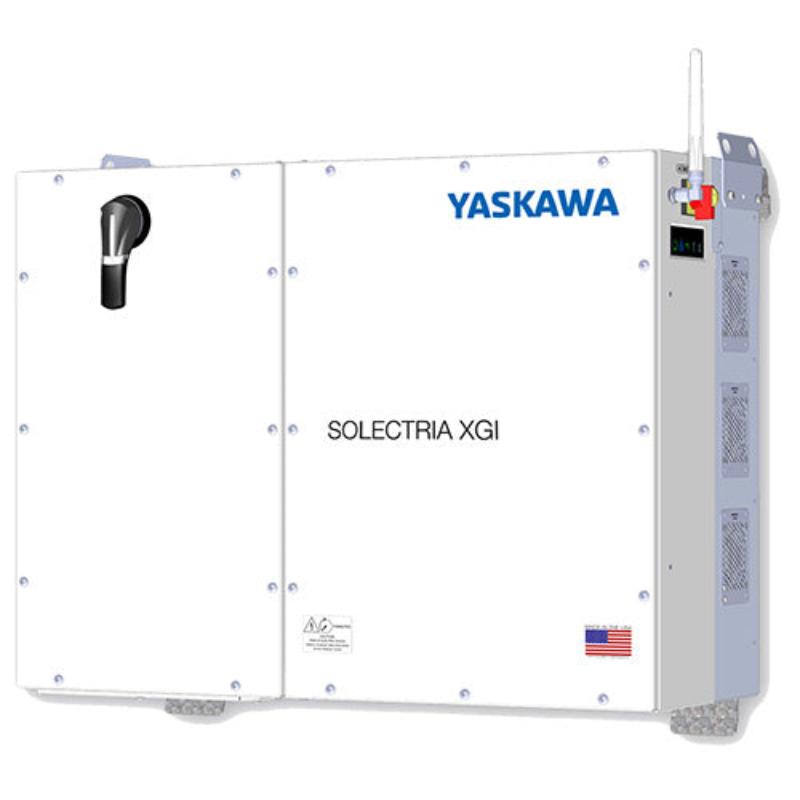

Solectria 150kW (166kVA) UUX002088 XGI 1500-150/166-UL Inverter Transformerless Power Rating

Product Overview

The Solectria XGI 1500-150/166-UL Inverter is a high-performance, transformerless inverter designed for utility-scale photovoltaic (PV) systems. With a power rating of 150 kW (real) and 166 kVA (apparent), this inverter offers superior efficiency and advanced grid-support features. It complies with the latest industry standards including IEEE 1547 and UL1741SB, and is manufactured in the USA, adhering to the Buy American Act (BAA).

Key Features

  • High Performance:
    • Rated for 150 kW real power and 166 kVA apparent power.
    • Peak efficiency of 99.0% and CEC average efficiency of 98.5%.
    • Flexible DC input voltage range of 860-1250 VDC.
  • Advanced Grid Compliance:
    • Integrated with advanced grid-support features such as Rule 21 and UL1741SB.
    • Fully compliant with UL1699b Arc-Fault Circuit Protection (optional model).
    • Power factor adjustable to ±0.80, providing greater system flexibility.
  • Durable and Reliable:
    • Type 4X, polyester powder-coated aluminum enclosure, rated for outdoor use in harsh conditions.
    • Designed for longevity with high-quality, tested components.
    • Integrated 2-pole 250 A DC disconnect for safer installation.
  • Remote Monitoring and Diagnostics:
    • Remote monitoring via WiFi, allowing access to all inverters on-site from a single location.
    • Remote diagnostics and firmware updates for easy maintenance and troubleshooting.

This Product is American Manufactured

This product was assembled in the USA or has American manufactured components. By centering significant parts of their manufacturing in the United States, they not only contribute to the creation of jobs and economic growth on American soil but also create an opportunity for you to access monetary incentives through various government programs, like the Domestic Added Content Bonus.

Domestic Added Content Bonus Eligible

The Domestic Added Content Bonus is a financial incentive designed to encourage the use of products that are primarily manufactured within the United States. This bonus is offered to promote local economic activity and support domestic manufacturing industries.

By including a higher percentage of locally sourced or produced materials in your project such as solar panels, inverters, and certain steel racking, you can reduce the upfront cost of your solar PV system.

By utilizing products that meet the eligibility criteria, homeowners and businesses can typically save up to 10% on their initial investment. This financial incentive is calculated based on the value of components that are sourced or manufactured within the United States. Therefore, the more American-made content used in your solar project, the greater the potential savings.

Applications

  • Ideal for large-scale utility solar PV installations.
  • Suitable for both centralized and distributed system architectures.
  • Supports energy storage and grid-interactive microgrid solutions.

Installation

  • Input Voltage:
    • Maximum DC input voltage of 1500 VDC with a MPPT range of 860-1250 VDC.
  • Output Voltage:
    • Nominal 600 VAC, 3-phase.
  • Operating Temperature:
    • Reliable operation in temperatures ranging from -40°F to 140°F (-40°C to 60°C), with derating above 122°F (50°C).
  • Altitude:
    • Full power operation up to 9,840 ft (3,000 m); de-rated to 70% of full power at 13,123 ft (4,000 m).

Specifications

Parameter Details
Model Name XGI 1500-150/166-UL
DC Input Voltage Max: 1500 VDC; MPPT: 860-1250 VDC
Efficiency Peak: 99.0%; CEC Average: 98.5%
AC Output 600 VAC, 3-Phase, 60 Hz
Real Power Output 150 kW
Apparent Power Output 166 kVA
Maximum Output Current 160 A
Temperature Range -40°F to 140°F (-40°C to 60°C)
Altitude Full power up to 9,840 ft (3,000 m); 70% at 13,123 ft (4,000 m)
Dimensions H: 29.5 in., W: 39.4 in., D: 15.1 in.
Weight 270 lbs
Certifications UL1741SB, UL1699b, IEEE 1547, FCC Part 15 (Class A)



Why Choose Solectria Inverters?

Solectria, a Yaskawa company, is a leading manufacturer of high-quality inverters for residential, commercial, and utility-scale solar applications. Renowned for their advanced technology, Solectria inverters are designed to enhance energy efficiency and ensure long-term performance.

Products such as the Solectria PVI and XGI series feature innovative grid-support capabilities and wide operating voltage ranges, providing flexibility and reliability for various project needs. Offering a generous 10-year warranty, with options to extend, Solectria stands behind the durability and craftsmanship of their inverters.


Domestic Added Content Bonus Eligibility

Solectria offers several inverter models that qualify for the Domestic Added Content Bonus, ensuring customers can benefit from both superior performance and added cost savings. Among these models, the Solectria XGI 1000 and XGI 1500 series stand out, designed with high percentages of domestically sourced components.

These inverters not only deliver exceptional efficiency and reliability but also contribute significantly to the support of local manufacturing industries. By selecting these eligible models, customers are able to secure additional financial incentives while benefiting from advanced solar technology that adheres to rigorous quality standards.
