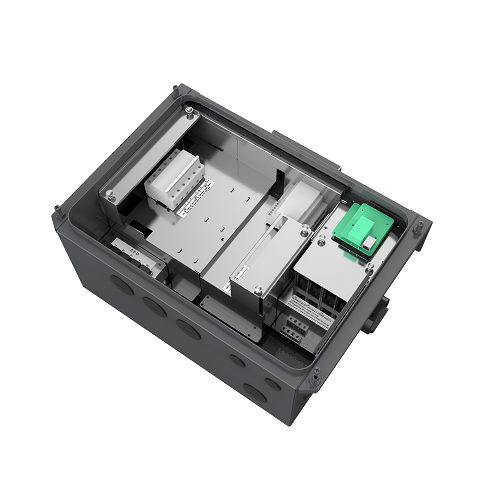

Yaskawa Solectria PVI-50-60TL-WB-APS Wiring Box

(Inverter Sold Separately)

Installation Manual

The Yaskawa Solectria PVI-50-60TL-WB-APS Wiring Box is designed for use with the PVI 50/60TL Transformerless Inverter. It features 15 fused inputs (5 per zone) with 20A fuses included, along with a PLC transmitter and a bleed-down circuit for Module-Level Rapid Shutdown when used with an APsmart Receiver.

Special Features

• Compatible with PVI 50/60TL Transformerless Inverter
• 15 fused inputs with 20A fuses (5 per zone)
• Includes PLC transmitter for communication
• Features bleed-down circuit for Module-Level Rapid Shutdown
• Designed for use with APsmart Receiver

Technology and Overview

The Yaskawa Solectria PVI-50-60TL-WB-APS Wiring Box utilizes advanced technology to provide reliable and safe electrical connections for the PVI 50/60TL Transformerless Inverter. It ensures efficient power distribution and includes features for rapid shutdown in case of emergencies or maintenance.

Installation and Compatibility

Installation of the wiring box is straightforward and compatible with the PVI 50/60TL Transformerless Inverter. It is designed to integrate seamlessly into solar PV systems, providing essential wiring connections and protection for the inverter. Additionally, it is compatible with the APsmart Receiver for Module-Level Rapid Shutdown functionality.

Benefits and Applications

The Yaskawa Solectria PVI-50-60TL-WB-APS Wiring Box offers enhanced safety and convenience for solar PV installations. It ensures reliable electrical connections and includes features for rapid shutdown to meet regulatory requirements. It is suitable for residential, commercial, and industrial solar projects.

Product Specifications
