Yaskawa Solectria PVI-50-60TL-BX-R Wire Box for PVI-50TL/60TL Inverters

Installation Manual

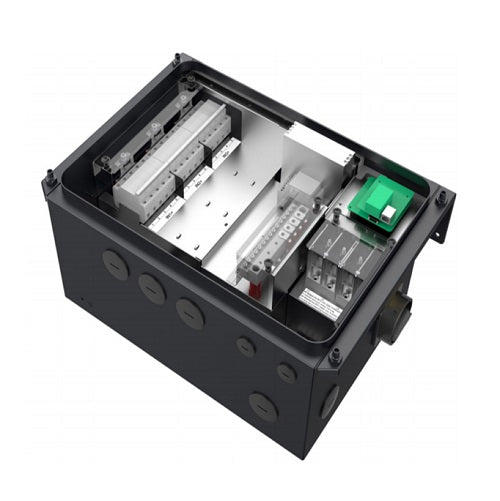

The Yaskawa Solectria PVI-50-60TL-BX-R Wire Box is a specialized enclosure designed to enhance the functionality of PVI-50TL/60TL inverters. Its unique design and features make it an essential component for solar PV installations.

Special Features

• 15 fused inputs (5 per zone)
• 15A fuses for each input
• Includes PLC transmitter
• Bleed-down circuit for Module-level RSS with Tigo TS4-F, TS4-A-F (ver 6.7+)
• Compatible with PVI-50TL/60TL inverters

Technology and Overview

The wire box incorporates advanced technology to ensure optimal performance and safety. It features 15 fused inputs with 15A fuses for overcurrent protection. Additionally, it includes a PLC transmitter for communication purposes and a bleed-down circuit for seamless integration with Tigo TS4-F and TS4-A-F devices (version 6.7 or later) for module-level RSS functionality.

Installation and Compatibility

Installation of the wire box is straightforward, with 5 fused inputs per zone for organized wiring configurations. It is specifically designed for use with PVI-50TL/60TL inverters and is compatible with Tigo TS4-F and TS4-A-F devices (version 6.7 or later) for module-level RSS functionality.

Benefits and Applications

The Yaskawa Solectria PVI-50-60TL-BX-R Wire Box offers numerous benefits, including enhanced safety, communication capabilities, and compatibility with Tigo RSS devices. It facilitates seamless integration and operation of solar PV systems, making it suitable for residential, commercial, and industrial applications.

Product Specifications
