Yaskawa Solectria PVI-25TL-208WB-TGO Wire Box

Installation Manual

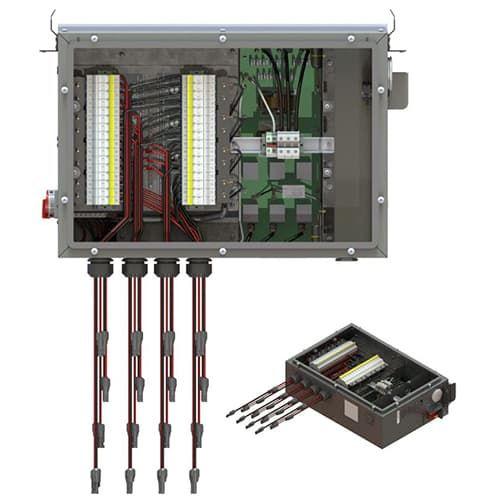

The Yaskawa Solectria PVI-25TL-208WB-TGO Wire Box is specifically designed for use with the PVI-25TL-208 Inverter. It features 6 fused inputs, with 2 fuses per zone, each rated at 20A. The wire box includes a PLC transmitter and a bleed-down circuit to enable Module-level Rapid Shutdown functionality with Tigo TS4-F, TS4-A-F (ver 6.7+), and TS4-A-2F modules.

Special Features

• Designed for use with PVI-25TL-208 Inverter
• 6 fused inputs with 20A fuses (2 per zone)
• Includes PLC transmitter for communication
• Equipped with bleed-down circuit for Module-level RSS
• Compatible with Tigo TS4-F, TS4-A-F (ver 6.7+), and TS4-A-2F modules

Technology and Overview

The Yaskawa Solectria PVI-25TL-208WB-TGO Wire Box employs advanced technology to provide safe and efficient wiring connections for the PVI-25TL-208 Inverter. It ensures proper power distribution and facilitates communication with external devices for enhanced functionality.

Installation and Compatibility

Installation of the wire box is straightforward and compatible with the PVI-25TL-208 Inverter. It is designed to integrate seamlessly into solar PV systems, providing essential wiring connections and protection for the inverter. Additionally, it is compatible with Tigo TS4-F, TS4-A-F (ver 6.7+), and TS4-A-2F modules for Module-level Rapid Shutdown functionality.

Benefits and Applications

The Yaskawa Solectria PVI-25TL-208WB-TGO Wire Box offers enhanced safety and functionality for solar PV installations. It ensures reliable electrical connections and includes features for rapid shutdown to meet regulatory requirements. It is suitable for residential, commercial, and industrial solar projects.

Product Specifications
