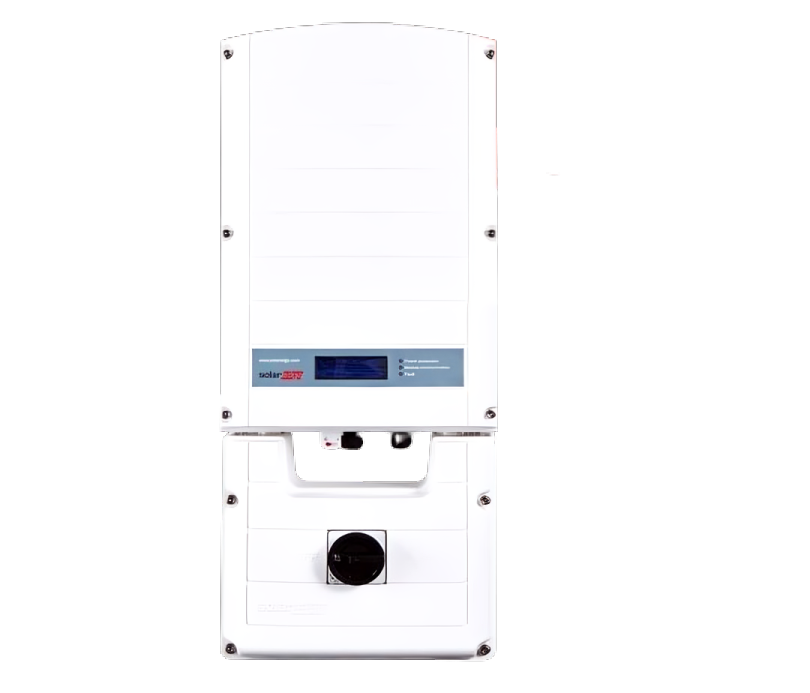

SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
SE9KUS
Specifications
SolarEdge SE9KUS 208V Grid-Tie Three Phase String Inverter
Introducing the SolarEdge SE9KUS, a high-performance 208V grid-tie three-phase string inverter, designed for optimal efficiency and reliability in commercial solar energy systems. This inverter is engineered to work seamlessly with SolarEdge power optimizers, offering advanced safety features and easy monitoring.
- Optimized for use with SolarEdge power optimizers.
- Features integrated arc fault protection and rapid shutdown for enhanced safety.
- UL1741 SA certified, meeting CPUC Rule 21 grid compliance standards.
- Compact, lightweight design enables easy installation either outdoors or indoors.
- Supports Ethernet or wireless connectivity for straightforward system monitoring.
Technology and Overview
The SE9KUS utilizes fixed voltage technology, allowing for longer string lengths and increased system flexibility. It includes built-in module-level monitoring and comes equipped with RS485 Surge Protection, enhancing system resilience against lightning events.
Installation and Compatibility Overview
With its small footprint and lightweight design, the SE9KUS offers versatile mounting options and a user-friendly installation process. It's designed to facilitate both outdoor and indoor installations, accommodating various project requirements.
Benefits and Applications Overview
The SE9KUS inverter not only increases the efficiency of solar energy systems but also ensures their safe operation. Its advanced monitoring capabilities allow for real-time system management and performance optimization, suitable for a wide range of commercial applications.
Specifications
| Specification | Value |
| Model No. Model No. (APPLICABLE TO INVERTERS WITH PART NUMBER - SEXXK-XXXXXNXXX) | SE9KUS |
| Rated AC Power Output | 9000 VA |
| Maximum AC Power Output | 9000 VA |
| AC Output Line Connections | 4-wire WYE (L1-L2-L3-N) plus PE or 3 wire Delta |
| AC Output Voltage Minimum-Nominal-Maximum(2) (L-N) | 105-120-132.5 Vac |
| AC Output Voltage Minimum-Nominal-Maximum(2) (L-L) | 183-208-229 Vac |
| AC Frequency Min-Nom-Max(2) | 59.3 - 60 - 60.5 Hz |
| Max. Continuous Output Current (per Phase) | 25 A |
| GFDI Threshold | 1 |
| Utility Monitoring, Islanding Protection, Country Configurable Set Points | Yes |
| Maximum DC Power (Module STC) | 12150 W |
| Transformer-less, Ungrounded | Yes |
| Maximum Input Voltage DC to Gnd | 250 Vdc |
| Maximum Input Voltage DC+ to DC- | 500 Vdc |
| Nominal Input Voltage DC to Gnd | 200 Vdc |
| Nominal Input Voltage DC+ to DC- | 400 Vdc |
| Maximum Input Current | 26.5 Adc |
| Maximum Input Short Circuit Current | 45 Adc |
| Reverse-Polarity Protection | Yes |
| Ground-Fault Isolation Detection | 1M? Sensitivity |
| CEC Weighted Efficiency | 1.0 |
| Night-time Power Consumption | < 3 W |
| Supported Communication Interfaces | RS485, Ethernet, ZigBee (optional) |
| Rapid Shutdown – NEC 2014 and 2017 690.12 | Automatic Rapid Shutdown upon AC Grid Disconnect |
| RS485 Surge Protection | Supplied with the inverter |
| Safety | UL1741, UL1741 SA, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07 |
| Grid Connection Standards | IEEE1547, Rule 21, Rule 14 (HI) |
| Emissions | FCC part15 class B |
| AC output conduit size / AWG range | 3/4” minimum / 12-6 AWG |
| DC input conduit size / AWG range | 3/4” minimum / 12-6 AWG |
| Number of DC inputs | 2 pairs |
| Dimensions (H x W x D) | 21 x 12.5 x 10.5 in / 540 x 315 x 260 mm |
| Dimensions with Safety Switch (H x W x D) | 30.5 x 12.5 x 10.5 in / 775 x 315 x 260 mm |
| Weight | 73.2 lb / 33.2 kg |
| Weight with Safety Switch | 79.7 lb / 36.2 kg |
| Cooling | Fans (user replaceable) |
| Noise | < 50 Dba |
| Operating Temperature Range | -40 to +140 / -40 to +60(5) ?F / ?C |
| Protection Rating | NEMA 3R |
| Warranty | 12 years. Extendable to 20 Years |
