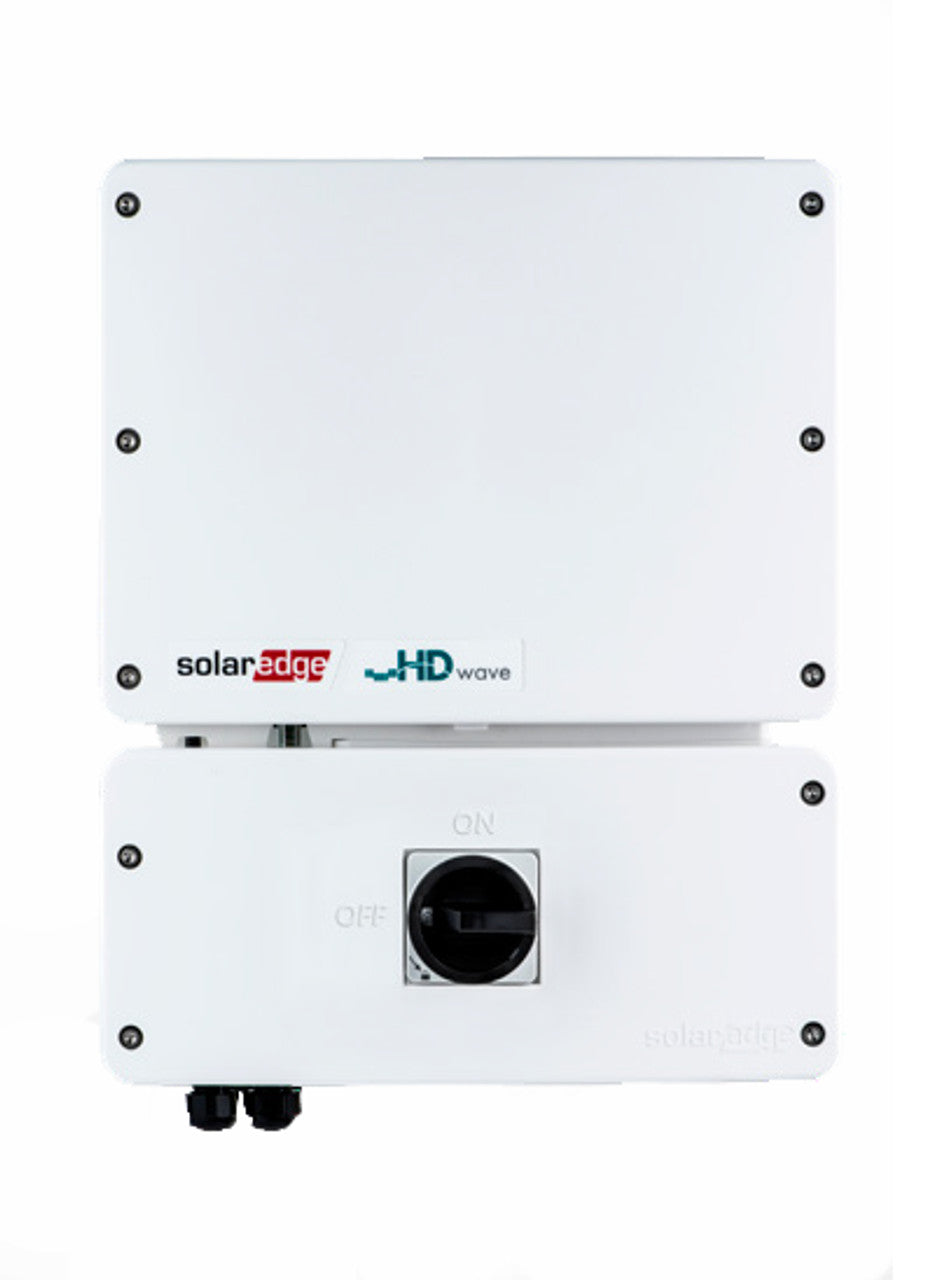

SolarEdge SE7600H-US Single Phase Hub Inverter with HD-Wave Technology

SolarEdge SE7600H-US Single Phase Hub Inverter with HD-Wave Technology

Regular price $2,900
Sale price $2,900 Regular price
SOLD OUT
Leave a Review

MPN No: SE7600H-US

SolarEdge SE7600H-US Single Phase Hub Inverter with HD-Wave Technology

SolarEdge SE7600H-US Single Phase Hub Inverter with HD-Wave Technology

Regular price $2,900
Sale price $2,900 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
SolarEdge
Manufacturer
SolarEdge
Weight
44.9 lb
Dimension
21.06 x 14.6 x 8.2 inches

SolarEdge SE7600H-US Single Phase Hub Inverter with HD-Wave Technology

Introducing the SolarEdge SE7600H-US, the pinnacle of inverter technology for residential solar systems. This single-phase hub inverter incorporates HD-Wave Technology, setting a new standard for efficiency and reliability. Its compact, lightweight design simplifies installation, making it an ideal choice for homeowners looking to maximize their solar investment.

  • Record-breaking 99% weighted efficiency and 200% DC oversizing capability.
  • Seamless integration with SolarEdge energy storage, EV charger, and home energy management solutions.
  • Modular design allows for future upgrades, including DC-coupled storage for full or partial home backup.
  • Enhanced safety with integrated arc fault protection and rapid shutdown compliance.
  • Multi-inverter scalability for storage solutions, enhancing battery power up to 10kW.

Technology and Overview

The SE7600H-US leverages HD-Wave Technology to achieve unprecedented efficiency, reducing heat and extending the inverter's lifespan. Its smart energy management capabilities enable optimized battery storage, direct EV charging, and consumption monitoring for a fully integrated smart home experience.

Installation and Compatibility Overview

Designed for easy installation and flexibility, the SE7600H-US supports both indoor and outdoor setups. It offers direct connection to the SolarEdge Home Network for a streamlined energy management system.

Benefits and Applications Overview

With its advanced technology, the SE7600H-US inverter offers significant cost savings by maximizing solar energy production. It supports environmental sustainability efforts and is adaptable for various applications, including battery storage and EV charging.

Specifications

Specification Value
Model No. (Applicable to inverters with part number - SEXXXXH-USSNBBXXX) SE7600H-US
Rated AC Power (208V / 240V) 7600 W
Maximum AC Power Output (208V / 240V) 7600 W
AC Output Voltage (Nominal) 208 / 240 Vac
AC Output Voltage (Range) 183 – 264 Vac
AC Frequency Range (min - nom - max) 59.3 – 60 – 60.5(2) Hz
Maximum Continuous Output Current @ 240V 32 A
GFDI Threshold 1 A
Total Harmonic Distortion (THD) < 3 %
Power Factor 1, adjustable -0.85 to 0.85
Utility Monitoring, Islanding Protection, Country Configurable Thresholds Yes
Charge Battery from AC (if allowed) Yes
Typical Nighttime Power Consumption < 2.5 W
Rated AC Power in Backup Operation 7600 W
11,400 W
AC L-L Output Voltage Range in Backup 211 – 264 Vac
AC L-N Output Voltage Range in Backup 105 – 132 Vac
AC Frequency Range in Backup (min - nom - max) 55 – 60 – 65 Hz
Maximum Continuous Output Current in Backup Operation 32
47.5 A
GFDI 1 A
THD < 5 %
Rated AC Power 9600 W
AC Output Voltage Range 211 – 264 Vac
On-Grid AC Frequency Range (min - nom - max) 59.3 – 60 – 60.5 Hz
Maximum Continuous Output Current @240V (grid, PV and battery) 40 Aac
Transformer-less, Ungrounded Yes
Max Input Voltage 480 Vdc
Nom DC Input Voltage 380 Vdc
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection 600k? Sensitivity
Maximum DC Power @ 240V 15200 W
Maximum Input Current(4) @ 240V 20 Adc
30 Adc
Max. Input Short Circuit Current 45
Maximum Inverter Efficiency 99.20%
CEC Weighted Efficiency 99.00%
2-pole Disconnection Yes
Supported Battery Types SolarEdge Home Battery, LG RESU Prime
Number of Batteries per Inverter Up to 3 SolarEdge Home Battery, up to 2 LG RESU Prime
Continuous Power(5) (208 / 240) 11400 W
Peak Power(5) (208 / 240) 11400 W
Max Input Current 26.5 Adc
2-pole Disconnection Up to inverter rated backup power
Consumption Metering Built-in(6)
Backup & Battery Storage With Backup Interface (purchased separately) for service up to 200A; up to 3 inverters
EV Charging Direct connection to SolarEdge Home EV Charger
Supported Communication Interfaces RS485, Ethernet, Cellular(7, 8), Wi-Fi(8), SolarEdge Home Network
Revenue Grade Metering, ANSI C12.20 Built-in(6)
Integrated AC, DC and Communication Connection Unit Yes
Inverter Commissioning With the SetApp mobile application using built-in Wi-Fi Access Point for local connection
DC Voltage Rapid Shutdown (PV and Battery) Yes, according to NEC 2014 – 2023 per article 690.11 and article 690.12
Safety UL 1741, UL 1741SA, UL 1741SB, UL 1699B, CSA 22.2#107.1, C22.2#330, C22.3#9, ANSI/CAN/UL 9540
Grid Connection Standards IEEE 1547 and IEEE 1547.1, Rule 21, Rule 14H
Emissions FCC Part 15 Class B
AC Output and EV AC Output Conduit Size / AWG Range 1'' maximum / 14 – 4 AWG
DC Input (PV and Battery) Conduit Size / AWG Range 1'' maximum / 14 – 6 AWG
Dimensions with Connection Unit (H x W x D) 17.7 x 14.6 x 6.8 in / 450 x 370 x 174 mm
Weight with Connection Unit 30.8 lb / 14 kg
44.9 lb / 20.3 kg
Noise < 50 dBA
Cooling Natural Convection
Operating Temperature Range (-) 40 to (+) 140 / (-) 40 to (+)60(9) ?F / ?C
Protection Rating NEMA 4X
Warranty 12 years. Extendable to 20 Years
