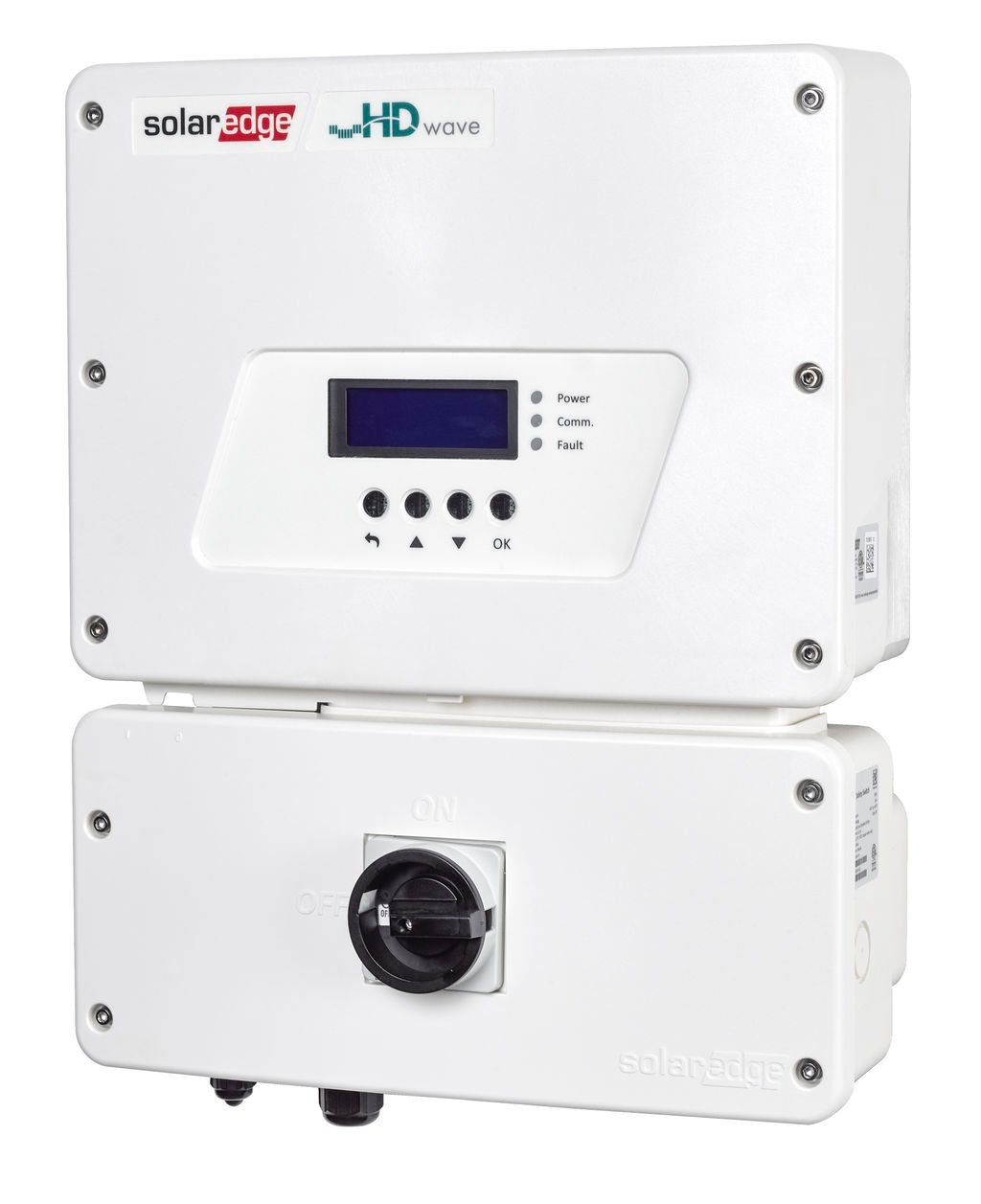

SolarEdge SE6000H-US Single Phase String Inverter with HD-Wave Technology

$2,099

-% $2,099

SOLD OUT

Leave a Review

SolarEdge SE6000H-US Single Phase String Inverter with HD-Wave Technology

SolarEdge

MPN No: SE6000H-US

Out Of Stock

$2,099

-% $2,099

Delivery

Payment

We offer multiple secure payment options for your convenience

All SolarEdge products All Inverters products

View full details

$2,099

-% $2,099

SolarEdge SE6000H-US Single Phase String Inverter with HD-Wave Technology

MPN No:

SE6000H-US

Out Of Stock

$2,099

-% $2,099

Sold out

.PDF

Datasheet

SolarEdge SE6000H-US Single Phase String Inverter with HD-Wave Technology

Meet the SolarEdge SE6000H-US, a groundbreaking single-phase string inverter enhanced with the innovative HD-Wave Technology. This high-performance inverter is tailored for residential solar installations, offering superior efficiency, a compact design, and advanced monitoring capabilities.

State-of-the-art 99% weighted efficiency for unparalleled performance.
Optimized for seamless operation with SolarEdge power optimizers.
Integrated safety features including arc fault protection and rapid shutdown.
Flexible installation options for both indoor and outdoor setups.
Built-in module-level monitoring for real-time performance insights.

Technology and Overview

The SE6000H-US leverages HD-Wave Technology to significantly reduce size and weight while maintaining high efficiency and clean energy output. Its smart energy management capabilities ensure optimized energy production and consumption.

Installation and Compatibility Overview

Designed with ease of installation in mind, the SE6000H-US offers versatility for various mounting positions and is compatible with SolarEdge's comprehensive monitoring platform for enhanced energy oversight.

Benefits and Applications Overview

Maximize your solar investment with the SE6000H-US, which offers significant cost savings through increased energy production, contributing to a more sustainable and efficient energy future.

Specifications

Model No.

SE6000H-US

Rated AC Power Output

6000 @ 240V
5000 @ 208V

Maximum AC Power Output

6000 @ 240V
5000 @ 208V

AC Output Voltage Min.-Nom.-Max.

211 - 240 - 264 Vac

AC Output Voltage Min.-Nom.-Max.

183 - 208 - 229 Vac

AC Frequency (Nominal)

59.3 - 60 - 60.5⁽¹⁾ Hz

Maximum Continuous Output Current @240V

25 A

Maximum Continuous Output Current @208V

24 A

GFDI Threshold

1 A

Utility Monitoring, Islanding Protection,
Country Configurable Thresholds

Yes

Maximum DC Power @240V

9300 W

Maximum DC Power @208V

7750 W

Transformer-less, Ungrounded

Yes

Maximum Input Voltage

480 Vdc

Nominal DC Input Voltage

380 Vdc

Maximum Input Current @240V⁽²⁾

16.5 Adc

Maximum Input Current @208V⁽²⁾

13.5 Adc

Max. Input Short Circuit Current

45 Adc

Reverse-Polarity Protection

Yes

Ground-Fault Isolation Detection

600k Sensitivity

Maximum Inverter Efficiency

99.20%

CEC Weighted Efficiency

99%

Nighttime Power Consumption

< 2.5 W

Supported Communication Interfaces

RS485, Ethernet, ZigBee (optional), Cellular (optional)

Revenue Grade Data, ANSI C12.20

Optional⁽³⁾

Rapid Shutdown - NEC 2014 and 2017 690.12

Automatic Rapid Shutdown upon AC Grid Disconnect

Safety

UL1741, UL1741 SA, UL1699B, CSA C22.2, Canadian AFCI according to T.I.L. M-07

Grid Connection Standards

IEEE1547, Rule 21, Rule 14 (HI)

Emissions

FCC Part 15 Class B

AC Output Conduit Size / AWG Range

1" Maximum / 14-6 AWG

DC Input Conduit Size / # of Strings / AWG Range

1" Maximum / 1-2 strings / 14-6 AWG

Dimensions with Safety Switch (HxWxD)

17.7 x 14.6 x 6.8 in / 450 x 370 x 174 mm

Weight with Safety Switch

26.2 lb / 11.9 kg

Noise

< 25 dBA

Cooling

Natural Convection

Operating Temperature Range

-13 to +140 / -25 to +60⁽⁴⁾(-40?F / -40?C option)⁽⁵⁾

Protection Rating

NEMA 4X (Inverter with Safety Switch)

Warranty

12 years. Extendable to 25 Years
